  11. Power Conditioner, 20A Max Amps, 120V Input Voltage, 120V Output Voltage, 2,400 W Output Watts

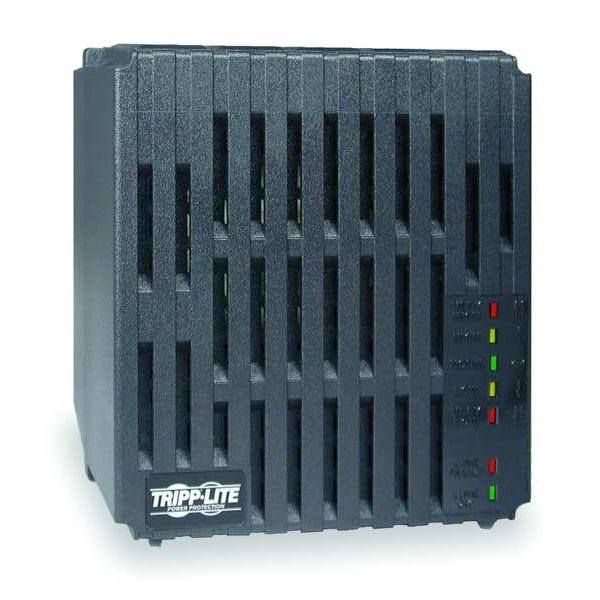

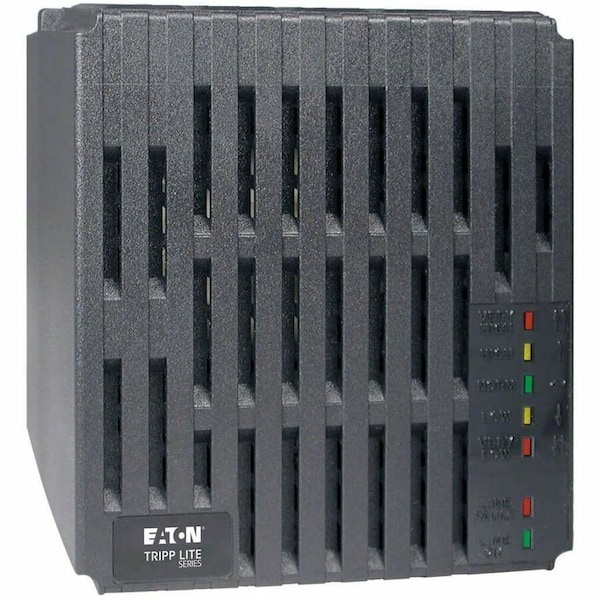

Tripp Lite Power Conditioner, 20A Max Amps, 120V Input Voltage, 120V Output Voltage, 2,400 W Output Watts LC 2400 - main

Power Conditioner, 20A Max Amps, 120V Input Voltage, 120V Output Voltage, 2,400 W Output Watts

  • Mfr # LC 2400

  • Zoro # G2915367

product price: $397.99
/ea
Free Shipping & Returns

Key Features

Max. Amps
20A
Input Voltage
120V
Output Voltage
120V
Power Rating
2.4kVA
Hardwired/Corded
Corded
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC 2400
Zoro #
G2915367
UPC #
037332040060
Country of Origin
China

Dimensions

Height
7 in
Depth
9 1/2 in
Width
6 in
Cord Length
6 ft

Details

Item
Power Conditioner
Max. Amps
20A
Input Voltage
120V
Output Voltage
120V
Power Rating
2.4kVA
Output Watts
2,400 W
Hardwired/Corded
Corded
Phase
1
Voltage Regulation %
-10, +16%, +9%
Number of Outlets
6
NEMA Plug Configuration
5-15P
NEMA Receptacle Configuration
5-15/20R, 5-15R
Features
LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status
Mounting Type
Wall Mount
Standards
RoHS
Front Panel LEDs
7 LEDs show incoming voltage status, protection present and line fault conditions
EMI / RFI AC Noise Suppression
80 dB
Overvoltage Correction
Input voltages over 128V (+/-3V) are reduced by 10%
Form Factors Supported
Small Tower
Brownout Correction
Input voltages between 111V (+/-3V) and 103V (+/-3V) are boosted by 9%.
Output Capacity Details
Supports 120V 20A 2400W intermittent and 16A 1920W continuously when connected to a 120V 20A rated circuit; Supports 120V 15A 1800W intermittent and 12A 1440W continuously when connected to a 120V 15A rated circuit
Voltage Regulation Description
Maintains usable 120V nominal voltage during brownouts as low as 89VAC and over-voltages as high as 147VAC. Input voltages between 112V~127V are passed through unchanged.
Input Cord Details
Optional wireable 5-20P input plug is included for use with 120V 20A circuit applications
Severe Brownout Correction
Input voltages below 102V (+/-3V) are boosted by 19%.
Additional Information
Voltage Regulation: +10%/-12%, Input voltages over 128V are reduced by 9.6%, Input voltages between 103 and 112V are boosted by 8.9%, Input voltages below 102V are boosted by 18.8%, Network grade AC surge suppressionMaintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, point-of-sale equipment, and other applications requiring clean, regulated AC power.
Package Contents
LC2400 2400W Mini Tower Line Conditioner, LC2400 Line Conditioner, Instruction manual
Protection Type
Over Voltage, Brownout, Surge, EMI / RFI
Load Capacity (VA)
2400 W
Product Name
LC2400 2400W Mini Tower Line Conditioner
Form Factor
Mini-tower
Manufacturer Warranty
2 yr Limited
Surge Suppression Rating
1,440 J
Maximum Current
20 A
Housing Material
Plastic
Frequency
60 Hz
Voltage Regulation
9%; -10%; 19%

Description

Power Conditioner, Mounting Type Wall Mount, Max. Amps 20A, Input Voltage 120V AC, Output Voltage 120V, Power Rating 2.4kVA, Output Watts 2,400 W, Corded, Width 6 in, Depth 9 1/2 in, Height 7 in, Phase Single, Voltage Regulation Percent -10, +16 Percent, +9 Percent, Cord Length 6 ft, Number of Outlets 6, NEMA Plug Configuration 5-15P, NEMA Receptacle Configuration (2) 5-15/20R, (4) 5-15R, Features LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status, Standards RoHS
