  5. Power Inverter and Battery Charger, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 1 Outlets

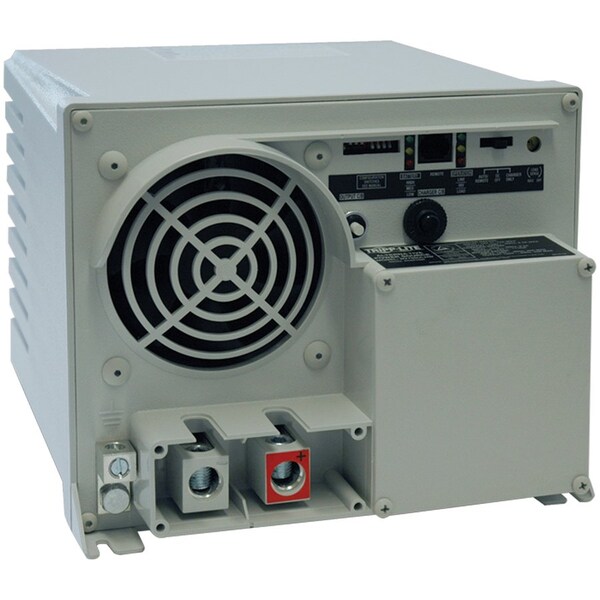

Tripp Lite Power Inverter and Battery Charger, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 1 Outlets RV750ULHW - main

Power Inverter and Battery Charger, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 1 Outlets

  • Mfr # RV750ULHW

  • Zoro # G4403411

product price:  $643.99
/ea
Free Shipping & Returns

Key Features

Continuous Output Power
750 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC; 120V AC
Inverter Output Voltage
120V AC
Outlet Type
Hardwired
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
RV750ULHW
Zoro #
G4403411
UPC #
037332121639
Country of Origin
China

Dimensions

Charger Depth
9 in
Depth
9"
Charger Width
8.8 in
Inverter Width
8.7 in
Inverter Depth
9 in
Inverter Height
7 in
Width
8-3/4"
Charger Height
7 in
Height
7"
Unit Dimensions (hwd / in.)
7.000 x 8.750 x 9.000
Input Cord Length Details
DC INPUT: User supplies cabling. 6 gauge or larger (see manual). AC INPUT: hardwire

Details

Item
Power Inverter and Battery Charger
Peak Output Power
1,500 W
Continuous Output Power
750 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC; 120V AC
Inverter Output Voltage
120V AC
Outlet Type
Hardwired
DC Connection
Bolt Down Terminals
Number of Outlets
1
Case Material
Polycarbonate
Standards
CSA, UL458
Features
Automatic Overload and Thermal Shutoff Safely Turns Off Inverter as Excessive Loads or Overheating Conditions Develop, Front Panel Remote Control Connector Enables Remote Off/on Switching (Requires Apsrm4 Switch Accessory), Grounding Lug Properly Connects the Inverter/Charger System to Earth Ground or Vehicle Grounding System
Max. Input Current
Full continuous load - 72 A at 12V DC; 29 A at 120V AC with full inverter and charger load
Automatic/Manual
Automatic
Charger Output Amps
45 A
Charger Input Voltage
120V AC
Charger Output Voltage
120V
Application
RV Applications
Nominal Output Power
750 W
Inveter Output Voltage
120V
Output Frequency
60 Hz
Input Voltage
12VDC
Charger Input Current
9.3 A
Output Voltage
115VAC
Charger Output Current
45 A
Maximum Frequency
60 Hz
Product Color
Gray
Product Name
RV750ULHW 750W DC-to-AC Power Inverter
Package Contents
RV750ULHW 750W DC-to-AC Power Inverter, RV750ULHW Inverter/Charger, Instruction manual with warranty information
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery (optional)
LVC (Low Voltage Cut-Off)
10VDC +/-3%
Relative Humidity
0%-95% Non-Condensing
Material of Construction
Polycarbonate
Recommended Electrical Service
DC INPUT: Requires 12V DC input source capable of delivering 73A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation).
Low Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
Load Sensing
Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
Form Factors Supported
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Nominal Input Voltage(s) Supported
120V AC
AC Suppression Joule Rating
450
Nominal Output Voltage(s) Supported
120V
Frequency Compatibility
60 Hz
DC System Voltage (VDC)
12
Battery Charge
11A / 45A (selectable)
Voltage Compatibility (VDC)
12
Voltage Compatibility (VAC)
120
Product Certifications
CSA (Canada); UL 458
Output Receptacles
Hardwire
Overload Protection
Includes 10A input breaker dedicated to the charging system
Package Includes
RV750ULHW Inverter/Charger;Instruction manual with warranty information
Output Voltage Regulation
LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
Maximum Input Amps / Watts
DC INPUT: Full continuous load - 72A at 12V DC. AC INPUT: 29 amps at 120V AC with full inverter and charger load (9.3A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output.
Front Panel LEDs
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Transfer Time (Line Power to Battery Mode)
16.6 milliseconds (typical - compatible with many computers - verify transfer time compatibility of loads for UPS applications)
High Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 145V
Switches
3-position on/off/remote switch enables simple on/off power control plus auto/remote setting that enables distant on/off control of the inverter system when used in conjunction with APSRM4 accessory (sold separately) in inverter mode. In AC uninterruptibl
Expandable Runtime
Yes
Output Frequency Regulation
60 Hz (+/- 0.3 Hz)
Cooling Method
Fan

Description

Inverter and Battery Charger, Inverter Output Form Modified Sine Wave, DC Connection 2 Bolt-Down Terminals, Peak Output Power 1,500 W, Inverter Input Voltage 120V AC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Case Material Polycarbonate, Cooling Method Fan, Application RV Applications
