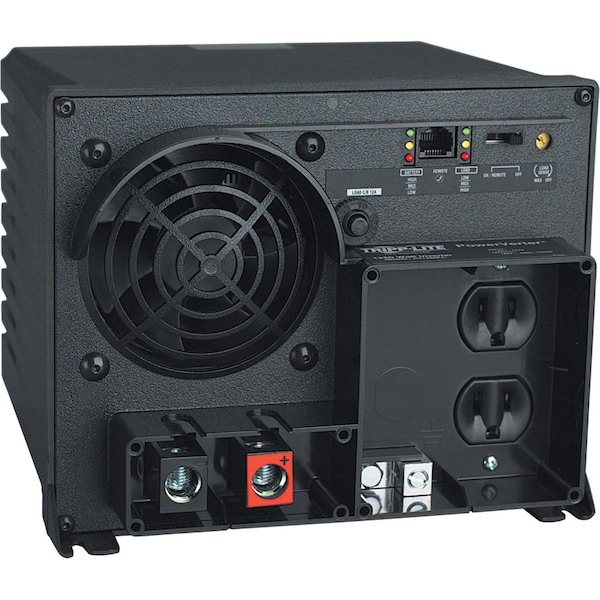

Power Inverter, Modified Sine Wave, 2,500 W Peak, 1,250 W Continuous, 2 Outlets

  • Mfr # PV1250FC
  • Zoro # G2450077
product price:
$
567.99
/ea
Free Shipping & Returns

Key Features

Peak Output Power
2,500 W
Continuous Output Power
1,250 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC
Inverter Output Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PV1250FC
Zoro #
G2450077
UPC #
037332124241
Country of Origin
China

Dimensions

Depth
9"
Height
7"
Width
8 3/4 in
Unit Dimensions (hwd / in.)
7.000 x 8.750 x 9.000
Input Cord Length Details
User supplies cabling. 4 gauge or larger recommended.

Details

Item
Power Inverter
Peak Output Power
2,500 W
Continuous Output Power
1,250 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC
Inverter Output Voltage
115V AC
Outlet Type
Standard 3-Prong Outlet
DC Connection
Input Terminals
Number of Outlets
2
Nominal Output Power
1250W
Case Material
Polycarbonate
Max. Input Current
Full continuous load - 127 A at 12V DC; No load - 2.2 A at 12V DC
Features
Overload Protection
Inveter Output Voltage
120V
Output Frequency
60 Hz
Input Voltage
12VDC
Output Voltage
115VAC
Number of USB Ports
0
Package Contents
PowerVerter Plus PV1250FC Inverter, PV1250FC inverter, Instruction manual
Input Voltage Range
10 V DC - 15 V DC
Product Name
PowerVerter Plus PV1250FC Inverter
Product Series
Plus
Maximum Frequency
60 Hz
Product Line
PowerVerter
Overload Protection
Circuit breaker
DC System Voltage (VDC)
12
Nominal Output Voltage(s) Supported
120V
Frequency Compatibility
60 Hz
Switches
3 position on/off/remote switch enables simple on/off power control plus "remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APRM4 remote
Front Panel LEDs
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Form Factors Supported
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Output Voltage Regulation
Maintains PWM sine wave output voltage of 120 VAC (+/-5%)
Relative Humidity
0%-95% Non-Condensing
Material of Construction
Polycarbonate
Recommended Electrical Service
Requires 12V DC input source capable of delivering 127A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 200A battery system fusing is recommended.
Output Frequency Regulation
60 Hz (+/- 0.3 Hz)
Output Receptacles
(2) 5-15R
Voltage Compatibility (VDC)
12
Package Includes
PV1250FC inverter;Instruction manual
Maximum Input Amps / Watts
Full continuous load - 127A at 12V DC, No load - 2.2A at 12V DC

Description

Inverter, DC Connection Input Terminals, Continuous Output Power 1,250 W, Peak Output Power 1,250 W, Number of Outlets 2, Input Voltage 12VDC, Output Voltage 115VAC, Outlet Type Standard 3-Prong Outlet, Case Material Polycarbonate
