- Item
- Power Inverter and Battery Charger
- Peak Output Power
- 2,500 W
- Continuous Output Power
- 1,250 W
- Inverter Output Form
- Modified Sine Wave
- Inverter Input Voltage
- 12V DC; 120V AC
- Inverter Output Voltage
- 120V AC
- Outlet Type
- Standard 3-Prong Outlet
- DC Connection
- Bolt Down Terminals
- Number of Outlets
- 2
- Case Material
- Polycarbonate
- Charger Output Amps
- 30 A
- Automatic/Manual
- Automatic
- Features
- Automatic Transfer Switching, Emergency and Remote Sites, Front Panel Leds, Meets Normal and Peak Power Demands, Optional Remote Control Capability, Reliable Power for Mobile, Rugged Polycarbonate Housing
- Charger Output Voltage
- 120V
- Charger Input Voltage
- 120V AC
- Max. Input Current
- Full continuous load - 127 A at 12V DC; 12 A at 120V AC with full inverter and charger load
- Application
- Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
- Nominal Output Power
- 1,250 W
- Inveter Output Voltage
- 120V AC
- Output Frequency
- 60 Hz
- Output Voltage
- 115VAC
- Charger Input Current
- 6.3 A
- Input Voltage
- 12VDC
- Charger Output Current
- 30 A
- Product Line
- PowerVerter
- Maximum Frequency
- 60 Hz
- Package Contents
- PowerVerter APS 1250W Inverter, APS1250 Inverter/Charger, Instruction manual with warranty information
- Product Color
- Black
- Product Name

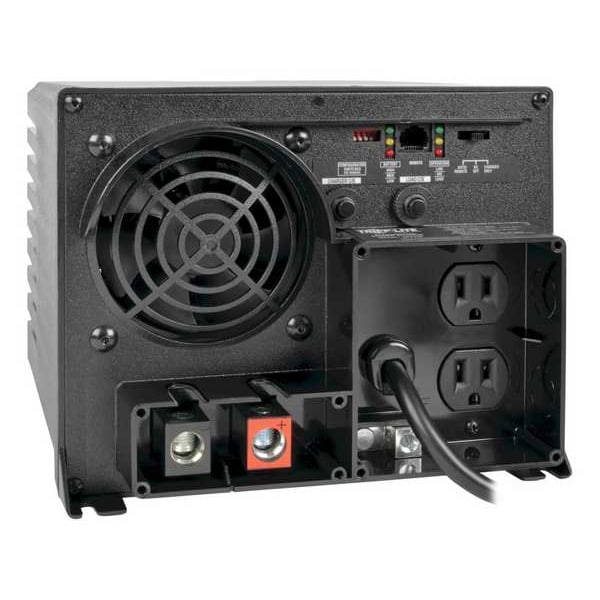

- PowerVerter APS 1250W Inverter
- Product Series
- APS
- Protection Type
- Overload Protection
- Maximum Input Amps / Watts
- DC INPUT: Full continuous load - 127A at 12V DC. AC INPUT: 12 amps at 120VAC with full inverter and charger load (6.3A max charger-only)
- Voltage Compatibility (VAC)
- 120
- Recommended Electrical Service
DC INPUT: Requires 12VDC input source capable of delivering 125A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 225A minimum battery system fusing is recommended. AC INPUT: 120VAC
- Battery Pack Accessory (Optional)
- 98-121 sealed lead acid battery (optional)
- Nominal Output Voltage(s) Supported
- 120V
- Transfer Time (Line Power to Battery Mode)
- 16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
- DC System Voltage (VDC)
- 12
- Output Receptacles
- (2) 5-15R
- Expandable Runtime
- Yes
- Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, auto/remote setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
- Frequency Compatibility
- 60 Hz
- Low Voltage Transfer to Battery Power
- In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
- Package Includes
- APS1250 1250W PowerVerter APS 12V DC 120V AC Inverter/Charger;Owner's manual
- Form Factors Supported
- Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
- Battery Charge
- 30A max, 3 step, float for long term maintenance
- Output Voltage Regulation
- LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
- Overload Protection
- Includes 8A input breaker dedicated to the charging system and 12A output breaker for AC output loads
- Output Frequency Regulation
- 60 Hz (+/- 0.3 Hz)
- Relative Humidity
- 0%-95% Non-Condensing
- Material of Construction
- Polycarbonate
- High Voltage Transfer to Battery Power
- In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)
- Receptacle Color
- Black
- Front Panel LEDs
- Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
- Voltage Compatibility (VDC)
- 12
- Nominal Input Voltage(s) Supported
- 120V AC
- AC Suppression Joule Rating
- 450
- Cooling Method
- Fan
