  5. Power Inverter and Battery Charger, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 2 Outlets

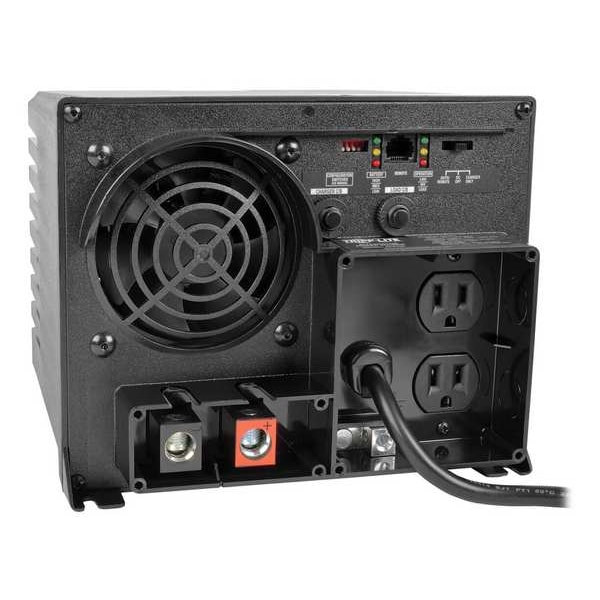

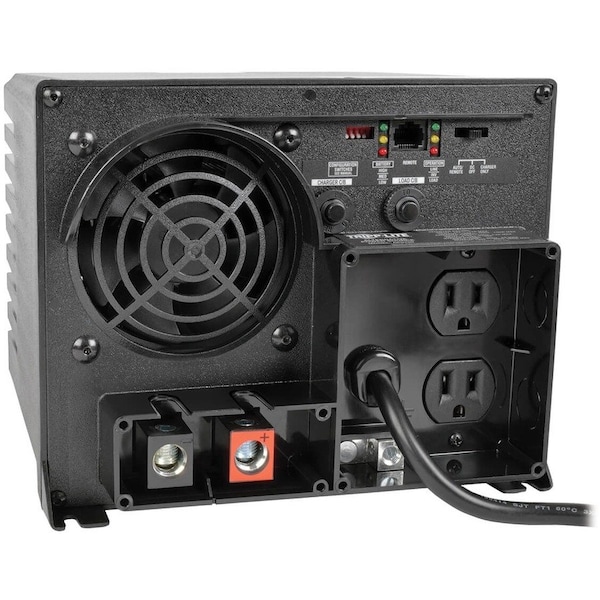

Tripp Lite Power Inverter and Battery Charger, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 2 Outlets APS750 - main

Power Inverter and Battery Charger, Modified Sine Wave, 1,500 W Peak, 750 W Continuous, 2 Outlets

  • Mfr # APS750

  • Zoro # G2596675

product price:  $597.99
/ea
Free Shipping & Returns

Key Features

Continuous Output Power
750 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC; 120V AC
Inverter Output Voltage
120V AC
Outlet Type
Standard 3-Prong Outlet
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
APS750
Zoro #
G2596675
UPC #
037332121608
Country of Origin
China

Dimensions

Charger Height
7 in
Height
8-3/4"
Charger Depth
9 in
Depth
7"
Width
9"
Inverter Depth
9 in
Inverter Height
7 in
Length
12.5"
Inverter Width
8.7 in
Charger Width
8.8 in
Unit Dimensions (hwd / in.)
7.000 x 8.750 x 9.000

Details

Item
Power Inverter and Battery Charger
Peak Output Power
1,500 W
Continuous Output Power
750 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
12V DC; 120V AC
Inverter Output Voltage
120V AC
Outlet Type
Standard 3-Prong Outlet
DC Connection
Bolt Down Terminals
Number of Outlets
2
Case Material
Polycarbonate
Max. Input Current
Full continuous load - 72 A at 12V DC; AC INPUT: 8 A at 120V AC with full inverter and charger load
Features
Automatic Transfer Switching, Emergency and Remote Sites, Front Panel Leds, Meets Normal and Peak Power Demands, Optional Remote Control Capability, Reliable Power for Mobile, Rugged Polycarbonate Housing
Charger Output Voltage
120V
Charger Output Amps
20 A
Charger Input Voltage
120V AC
Application
Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
Automatic/Manual
Automatic
Nominal Output Power
750 W
Inveter Output Voltage
120V
Output Frequency
60 Hz
Input Voltage
12VDC
Charger Output Current
20 A
Output Voltage
115VAC
Charger Input Current
4.2 A
Product Series
APS
Product Color
Black
Input Voltage Range
10 V DC - 15 V DC
Protection Type
Overload Protection
Additional Information
Frequency control for operating stability, AC surge suppression not included, Material of construction: Polycarbonate, Low voltage transfer to battery power: User configurable to 75V, 85V, 95V & 105V, High voltage transfer to battery power: User configurable to 135V, 145V, Coated internal circuit boards offer continuous operation in humid environments, Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries, Functions as an extended run UPS system, standalone power source and automotive inverter, RJ-45 port allows connection of APS/PowerVerter Remote Switch (manuf# APSRM4), Switch allows user to select between off, auto-invert/remote and charge-only settings, Configuration switches to allow the user to select the high and low voltage, Mounting slots enable permanent placement of inverter on any horizontal surface, AC input cord and auto-transfer to enable battery charging and automatic UPS support for blackouts & brownouts
Product Line
PowerVerter
Maximum Frequency
60 Hz
Package Contents
PowerVerter APS 750W Inverter/Charger, Instruction Manual with Warranty Information
Product Name
PowerVerter APS 750W Inverter/Charger
Front Panel LEDs
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Material of Construction
Polycarbonate
Receptacle Color
Black
Battery Charge
20A
Output Frequency Regulation
60 Hz (+/- 0.3 Hz)
Output Receptacles
(2) 5-15R
Voltage Compatibility (VAC)
120
High Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)
Voltage Compatibility (VDC)
12
Maximum Input Amps / Watts
DC INPUT: Full continuous load - 72A at 12V DC. AC INPUT: 8 amps at 120VAC with full inverter and charger load (4.2A max charger-only)
Output Voltage Regulation
LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
Relative Humidity
0%-95% Non-Condensing
Nominal Output Voltage(s) Supported
120V
Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterrupt
Frequency Compatibility
60 Hz
Expandable Runtime
Yes
Overload Protection
Includes 6A AC input breaker dedicated to the charging system and 8A output breaker for AC output loads
Package Includes
APS750 750W PowerVerter APS 12V DC 120V AC Inverter/Charger;Owner's manual
Form Factors Supported
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Low Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
Transfer Time (Line Power to Battery Mode)
16.6 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
Nominal Input Voltage(s) Supported
120V AC
DC System Voltage (VDC)
12
Recommended Electrical Service
DC INPUT: Requires 12V DC input source capable of delivering 72A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). AC INPUT: 15A 120V AC recommended
AC Suppression Joule Rating
450
Cooling Method
Fan

Description

Inverter and Battery Charger, Inverter Output Form Modified Sine Wave, DC Connection Input Terminals, Peak Output Power 1,500 W, Number of Outlets 2, Inverter Input Voltage 120V AC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Case Material Polycarbonate, Cooling Method Fan, Application Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
