Item
Power Inverter and Battery Charger
Peak Output Power
4,800 W
Continuous Output Power
2,400 W
Inverter Output Form
Modified Sine Wave
Inverter Input Voltage
48V DC; 120V AC
Inverter Output Voltage
120V AC
DC Connection
Bolt Down Terminals
Standards
CSA CAN/CSA-C22.2 No.107.1-M91, NOM, RoHS, UL1778
Case Material
Polycarbonate
Application
Powering Tools; Saws; Motors; Pumps; Portable Lighting; Appliances and Computer Equipment in Heavy-Load Conditions
Features
Automatic Transfer Switching, Automatic Voltage Regulation, Meets Normal and Peak Power Demands, Reliable Power for Mobile, Emergency and Remote Sites, Remote Control Capability, Rugged Polycarbonate Housing
Charger Input Voltage
120V AC
Temp. Range
32°F to 104°F
Charger Output Voltage
120V
Automatic/Manual
Automatic
Max. Input Current
Full continuous load - 56 A at 48V DC; 33 A at 120V AC with full inverter and charger load
Nominal Output Power
2,400 W
Inveter Output Voltage
120V
Charger Output Current
20 A
Charger Input Current
13 A
System Requirements
DC INPUT: Requires 48VDC input source capable of delivering 56A for the required duration (when used at full continuous capacity). For automotive applications, professional hardwire installation with 100A minimum battery system fusing is recommended.
Product Name

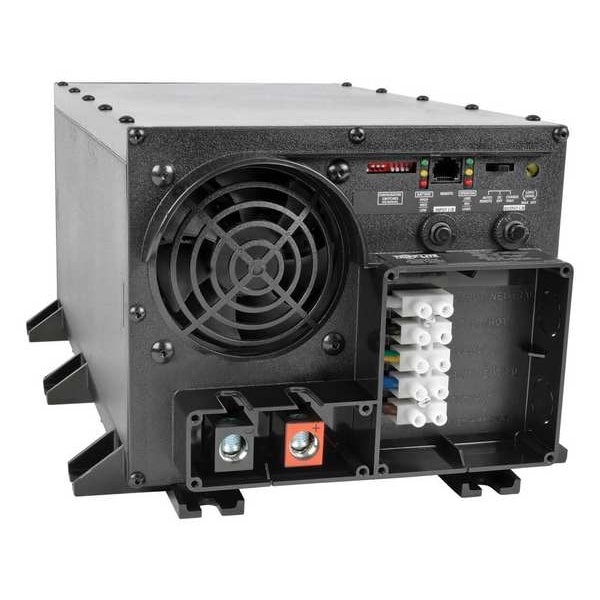

PowerVerter APS 2400 Watt Power Inverter
Input Voltage Range
40 V DC - 60 V DC
Package Contents
PowerVerter APS 2400 Watt Power Inverter, APS2448 Inverter/Charger, Instruction manual with warranty information
Output Frequency Regulation
60 Hz (+/- 0.3 Hz)
Front Panel LEDs
Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
Load Sensing
Optional load sense function enables automatic inverter shutoff and startup as connected equipment is powered off and on. Front panel load sense potentiometer can be set to shutoff or turn on inverter power in response to loads of any level, up to 150 watts.
Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
Voltage Compatibility (VAC)
120
Nominal Output Voltage(s) Supported
120V
Low Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 75V (user adjustable to 85, 95, 105V - see manual)
Frequency Compatibility
60 Hz
Form Factors Supported
Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
Recommended Electrical Service
DC INPUT: Requires 48VDC input source capable of delivering 56A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation).
Maximum Input Amps / Watts
DC INPUT: Full continuous load - 56A at 48VDC. AC INPUT: 33 amps at 120VAC with full inverter and charger load (13A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output load
Relative Humidity
0%-95% Non-Condensing
Nominal Input Voltage(s) Supported
120V AC
Operating Temperature
32 to 104 F (0 to 40 C)
Overload Protection
Includes 15A input breaker dedicated to the charging system and 20A output breaker for AC output loads.
Output Receptacles
Hardwire
Material of Construction
Polycarbonate
Product Certifications
CAN/CSA-C22.2 No. 107.1 (Canada); NOM (Mexico); UL 1778
Package Includes
APS2448UL 2400W PowerVerter APS 48V DC 120V AC Inverter/Charger;Owner's manual
Battery Pack Accessory (Optional)
98-121 sealed lead acid battery (optional)
High Voltage Transfer to Battery Power
In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 135V (user adjustable to 145 - see manual)
DC System Voltage (VDC)
48
Voltage Compatibility (VDC)
48
Output Voltage Regulation
LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%).
Transfer Time (Line Power to Battery Mode)
8 milliseconds (typical - compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications)
