- Item
- Power Inverter
- Peak Output Power
- 12,000 W
- Continuous Output Power
- 6,000 W
- Inverter Output Form
- Pure Sine Wave
- Inverter Input Voltage
- 48V DC; 208V AC; 230V AC
- Inverter Output Voltage
- 208/230V AC
- Outlet Type
- Hardwired
- DC Connection
- Bolt Down Terminals
- Number of Outlets
- 1
- Standards
- Tested to EN62040-1 (CE), EN62040-2 (EMC), RoHS compliant
- Case Material
- Steel
- Charger Output Amps
- 90 A
- Features
- Battery Temperature Sensor; Expandable Runtime; Overvoltage Correction; Pure Sine Wave Output
- Nominal Output Power
- 6,000 W
- Inveter Output Voltage
- 208V; 230V
- Output Frequency
- 50/60 Hz
- Product Line
- PowerVerter
- Package Contents
- PowerVerter APSX6048VRNET Power Inverter, Instruction Manual with Warranty Information
- Maximum Frequency
- 50 Hz
- Product Color
- Black
- Output Voltage
- 208 V AC, 230 V AC
- Input Voltage
- 208 V AC, 230 V AC, 48 V DC
- Product Series
- APS X
- Product Name

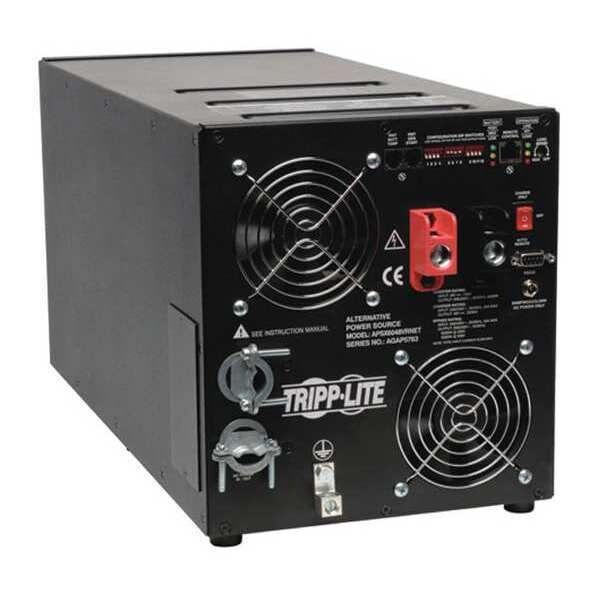

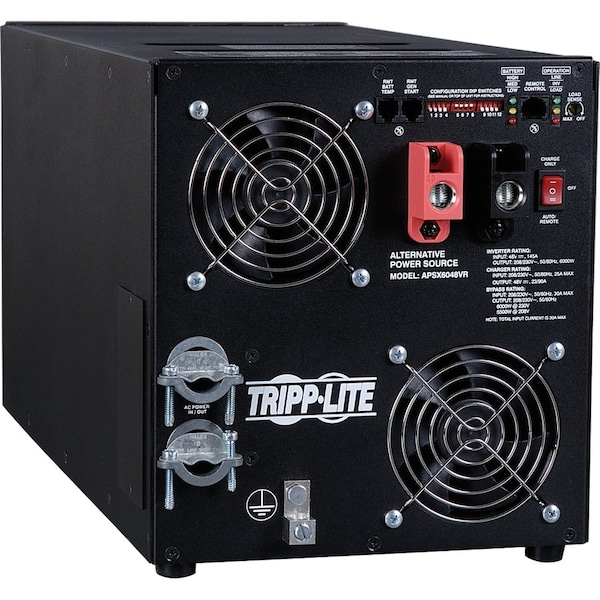

- PowerVerter APSX6048VRNET Power Inverter
- Voltage Compatibility (VDC)
- 48
- Severe Brownout Correction
- Input voltages from 188V - 171V are automatically boosted by 26% (230V only)
- DC System Voltage (VDC)
- 48
- Transfer Time (Line Power to Battery Mode)
- Dip-switch selectable 20 millisecond (full cycle) / 10 millisecond (half-cycle) transfer times which are compatible with many computers, servers and networking equipment - verify transfer time compatibility of loads for UPS applications
- Voltage Regulation Description
- Includes automatic voltage regulation to correct brownouts and over-voltages back to usable levels
- Switches
3 position on/off/remote switch enables simple on/off power control plus "auto/remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory when used in inverter mode. In AC uninterruptible power mode, "auto/remote" setting enables automatic transfer from line power to battery power - to maintain continuous AC power to connected loads.
- Voltage Compatibility (VAC)
- 208; 230
- High Voltage Transfer to Battery Power
- In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 260V (user adjustable to 270 - see manual), In 208V AC "auto" mode, inverter/charger switches to battery mode as line voltage increases to 235V (user adjustable to 245V-see manual)
- SNMP Compatibility
- Optional SNMPWEBSOLOHV accessory card enables remote monitoring of the unit via SNMP, SSH, telnet or Internet.
- Nominal Input Voltage(s) Supported
- 208V AC; 230V AC
- Product Certifications
- IEC/EN 62040
- Brownout Correction
- Input voltages from 208V -189V are automatically boosted by 11% (230V) / Input voltages from 188V-166V are automatically boosted 12% (208V)
- Relative Humidity
- 0%-95% Non-Condensing
- Output Frequency Regulation
- 50/60 Hz (+/- 0.3 Hz)
- Front Panel LEDs
- Set of 6 LEDs offer continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
- Output Receptacles
- Hardwire
- Grounding
- Main grounding lug connects inverter/charger to earth or vehicle chassis ground
- Recommended Electrical Service
DC INPUT: Requires 48VDC input source capable of delivering 138A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire installation with 250A minimum battery system fusing is recommended.
- Nominal Output Voltage(s) Supported
- 208V; 230V
- Battery Temperature Sensor
- RJ-11 port connects to optional battery temperature sensor cable to regulate the charging system based on battery temperature
- Frequency Compatibility
- 50 / 60 Hz
- Overvoltage Correction
- Input voltages above 252V are automatically reduced by 9% (230V) / Input voltages above 235/245V are automatically reduced by 10% (208V)
- Low Voltage Transfer to Battery Power
- In 230V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 170V AC (user adjustable to 180V). In 208V AC "auto" mode, inverter/charger switches to battery mode as line voltage drops to 165V (user adjustable to 175V)-see manual
- Expandable Runtime
- Yes
- Form Factors Supported
- Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
- Output Voltage Regulation
- LINE POWER (AC): Maintains 208/230V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output voltage of 208/230 VAC (+/-5%).
- Generator Start Compatibility
- RJ-11 port connects to a generator with user-supplied cable to automatically cycle generator when battery level is low
- Product Compliance
- CE (Europe)
- Material of Construction
- Metal
- Package Includes
- APSX6048VRNET 6000W APS X Series 48V DC 208/230V AC Inverter/Charger;Owner's manual
- Battery Pack Accessory (Optional)
- 98-121 sealed lead acid battery (optional)
- Communications Interface
- Contact closure; DB9 Serial
- Battery Charge
- Selectable 23 / 90A
