- Item
- Power Inverter
- Peak Output Power
- 8,000 W
- Continuous Output Power
- 4,000 W
- Inverter Output Form
- Pure Sine Wave
- Inverter Input Voltage
- 48V DC; 220V/230V/240V AC
- Inverter Output Voltage
- 220V/230V/240V AC
- Outlet Type
- Hardwired
- DC Connection
- Bolt Down Terminals
- Number of Outlets
- 1
- Max. Input Current
- 120 A
- Case Material
- Steel
- Charger Output Amps
- 70 A
- Nominal Output Power
- 4,000 W
- Features
- Pure Sine Wave Output
- Temp. Range
- 32°F to 104°F
- Inveter Output Voltage
- 220V; 230V; 240V
- Output Frequency
- 50/60 Hz
- Package Contents
- PowerVerter APSX4048SW Power Inverter, Instruction Manual with Warranty Information
- Input Voltage
- 240 V AC, 230 V AC, 48 V DC, 220 V AC
- Product Name

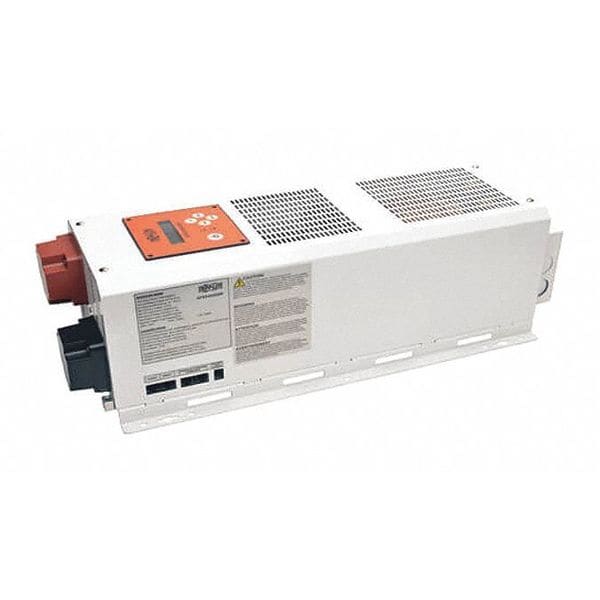

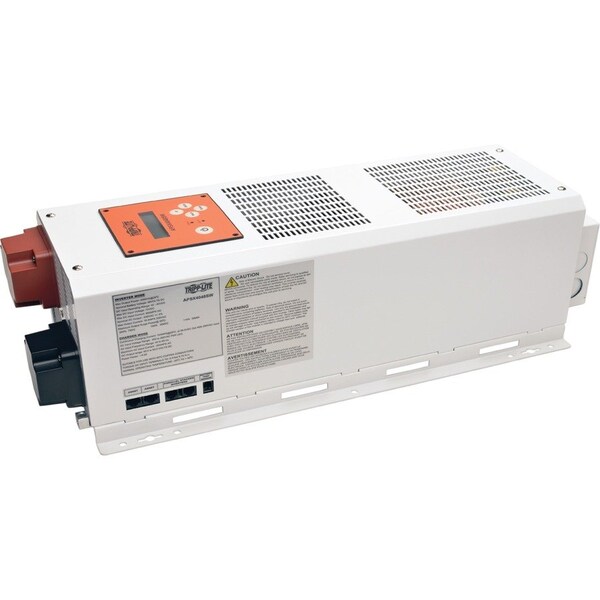

- PowerVerter APSX4048SW Power Inverter
- TAA Compliant
- Yes
- Output Voltage
- 230 V AC, 220 V AC, 240 V AC
- Maximum Frequency
- 50 Hz
- Product Series
- APS X
- Product Line
- PowerVerter
- Grounding
- Main grounding lug connects inverter/charger to earth or vehicle chassis ground
- Network Monitoring Port
- ASNET (RJ45) ports provide RS-485 (MODBUS) communication for remote monitoring and management
- DC System Voltage (VDC)
- 48
- Front Panel LEDs
- LCD display offers continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences.
- High Voltage Transfer to Battery Power
- In AC "auto" mode, inverter/charger switches to battery mode as line voltage increases 10 to 40V AC (user adjustable). See manual
- Switches
- 5 memebrane switches allow user to operate and configure unit operation.
- Expandable Runtime
- Yes
- Operating Temperature
- 32 to 104 F (0 to 40 C)
- Nominal Output Voltage(s) Supported
- 220V; 230V; 240V
- Output Voltage Regulation
- LINE POWER (AC): Maintains nominal sine wave output from line power source. INVERTER POWER (AC): Maintains sine wave output of +/-2%
- Package Includes
- APSX4048SW 4000W APS X Series 48V DC 220/230/240V AC Inverter/Charger;Owner's manual;Termination loops;Parallel/stacking cable;ASNET cable
- Relative Humidity
- 0%-95% Non-Condensing
- Material of Construction
- Metal
- Frequency Compatibility
- 50 / 60 Hz
- Recommended Electrical Service
- DC INPUT: Requires 48VDC input source capable of delivering 120A for the required duration (when used at full continuous capacity - DC requirements increase during OverPower and DoubleBoost operation). For automotive applications, professional hardwire
- Output Receptacles
- Hardwire
- Low Voltage Transfer to Battery Power
- In AC "auto" mode, inverter/charger switches to battery mode as line voltage drops 10 to 80V AC (user adjustable). See manual
- Transfer Time (Line Power to Battery Mode)
- 20 millisecond (full cycle) / 10 millisecond (half-cycle)
- Voltage Compatibility (VDC)
- 48
- Nominal Input Voltage(s) Supported
- 220V AC; 230V AC; 240V AC
- Battery Pack Accessory (Optional)
- 98-121 sealed lead acid battery (optional)
- Maximum Input Amps
- 120
- Battery Charge
- Selectable 1 / 70A charge rate
- Output Frequency Regulation
- 50/60 Hz (+/- 0.5 Hz)
- Voltage Compatibility (VAC)
- 220; 230; 240
