  11. Power Strip, Surge, 5-15R, 5-15P, 15 ft., Black

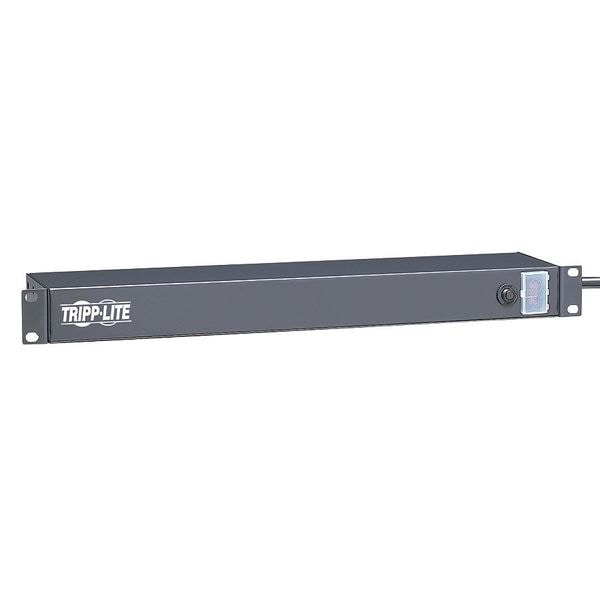

Tripp Lite Power Strip, Surge, 5-15R, 5-15P, 15 ft., Black RS-0615-R - main

Power Strip, Surge, 5-15R, 5-15P, 15 ft., Black

  • Mfr # RS-0615-R

  • Zoro # G5096174

product price: $94.19
/ea
Free Shipping & Returns

Key Features

Type
Surge
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
15 ft.
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS-0615-R
Zoro #
G5096174
UPC #
037332115638
Country of Origin
China

Dimensions

Cord Length
15 ft.
Width
17 1/2 in
Height
1 3/4 in
Length
4 1/2 in
Depth
4.5"
Length (Straight Wireway)
4 1/2 in
Overall Length
4 1/2 in
Overall Height
1 3/4 in
Overall Width
17 1/2 in

Details

Item
Power Strip
Type
Surge
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black
Standards
cUL Listed; NOM; RoHS Compliant; UL 1363; UL Listed
Receptacle Type
NEMA 5-15R
Circuit Breaker
Yes
Outlet Surge Protection
No
Plug Type
NEMA 5-15P
Includes
15 ft Power Cord, Lighted Switch
Number of Outlets
6
Housing Material
Sheet Metal
Power Indicator
Yes
GFCI Protected
No
Max. Amps
15A
Mounting Style
Horizontal Rackmount/1U
Voltage
120VAC
Phase
Single
Number of Transformer Outlets
3
NEMA Plug Configuration
NEMA 5-15P
Hz
50/60 Hz
Metered
Non-Metered
Outlet Center Distance
38.90 mm Grouped; 75.4 mm Groups; 114.3 mm Duplex
NEMA Receptacle Configuration
NEMA 5-15R
Frequency
50/60 Hz
Features
Detachable Mounting Flanges, Under-Counter Mounting Option
Watts
1800W
Input Voltage
120 V AC
Maximum Input Current
15 A
Package Contents
Power Strip 120V AC, RS-0615-R Power Strip, Warranty information, Instruction manual
Maximum Frequency
60 Hz
Form Factor
Rack-mountable, Wall Mountable
Certifications & Standards
UL1363 (UR status), cUL
Maximum Output Voltage
120 V AC
Mount Type
Vertical, Horizontal
Maximum Current
15 A
Built-In Circuit Breaker
Yes
Rack Units
1
Maximum Input Voltage
120V AC
Frequency Compatibility
50 / 60 Hz
Package Includes
RS-0615-R Power Strip;Warranty information;Instruction manual
Included Mounting Accessories
Rackmount flanges
Grounding
Back panel nut and bolt grounding lug
Locking Switch Cover
Transparent locking switch cover prevents accidental shutoff
Nominal Input Voltage(s) Supported
120V AC
Circuit Breaker (amps)
15
Output Receptacles
(6) 5-15R
Outlets Measurement (Center to Center)
Distance between grouped outlets = 1.53 in.; Distance between groups = 2.96 in.; Distance between duplex outlets = 4.5 in.
Mounting Holes or Slots
No
Material of Construction
Metal
Form Factors Supported
1U rackmount, wall-mount and undercounter installation supported

Description

Power Distribution Unit, Built-In Circuit Breaker Yes, Color Black, Cord Length 15 ft, Number of Outlets 6, Receptacle Type NEMA 5-15R, Maximum Input Voltage 120V AC, Outlet Surge Protection No, Metered Non-Metered, Rack Units 1, Mounting Location Horizontal Rack, Wall, Plug Type NEMA 5-15P, Features Detachable Mounting Flanges, Under-Counter Mounting Option, Housing Material Metal, Includes 15 ft Power Cord, Lighted Switch, Maximum Current 15 A, Overall Height 1 3/4 in, Overall Length 4 1/2 in
