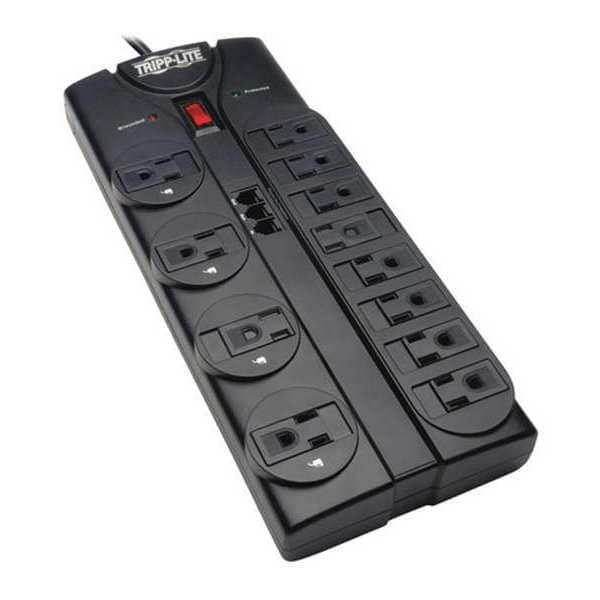

  11. Power Strip, Surge, Tel/Modem Protection, 5-15R, 5-15P, 8 ft., Black

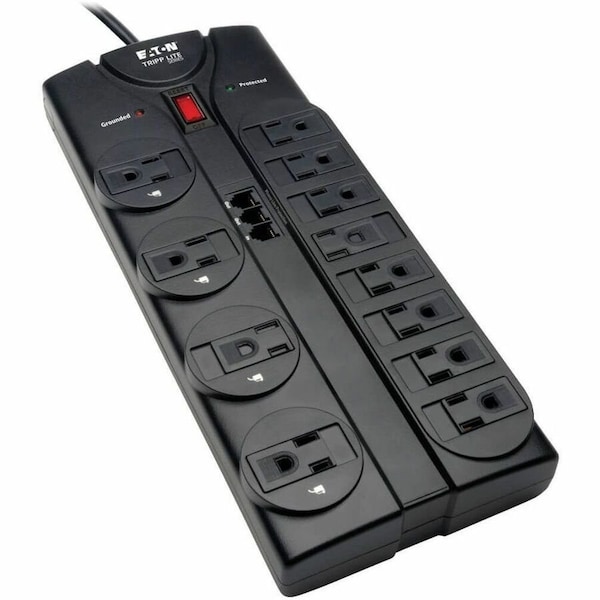

Tripp Lite Power Strip, Surge, Tel/Modem Protection, 5-15R, 5-15P, 8 ft., Black TLP1208TEL - main

Power Strip, Surge, Tel/Modem Protection, 5-15R, 5-15P, 8 ft., Black

  • Mfr # TLP1208TEL

  • Zoro # G5175497

product price: $50.15
/ea

Key Features

Type
Surge, Tel/Modem Protection
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
8 ft.
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TLP1208TEL
Zoro #
G5175497
UPC #
037332152503
Country of Origin
China

Dimensions

Cord Length
8 ft.
Height
1.5"
Width
2.7"
Depth
10.3"

Details

Item
Power Strip
Type
Surge, Tel/Modem Protection
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black
Gauge/Conductor
14/3
Standards
IEEE 587; UL1363; UL1449; UL497A
NEC Cord Designation
14 ga., SJT
Noise Attenuation
Up to 40 dB
Hz
50/60 Hz
NEMA Receptacle Configuration
NEMA 5-15R
Coax Surge Protection
No
Housing Material
Plastic
Voltage
120VAC
Circuit Breaker
Yes
Number of Transformer Outlets
8
Power Indicator
Yes
NEMA Plug Configuration
NEMA 5-15P
Number of Outlets
12
Max. Amps
15A
Outlet Surge Protection
Yes
Communication Port
FCC Part 68
Number of Outlet Rows
2
Rated Joules
2160 J
Mounting Style
Keyhole
Outlet Center Distance
25.4 mm Standard; 57 mm Transformer
Frequency
50/60 Hz
Features
Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots
Watts
1800W
Input Voltage
120 V AC
Dataline Protection
Phone/Fax/Modem/DSL
Compatibility
TV, VCR, DVD Player, Computer
Maximum Line Current
15 A
Surge Energy Rating
2160 J
Power Handling
1875 VA
Package Contents
Protect It! TLP1208TEL 12-Outlets Surge Suppressor, 6-ft. RJ11 Telephone Cord, Instruction Manual with Warranty Information
Output Capacity (Watts)
1875
Network (Ethernet) Protection
No
Nominal Input Voltage(s) Supported
120V AC
Input Cord Details
SJT
Outlet Orientation
Two rows of outlets, including 4 widely spaced for transformers
Mounting Holes or Slots
Yes
AC Suppression Response Time
< 1 ns
Maximum Surge Amps
144000
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
Outlets Measurement (Center to Center)
Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm
Output Capacity (VA)
15
EMI / RFI Filtering
Up to 40 dB
Package Includes
TLP1208TEL surge suppressor;6-ft. (1.83 m) RJ11 telephone cord;Instruction manual with warranty information
Output Receptacles
(12) 5-15R
Frequency Compatibility
50 / 60 Hz
AC Suppression Joule Rating
2160
Diagnostic LED(s)
Yes
Diagnostic LED Details
Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
Material of Construction
Plastic
Input Plug Features
Right Angle (36D)
Overload Protection
15A resettable circuit breaker

Description

Surge,12 Outlet,8ft cord,2160J,Modem
