  6. Power Strip, Surge, Tel/Modem/Coaxial/Ethernet Protection, 12 5-15R, 5-15P, 8 ft., Black

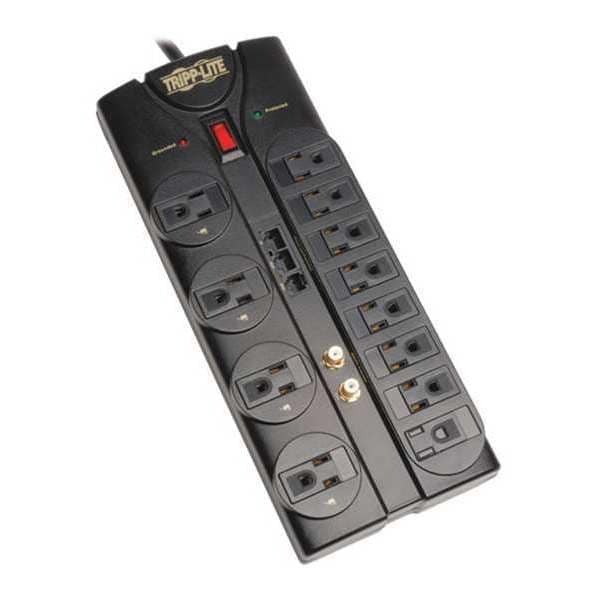

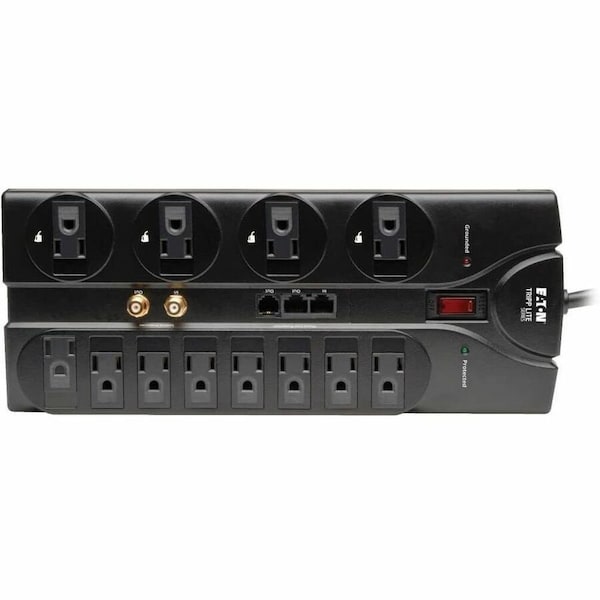

Tripp Lite Power Strip, Surge, Tel/Modem/Coaxial/Ethernet Protection, 12 5-15R, 5-15P, 8 ft., Black TLP1208SAT - main

Power Strip, Surge, Tel/Modem/Coaxial/Ethernet Protection, 12 5-15R, 5-15P, 8 ft., Black

  • Mfr # TLP1208SAT

  • Zoro # G5175506

product price:  $64.45
/ea

Key Features

Type
Surge, Tel/Modem/Coaxial/Ethernet Protection
Total Number of Outlets
12
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Cord Length
8 ft.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TLP1208SAT
Zoro #
G5175506
UPC #
037332175182
Country of Origin
China

Dimensions

Cord Length
8 ft.
Depth
10.3"
Length
10 1/4 in
Height
1 1/4 in
Width
2 3/4 in
Wire Size
14 AWG
Length (Straight Wireway)
10 1/4 in

Details

Item
Power Strip
Type
Surge, Tel/Modem/Coaxial/Ethernet Protection
Total Number of Outlets
12
Receptacle Configuration
5-15R
Plug Configuration
5-15P
Color
Black
Gauge/Conductor
14/3
Standards
CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed; FCC Part 68; RoHS
Power Indicator
Yes
Circuit Breaker
1
Hz
50/60 Hz
Outlet Center Distance
2-1/4 in
Special Features
Audible Alarm, Diagnostic LED
NEMA Receptacle Configuration
(12) NEMA 5-15R
Number of Outlet Rows
2
Housing Material
Plastic
Mounting Style
Keyhole
Max. Amps
15A
Outlet Surge Protection
Yes
Rated Joules
2,880
Coax Surge Protection
Yes
Number of Outlets
12
NEC Cord Designation
14 ga., SJT
For Use With
Theater Systems
Medical Facility Use
Not Allowed
Includes
(1) 6 ft Coax Cable, (1) 6 ft Network Cable, (1) 6 ft Telephone Cord
Number of Transformer Outlets
4
NEMA Plug Configuration
NEMA 5-15P
Max. Surge Current
216 kA
Voltage
120VAC
Noise Attenuation
40dB
Communication Port
(2) Coaxial, (3) RJ45 Network
Plug Style
Right Angle
Surge Protection Indicator
Yes
Application
Home and Office
USB Charging Port
0
Trade Designation
SJT
Number of Conductors
3
Frequency
50/60 Hz
Features
Audible Alarm, Automatic Shut-Off, Diagnostic LED(s), Integrated Keyhole Mounting Slots
Watts
1800W
Maximum Surge Current
216 kA
Certifications & Standards
UL Listed Certification
Dataline Protection
Telecommunication, Cable Modem/DSL/Fax/Phone, Ethernet, Coaxial Cable Line
Maximum Line Current
15 A
Power Handling
1800 VA
Surge Energy Rating
2880 J
Package Contents
Protect It! TLP1208SAT 12 Outlets Surge Suppressor, 6-ft. Telephone Cord, 6-ft. Network Cable, 6-ft. Coax Cable, Instruction Manual with Warranty Information
Input Voltage
120 V AC
Outlet Safety Covers Detail
Includes built-in sliding outlet safety covers
EMI / RFI Filtering
Up to 40 dB
Diagnostic LED Details
Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
Cable (Coax) Protection
Yes
Circuit Breaker (amps)
15
Input Cord Details
SJT
Outlets Measurement (Center to Center)
Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm
AC Suppression Joule Rating
2880
Package Includes
TLP1208SAT;6-ft. (1.83 m) telephone cord;6-ft. (1.83 m) network cable;6-ft. (1.83 m) coax cable;Instruction manual with warranty information
Material of Construction
Plastic
Outlet Orientation
Single row of 8, plus a second row of 4 for transformer accommodation
Frequency Compatibility
50 / 60 Hz
Mounting Holes or Slots
Yes
Network Compatibility
100 Mbps (Fast Ethernet)
Network (Ethernet) Protection
Yes
Output Receptacles
(12) 5-15R
Nominal Input Voltage(s) Supported
120V AC
Diagnostic LED(s)
Yes
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
Input Plug Features
Right Angle (36D)
Maximum Surge Amps
216000
AC Suppression Response Time
< 1 ns

Description

Datacom Outlet Strip, Application Home and Office, Housing Material Plastic, Total Number of Outlets 12, Max. Amps 15 A, Cord Length 8 ft, Number of Power Switches 1, Power Indicator Yes, Number of Outlet Rows 1, Receptacle Configuration NEMA 5-15R, Plug Configuration NEMA 5-15P, Wire Size 14 AWG, Mounting Style Keyhole, Color Black, Medical Facility Use Not Allowed, Number of Transformer Outlets 4, Number of Conductors 3, Voltage 120V AC, Outlet Center Distance 2 1/4 in, Length 10 1/4 in
