UPS Type
Line Interactive
Output Voltage
110/115/120V
Backup Time (Half/Full Load)
14 min/4 min
NEMA Plug Configuration
5-15P
NEMA Receptacle Configuration
(6) 5-15R
Transfer Time
5 milliseconds AC to DC; 1 millisecond DC to AC
Standards
TAA Compliant, UL1778 (USA), CSA (Canada), NOM (Mexico), Meets FCC Part 15 Category A (EMI)
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Audible Noise
45 dBA maximum, front side 1m
High Availability UPS Features
Hot swappable batteries
UPS Dataline Suppression
1 line TEL/DSL or Ethernet
PowerAlert Software
For local monitoring via the UPS™s built-in USB or DB9 ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90%
AC Mode Efficiency Rating (100% Load)
0.99
UPS AC Suppression Joule Rating
450
Nominal Input Voltage(s) Supported
120V AC
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Cable
USB and DB9 cabling included
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
UPS Certification Details
UL 1778: 2014 R8.15 (5TH EDITION); CAN/CSA-C22.2 NO. 107.3-14
Internal UPS Replacement Battery Cartridge
RBC69-1U
DC System Voltage (VDC)
24
Load Management Receptacles
Two switchable single-outlet 5-15R load banks
Output AC Waveform (Battery Mode)
Pure Sine wave
Installation Form Factors Supported with Optional Accessories
4 post rackmount full-depth ( 4POSTRAILKIT1U ); 4 post rackmount short-depth ( 4POSTRAILKITWM )
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
AC Mode BTU / Hr. (Full Load)
39
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
Included Mounting Accessory Description
Included mounting brackets provide front-rail installation in 2 or 4 post racks; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT1U & 4POSTRAILKITWM
Nominal Output Voltage(s) Supported
110V; 115V; 120V
High Voltage Transfer to Battery Power (Setpoint)
147
Half Load Runtime (min.)
14 min. (400w)
Communications Interface
USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Output kVA Capacity (kVA)
1
AC Suppression Response Time
Instantaneous
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Battery Access
Front panel battery access door
Grounding Lug
Back panel grounding lug
Low Voltage Transfer to Battery Power (Setpoint)
83
Output Watt Capacity (Watts)
800
Rated input current (Maximum Load)
9.0A
Relative Humidity
0 to 95%, non-condensing
Input Circuit Breakers
15A
EMI / RFI AC Noise Suppression
Yes
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount; 2 post 19 inch rackmount
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions
UPS Certifications
Meets FCC Part 15 Category A (EMI); TAA Compliant; Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Recommended Electrical Service
15A 120V
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Output Voltage Regulation (Battery Mode)
+/- 5%
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Output Volt Amp Capacity (VA)
1000
Output Voltage Regulation (Line Mode)
-21%, +8%
Primary Form Factor
Rackmount
Individually Controllable Load Banks
Yes
Full Load Runtime (min.)
4 min. (800w)
Undervoltage Correction
Input voltages between 83 and 107 are boosted by 14%
Battery Replacement Description
Hot-swappable, user replaceable batteries
Package Contents

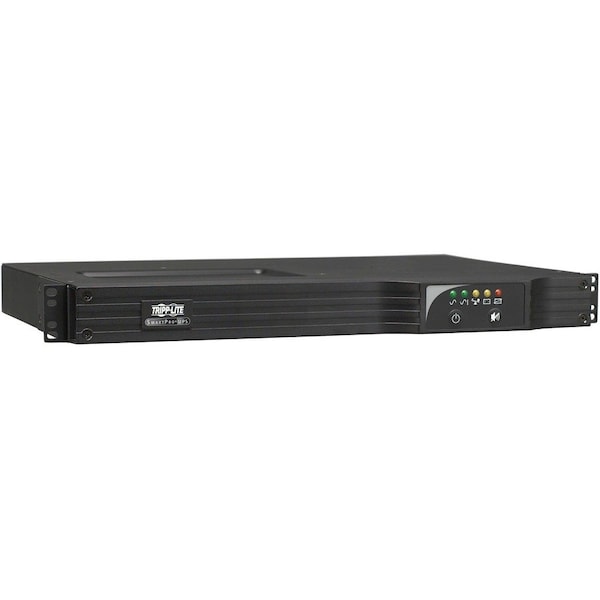

SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS, Mounting hardware, Cabling for USB & DB9 Monitoring and EPO Switching, Instruction Manual
Surge Energy Rating
450 J
Alarm
Low Battery, Overload, Power Failure
Battery Management
User replaceable
Software Included
PowerAlert Monitoring
Load Capacity
1000 VA/800 W
Status Indicators
Line power status, Battery power status, Overload status, Voltage regulation status, Battery low/replace status
Protection Type
Over Voltage, Black Out, Under Voltage, Surge, EMI / RFI, Brownout
Maximum Operating Temperature
104°F (40°C)
Output Capacity (VA)
1000
Product Compliance
FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Output Capacity (Watts)
800
UPS Applications
Large Network; High-End Desktop/Small Network
Package Includes
SM1000RM1UTAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS;USB cable;DB9 cable;EPO cable;Mounting hardware;Owner's manual
Grounding Details
Back panel grounding lug
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
