UPS Type
Line Interactive
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
14.3 min/4 min
Fax/Modem Line Protection
Yes
Automatic Volts Regulation
Yes
Standards
CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778
Includes
DB9 Serial Cable, Mounting Hardware, SMART1200LCD UPS, Telephone Cable, USB Cables
Ports
DB9 Serial, USB (HID Enabled)
Special Features
Battery Capacity and A Variety of Operating Conditions, Display Is Rotatable in Vertical or Horizontal Position, Hid-Compliant Sub Port Enables Integration With Built-In Power Management and Auto Shutdown Features of Windows and Mac Os X, LCD Display Indicates Input Voltage, Set of Phone/Network Protection Jacks Protects A Single Dialup/DSL Phone Line or Network Ethernet Connection, Supports Entry-Level PCs or Single VCR/DVR Components During Blackouts, Surge Suppression and Long-Lasting Battery, Voltage Regulation
NEMA Receptacle Configuration
(8) 5-15R
Transfer Time
2 to 4 msec
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
NEMA Plug Configuration
5-15P
VA Rating - UPS Systems
1.2 kVA
Capacity - Batteries
1200 VA/700 W
Operating Temp. Range
122°F (50°C)
Input Connection
6 ft Cord with NEMA 5-15P Plug
Input Circuit Breakers
10A
Alarm Cancel Operation
Press the MUTE/ENTER button during a power failure to silence the alarm; Once silenced, alarm will re-sound to indicate low-battery status
Low Voltage Transfer to Battery Power (Setpoint)
75
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Included Mounting Accessory Description
Included mounting brackets enable installation in 2 and 4 post racks, plus upright tower configurations; Set of 4 rubber-feet enable no-slip horizontal desktop placement
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Rated input current (Maximum Load)
7A
Output AC Waveform (Battery Mode)
PWM sine wave
UPS AC Suppression Joule Rating
870
Communications Interface
Contact closure; DB9 Serial; USB (HID enabled)
EMI / RFI AC Noise Suppression
Yes
AC Mode BTU / Hr. (Full Load)
80
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
High Voltage Transfer to Battery Power (Setpoint)
147
Individually Controllable Load Banks
No
Severe Undervoltage Correction
Input voltages between 75 and 92 are boosted by 30%
Nominal Input Voltage(s) Supported
120V AC
Output Voltage Regulation (Line Mode)
-18%, +8%
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Recommended Electrical Service
15A 120V
Internal UPS Replacement Battery Cartridge
IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1200LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1200LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery
AC Mode Efficiency Rating (100% Load)
0.97
UPS Certification Details
UL1778: 2014 R8.15 5TH EDITION; CSA-C22.2 NO. 107.3-14 3RD EDITION; FCC Part 68 Certification Number 5WSWP00B001; Industry Canada Certification Number 3449-001, REN: 0.1
DC System Voltage (VDC)
24
Audible Alarm
Audible alarm indicates power-failure and low-battery status; Alarm can be disabled entirely via front panel LCD interface (see manual)
Output kVA Capacity (kVA)
1.2
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Output Volt Amp Capacity (VA)
1200
Half Load Runtime (min.)
14.3 min. (350w)
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Switches
ON/OFF/MODE button provides UPS on/off power control (long-press) and advances the LCD screen display (short tap); MUTE/ENTER button provides temporary alarm cancel, plus selection and confirmation of on-screen configuration options
UPS Dataline Suppression Details
168 joules; Compatible with POE applications
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
Communications Cable
USB and DB9 Serial cabling included
LED Indicators
Front panel LCD display

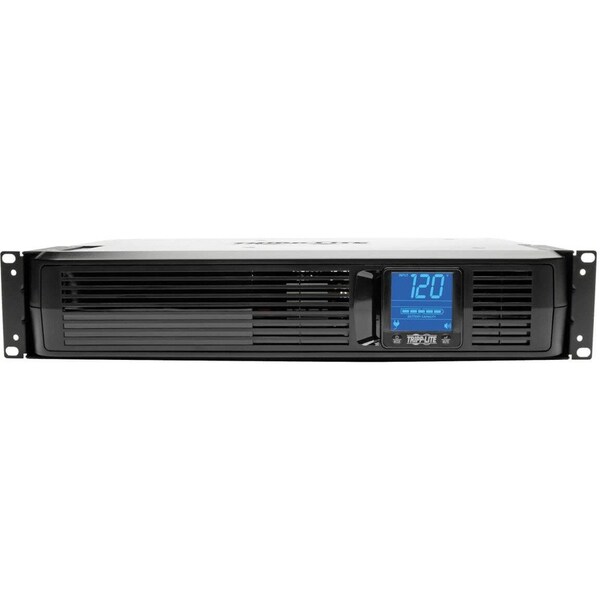

Primary Form Factor
Rackmount
UPS AC Suppression Response Time
Instantaneous
Output Watt Capacity (Watts)
700
Output Voltage Regulation (Battery Mode)
+/- 5%
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; DB9 provides contact-closure notification of AC Present (pins 1,9 connected) and AC Fail (pins 1,8 connected)
Undervoltage Correction
Input voltages between 92 and 107 are boosted by 14%
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90%
Installation Form Factors Supported with Included Accessories
2 post 19 inch rackmount; 4 post 19 inch rackmount; Tower

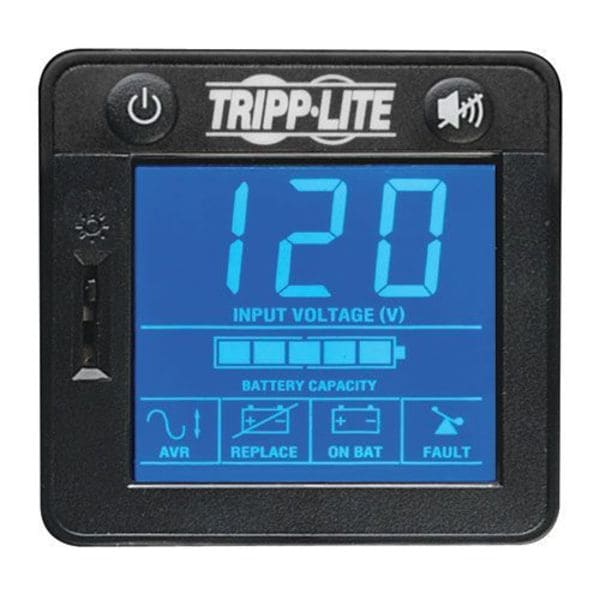

Front Panel LCD Display
Backlighted LCD screen offers detailed UPS status information, configuration options and Error message reporting; STATUS INFORMATION includes Input Voltage, Output Voltage, Estimated Runtime (minutes), Output Load Percentage, Output Load Wattage, Battery Charge Percentage, Graphical 5-Bar Battery Charge Level and UPS Operating Mode Display / CONFIGURATION OPTIONS include Power Sensitivity, LCD Status Information Scrolling, Alarm Disable, LCD Brightness and Self Test / REPORTED ERROR MESSAGES include Replace-Battery and Overload conditions; LCD Screen rotates for vertical or horizontal UPS placement
Relative Humidity
Up to 95%, non-condensing
UPS Certifications
Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Full Load Runtime (min.)
4.0 min. (700w)
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Thermal Dissipation
71.42 W
Additional Information
Switches: Includes 2 front panel switches one main on/off power switch and one dual-function "alarm cancel"/"self test" button, WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications, Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 75V or less, switches back to AC mode as line voltage increases to 79V or higher, High voltage transfer to battery power: Switches to battery mode as line voltage increases to 147V or higher, switches back to AC mode as line voltage decreases to 143V or lower, Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure, Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common, Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures, Prevents data loss, viewing interruptions, lost recordings and loss of component programming, Automatic voltage regulation (AVR) circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power, HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux, Display is rotatable for easy viewing whether UPS is in vertical or horizontal position., Cabinet adapts to tower or rackmount shelf format
Load Capacity
1200 VA/700 W
Status Indicators
Front panel LCD screen with blue backlight offers: Continuous input line voltage data, Line power, Battery power, Battery charge level, Voltage regulation operation
Typical Battery Recharge Time
8 Hour
Package Contents
SmartPro 1200 VA Rack-mountable Tower Digital UPS, SMART1200LCD Digital UPS, USB, DB9 and phone cabling, Mounting hardware, Manual with warranty information
Dataline Protection
RJ-45
Surge Energy Rating
870 J
Waveform Type
Pulse-width Modulated Sine Wave
Maximum Operating Temperature
122°F (50°C)
Package Includes
SMART1200LCD UPS;USB cable;DB9 serial cable;Telephone cable;Mounting hardware;Owner's Manual
Output Capacity (Watts)
700
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
UPS Applications
Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Battery Replacement Description
IMPORTANT BATTERY REPLACEMENT INFORMATION > If your SMART1200LCD UPS has no battery replacement door, please contact a local electronics repair technician to source and install a matching replacement battery; If your SMART1200LCD UPS is equipped with a battery access door, please order Tripp Lite RBC1500 (quantity 1) replacement battery
Output Capacity (VA)
1200
Product Compliance
FCC Part 15 Class B (USA)
Operating Elevation (ft.)
6562
High Availability UPS Features
Automatic Voltage Regulation (AVR); Hot swappable batteries; Surge/noise protection
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Includes Battery
Battery Included
Battery Recharge Time
4.5 hr
Number of Outlets - Surge Only
8
Operating Temperature - Minimum
32 Degrees F
Run Time - Full Load
4 min
Power Rating - Real
700 W
Manufacturer Warranty
2 yr
Receptacle Configuration
5-15R
Power Rating - Apparent
1.2 kVA
Battery Chemistry
Valve Regulated Lead Acid
Audible Alarm Conditions
Low Battery, Power Outage
Transfer Time - Maximum
4 msec
Operating Temperature - Maximum
104 Degrees F
Input Current - Maximum
7 A
Transfer Time - Minimum
1 msec
Data Line Protection
Includes Data Line Surge Protection
Output Ports Included
Contact Closure, DB9 Serial, USB
External Battery Compatible
Not External Battery Pack Compatible
Number of Outlets - UPS
8
Surge Suppression Rating
870 J
