- Item
- Line-interactive UPS
- UPS Type
- Line Interactive
- Power Rating
- 1500VA
- Mounting
- Rack/Tower
- Wattage
- 1000 W
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
- Backup Time (Half/Full Load)
- 17.70 min/6.50 min
- Number of Outlets
- 8
- Hz
- 60 Hz
- Transfer Time
- 5 milliseconds (AC to battery), 1 milliseconds (Battery to AC)
- Standards
- UL Listed Certification
- NEMA Receptacle Configuration
- 8 x NEMA 5-15R
- NEMA Plug Configuration
- 5-15P
- Input Current
- 12 A
- Housing Material
- Steel
- Battery Type
- VRLA
- Battery Mode BTU / Hr. (Full Load)
- 650
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Cooling Method
- Fan
- Expandable Runtime
- No
- Installation Form Factors Supported with Included Accessories
- 2 post 19 inch rackmount; 4 post 19 inch rackmount
- Output Volt Amp Capacity (VA)
- 1500
- Relative Humidity
- 0 to 95%, non-condensing
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Output Watt Capacity (Watts)
- 1000
- Battery Access
- Front panel battery access door
- Communications Interface
- DB9 Serial; EPO (emergency power off); USB
- AC Mode BTU / Hr. (Full Load)
- 223
- AC Mode Efficiency Rating (100% Load)
- 0.94
- UPS AC Suppression Joule Rating
- 570
- Undervoltage Correction
- Input voltages between 83 and 107 are boosted by 14%
- Internal UPS Replacement Battery Cartridge
- RBC93-2U
- Individually Controllable Load Banks
- No
- Communications Cable
- USB cabling included
- High Availability UPS Features
- Hot swappable batteries
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Operating Elevation (m)
- 0 - 3000 m
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- UPS AC Suppression Response Time
- Instantaneous
- Installation Form Factors Supported with Optional Accessories
- 4 post rackmount full-depth ( 4POSTRAILKIT ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- Rated input current (Maximum Load)
- 12A
- Input Phase
- Single-Phase
- Full Load Runtime (min.)
- 6.5 min. (1000w)
- Overvoltage Correction
- Input voltages between 128 and 147 are reduced by 12%
- Grounding Lug
- Back panel grounding lug
- Primary Form Factor
- Rackmount
- Operating Elevation (ft.)
- 0-3000M (0-10,000 Ft)
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Nominal Input Voltage(s) Supported
- 120V AC
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- DC System Voltage (VDC)
- 36
- Output kVA Capacity (kVA)
- 1.5
- Audible Noise
- 45 dBA maximum, front side 1m
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
- Output kW Capacity (kW)
- 1
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Switches
- 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
- Battery Recharge Rate (Included Batteries)
- Less than 4.5 hours from 10% to 90% (typical, full load discharge)
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
- High Voltage Transfer to Battery Power (Setpoint)
- 147
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- EMI / RFI AC Noise Suppression
- Yes
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Input Circuit Breakers
- 15A
- Low Voltage Transfer to Battery Power (Setpoint)
- 83
- Included Mounting Accessory Description
- Includes UPSHDEARKIT for 2 point front-mount and 2 point center-mount rackmount installation in 2 and 4 post racks, plus wallmount installation; For additional stability in 4 post racks, consider optional 4 post mounting accessories 4POSTRAILKIT and 4POSTRAILKITWM
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Half Load Runtime (min.)
- 17.7 min. (500w)
- Output Voltage Regulation (Line Mode)
- -21%, +8%
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Recommended Electrical Service
- 15A 120V
- TAA Compliant
- Yes
- Thermal Dissipation
- 65.35 W
- Hot Swappable
- Yes
- Battery Management
- user-replaceable
- Surge Energy Rating
- 570 J
- Assembly Required
- No
- USB
- Yes
- Status Indicators
- LEDs
- Alarm
- Low Battery, UPS StartUp, Power Failure, Remote Shutdown, UPS Fault, Overload
- Load Capacity
- 1500 VA/1000 W
- Maximum Operating Temperature
- 104°F (40°C)
- Serial Port
- Yes
- Circuit Breaker
- Yes
- Waveform Type
- Pure Sine Wave, Sine Wave
- Form Factor
- Rack/Tower
- Emergency Power OFF
- Yes
- Protection Type
- EMI / RFI, Brownout, Black Out, Under Voltage, Surge, Over Voltage
- Package Contents
- SMC15002URM UPS System, USB Cable, 2 & 4 Post Rackmount Installation Hardware, Instruction Manual
- Sound Emission (A-Weighted)
- 45 dB(A)
- Package Includes

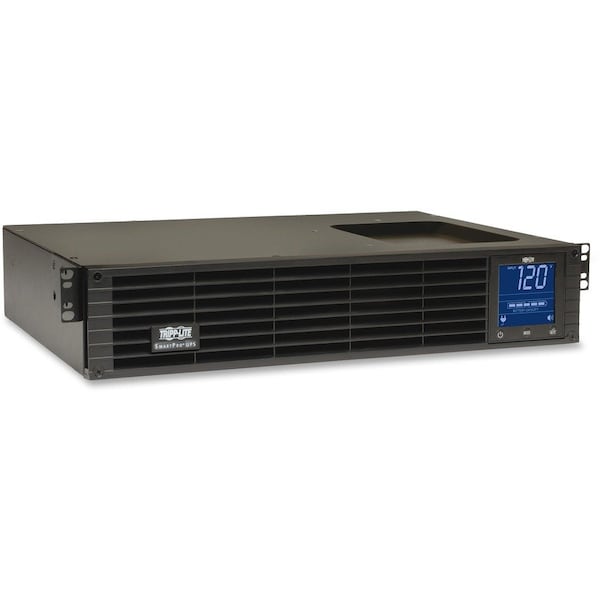

- SMC15002URM SmartPro 120V 1.5kVA 1kW Line-Interactive Sine Wave UPS;USB cable;UPSHDEARKIT mounting hardware;Owner's manual
- UPS Applications
- Audio/Video; Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
- Product Compliance
- FCC Part 15 Class A (USA)
- Grounding Details
- Back panel grounding lug
- Output Capacity (VA)
- 1500
- Product Certifications
- CSA (Canada); NOM (Mexico); UL 1778
- Output Capacity (Watts)
- 1000
- Includes
- SMC15002URM UPS System, USB Cable, 2 & 4 Post Rackmount Installation Hardware, Instruction Manual
