- Item

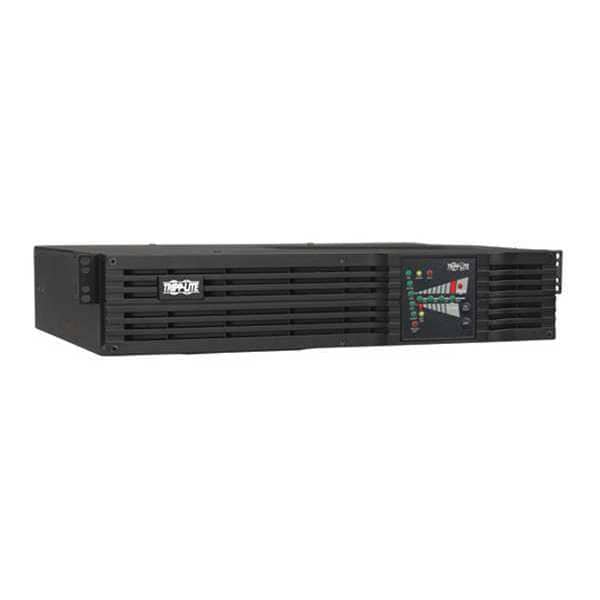

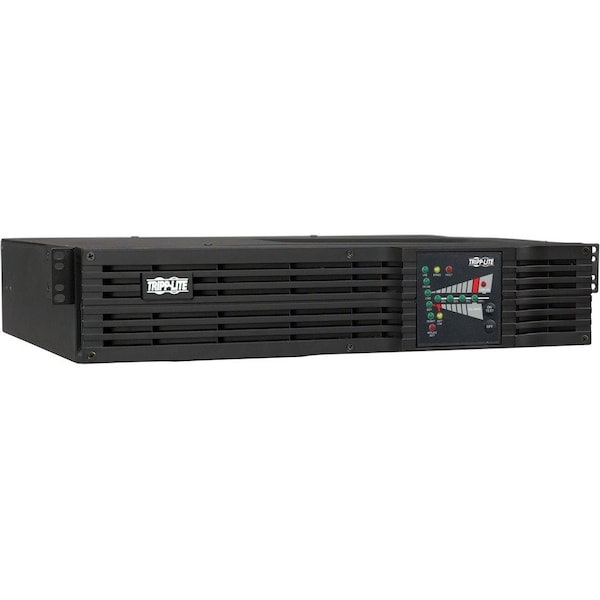

- Smart UPS
- UPS Type
- Online
- Power Rating
- 1500VA
- Mounting
- Rack
- Wattage
- 1200 W
- Input Voltage
- 120V AC
- Output Voltage
- 120V AC
- Backup Time (Half/Full Load)
- 14 min/5 min
- Number of Outlets
- 6
- Hz
- 50/60 Hz
- Transfer Time
- No transfer time (0 ms.) in online, double-conversion mode
- Input Current
- 12 A
- NEMA Plug Configuration
- 5-15P
- NEMA Receptacle Configuration
- (6) 5-15R
- Standards
- UL1778 (USA), CSA (Canada), NOM (Mexico), FCC Part 15 Category A (EMI)
- Housing Material
- Steel
- Battery Type
- VRLA
- Expandable Runtime
- Yes
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Undervoltage Correction
- 2% output voltage regulation during undervoltages to 80
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
- Full Load Runtime (min.)
- 5 min. (1200w)
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Overvoltage Correction
- 2% output voltage regulation during overvoltages to 150
- UPS AC Suppression Joule Rating
- 600
- Nominal Input Voltage(s) Supported
- 100V AC; 110V AC; 120V AC
- External Battery Pack Compatibility
- BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
- Output Capacity Details
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
- EPO Port
- RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems
- Communications Cable
- Micro-USB, USB and DB9 cabling included
- High Availability UPS Features
- Automatic inverter bypass; Hot swappable batteries
- Input Phase
- Single-Phase
- Output Watt Capacity (Watts)
- 1200
- Severe Undervoltage Correction
- 2% output voltage regulation during undervoltages to 65 (under 70% load only)
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch
- Power Factor
- 0.8
- Output kVA Capacity (kVA)
- 1.5
- Input Circuit Breakers
- 20A
- Output Voltage Regulation (Battery Mode)
- +/- 2%
- Output kW Capacity (kW)
- 1.2
- Internal UPS Replacement Battery Cartridge
- RBC94-2U
- AC Economy Mode Efficiency Rating (100% Load)
- 0.95
- Frequency Compatibility Details
- Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Communications Interface
- Contact closure; DB9 Serial; EPO (emergency power off); Micro-USB; Pre-installed network card; RJ45 Network; Slot for SNMP/Web interface; USB (HID enabled); USB-A; USB-B
- EMI / RFI AC Noise Suppression
- Yes
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- UPS AC Suppression Response Time
- Instantaneous
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Primary Form Factor
- Rackmount
- Low Voltage Transfer to Battery Power (Setpoint)
- 80V (100% load), 65V ( <70% load)
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Individually Controllable Load Banks
- Yes
- Switches
- 2 switches control off/on power status and alarm-cancel/self-test operation. LX Platform Interface: Recessed reset switch for interface reboot and factory reset
- AC Economy Mode BTU / Hr. (Full Load)
- 216
- Nominal Output Voltage(s) Supported
- 100V; 110V; 120V
- AC Mode BTU / Hr. (Full Load)
- 612
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- LED Indicators
14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats. Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).
- Crest Factor
- 0.125694444444444
- Cooling Method
- Fan
- Battery Mode BTU / Hr. (Full Load)
- 667
- Load Management Receptacles
- Two switchable 5-15R load banks (bank 1 - two outlets, bank 2 - four outlets)
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- Half Load Runtime (min.)
- 14 min. (600w)
- Network Monitoring Port Description
- Includes pre-installed WEBCARDLX Network Management Card; DB9 port supports RS232 and contact closure communications; Economy-mode setting option is available using PowerAlert software and DB9 Serial cable connection OR installed Network Management Card
- SNMP Compatibility
- SNMP V1, V2c, V3
- Battery Recharge Rate (Included Batteries)
- Less than 6 hours from 10% to 80% (typical, full load discharge)
- Relative Humidity
- 0 to 95%, non-condensing
- Output Volt Amp Capacity (VA)
- 1500
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Rated input current (Maximum Load)
- 12A
- High Voltage Transfer to Battery Power (Setpoint)
- 150
- Recommended Electrical Service
- 15A 120V
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Battery Access
- Front panel battery access door
- Included Mounting Accessory Description
- Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- DC System Voltage (VDC)
- 48
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount (2POSTRMKITWM); 2-4 post front rail rackmount (UPSHDEARKIT); 4 post rackmount short-depth (4POSTRAILKITWM); Tower (2-9USTAND); Wallmount (2POSTRMKITWM)
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- USB
- Yes
- Hot Swappable
- Yes
- Typical Battery Recharge Time
- 6 Hour
- Surge Energy Rating
- 600 J
- Alarm
- UPS StartUp, Remote Shutdown, Overload, Power Failure, Low Battery, UPS Fault
- Thermal Dissipation
- 178.69 W
- Load Capacity
- 1500 VA/1200 W
- Software Included
- Poweralert Software
- Maximum Operating Temperature
- 104°F (40°C)
- Circuit Breaker
- Yes
- Emergency Power OFF
- Yes
- Network Management
- SNMP Manageable
- Status Indicators
- 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information, 4-LED meter displays load and battery charge levels, LED panel rotates for viewing in rack/tower formats
- Bypass Switch
- Automatic
- Package Contents
- SU1500RTXL2UN UPS with Pre-installed SNMPWEBCARD, Poweralert Software and Cabling, Mounting Hardware For 4 Post Rack Enclosures, Instruction Manual
- Serial Port
- Yes
- Dataline Protection
- RJ-45, RJ-11
- Form Factor
- Rack/Tower
- Protection Type
- EMI / RFI, Under Voltage, Brownout, Over Voltage
- Waveform Type
- Sine Wave, Pure Sine Wave
- Total Number of Expansion Slots
- 1
- Product Compliance
- FCC Part 15 Class A (USA)
- Output Capacity (Watts)
- 1200
- Network Management Cards
- WEBCARDLX
- Output Capacity (VA)
- 1500
- UPS Applications
- Mission Critical Applications
- Product Certifications
- CSA (Canada); NOM (Mexico); UL 1778
- Package Includes
- SU1500RTXL2UN UPS with Pre-installed Network Management Card interface;USB, DB9 & EPO Cables;Mounting hardware for 4 post rack enclosures;Instruction manual
