- VA Rating - UPS Systems
- 3.0 kVA
- Item
- UPS System
- UPS Type
- Line Interactive
- Power Rating
- 3kVA
- Mounting
- Rack
- Wattage
- 3 kW
- Input Voltage
- 120V AC
- Output Voltage
- 100/110/120/125V AC
- Backup Time (Half/Full Load)
- 9 min/3 min
- Outlet Type
- UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 9
- Hz
- 60 Hz
- Automatic Volts Regulation
- Yes
- Ports
- EPO, RS232, Slot for SNMPWEBCARD, USB
- Special Features
- Cold Start Operation Supported, Hot Swappable Batteries, Individually Controllable Load Banks, Schedulable Daily Hours of Economy Mode Operation
- Footnotes
- Slot for SNMPWEBCARD
- NEMA Receptacle Configuration
- (8) 5-15/20R; (1) L5-30R
- Standards
- CE (Europe), CSA (Canada), FCC Part 15 Class B (USA), RoHS, UL1778
- NEMA Plug Configuration
- L5-30P
- Input Current
- 24 A
- Fax/Modem Line Protection
- No
- Transfer Time
- 5 msec
- Display Type
- LCD
- Includes
- (4) Post Rack Mount Installation Kits, PowerAlert Software with USB, Serial and EPO Cables
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Phase
- Single
- Capacity - Batteries
- 3000 VA/2880 W
- Input Connection
- NEMA 5-30P Plug
- Housing Material
- Steel
- Battery Type
- VRLA
- Output Circuit Breakers
- Two 20A output breakers protect 4 5-15/20R outlets each
- Half Load Runtime (min.)
- 10 min. (1440w)
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITWM ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- Input Phase
- Single-Phase
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- AC Suppression Response Time
- Instantaneous
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Communications Interface
- USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- Rated input current (Maximum Load)
- 24A
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Internal UPS Replacement Battery Cartridge
- RBC58-2U
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
- Full Load Runtime (min.)
- 3 min. (2880w)
- Relative Humidity
- 0 to 95%, non-condensing
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Battery Access
- Front panel battery access door
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Output Voltage Regulation (Line Mode)
- +6%, -14%
- Nominal Input Voltage(s) Supported
- 120V AC
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Output Voltage Regulation (Battery Mode)
- +/-5%
- AC Mode Efficiency Rating (100% Load)
- 0.96
- UPS AC Suppression Joule Rating
- 570
- Load Management Receptacles
- Two switchable single outlet 5-15/20R load banks
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Battery Replacement Description
- Hot-swappable, replaceable batteries
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Battery Recharge Rate (Included Batteries)
- Less than 5 hours from 10 to 90% (typical, full load discharge)
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
- Audible Noise
- 45 dBA maximum, front side 1m
- External Battery Pack Compatibility
- BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
- Battery Mode BTU / Hr. (Full Load)
- 1736
- Recommended Electrical Service
- 30A 120V
- Output kVA Capacity (kVA)
- 3
- Included Mounting Accessory Description
- Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- EMI / RFI AC Noise Suppression
- Yes
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Primary Form Factor
- Rackmount
- Overvoltage Correction
- Input voltages between 127 and 145 are reduced by 12%
- Output Volt Amp Capacity (VA)
- 3000
- Output kW Capacity (kW)
- 2.88
- Cooling Method
- Fan
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- Individually Controllable Load Banks
- Yes
- High Voltage Transfer to Battery Power (Setpoint)
- 145
- Low Voltage Transfer to Battery Power (Setpoint)
- 83
- Output Watt Capacity (Watts)
- 2880
- AC Mode BTU / Hr. (Full Load)
- 409
- Power Factor
- 0.96
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
- Expandable Runtime
- Yes
- Undervoltage Correction
- Input voltages between 108 and 96 are boosted by 12%
- Severe Undervoltage Correction
- Input voltages between 83 and 95 are boosted by 24%
- Switches
- 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
- DC System Voltage (VDC)
- 48
- High Availability UPS Features
- Hot swappable batteries
- Communications Cable
- USB, DB9 and EPO cabling included
- Network Management
- SNMP Manageable
- Software Included
- PowerAlert Software
- USB
- Yes
- Load Capacity
- 3000 VA/3000 W
- Serial Port
- Yes
- Form Factor
- Rack-mountable
- Typical Battery Recharge Time
- 5 Hour
- Hot Swappable
- Yes
- Package Contents

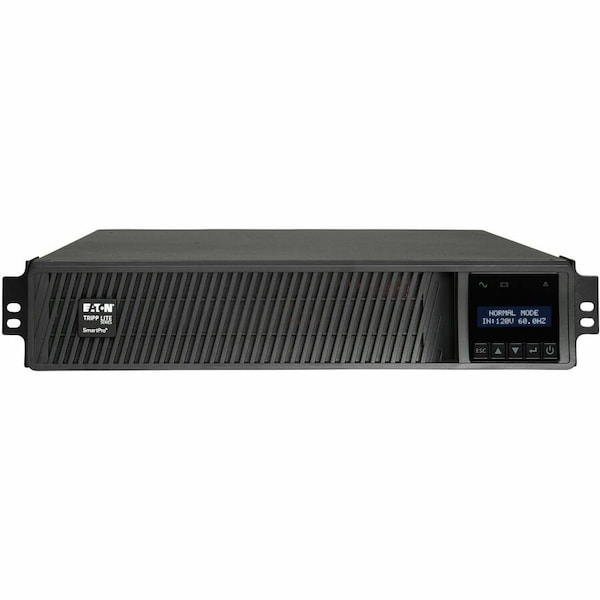

- SmartPro SMART3000RMXL2U 3000VA Rack-mountable UPS, UPS power module with internal batteries, PowerAlert Software CD with USB, DB9 and EPO cabling, 4 x post rackmount installation accessories, Owner's manual with warranty information
- Emergency Power OFF
- Yes
- Output Capacity (Watts)
- 3000
- Nominal Input Voltage Description
- 80V-151V; adjustable to 70-153V
- Package Includes
- 3000VA 3000W 120V Line-Interactive UPS;USB cable;DB9 cable;Rack-mounting hardware;Tower support stands;Safety instructions;Quick Start Guide
- Grounding Details
- Rear panel grounding lug
- Product Certifications
- CSA (Canada); UL 1778
- Storage Elevation (ft.)
- 0-32,808
- UPS Applications
- High-End Desktop/Small Network; Large Network
- Operating Elevation (ft.)
- 0-10,000
- Output Capacity (VA)
- 3000
- Product Compliance
- CE (Europe); FCC Part 15 Class B (USA)
- Emergency Power Off (EPO)/Remote On-Off (ROO)
- Yes
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Includes Battery
- Battery Included
- Receptacle Configuration
- 5-20R, L5-30R
- Battery Chemistry
- Valve Regulated Lead Acid
- Operating Temperature - Minimum
- 32 Degrees F
- Audible Alarm Conditions
- Low Battery, Overload, Power Outage
- Data Line Protection
- Includes Data Line Surge Protection
- Manufacturer Warranty
- 2 yr, 3 yr Registration
- Run Time - Full Load
- 3 min
- Battery Recharge Time
- 5 hr
- Transfer Time - Maximum
- 4 msec
- Number of Outlets - Surge Only
- 7
- Surge Suppression Rating
- 380 J
- Frequency
- 60 Hz
- Input Current - Maximum
- 24 A
- Power Rating - Apparent
- 3 kVA
- Number of Outlets - UPS
- 7
- Power Rating - Real
- 2.88 kW
- Plug Configuration
- L5-30P
- External Battery Compatible
- External Battery Pack Compatible
- Operating Temperature - Maximum
- 104 Degrees F
- Transfer Time - Minimum
- 1 msec
- Output Ports Included
- EPO, RS-232, SNMP, USB
- Run Time - Half Load
- 9 min
