- Item
- Smart UPS
- UPS Type
- Line Interactive
- Power Rating
- 1.5kVA
- Mounting
- Rack/Tower
- Wattage
- 1350 W
- Input Voltage
- 120V AC
- Output Voltage
- 110/115/120V
- Backup Time (Half/Full Load)
- 14 min/4.9 min
- Outlet Type
- UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 8
- Footnotes
- 3,4,7,8,9
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Hz
- 60 Hz
- NEMA Receptacle Configuration
- (8) 5-15R
- Phase
- Single
- VA Rating - UPS Systems
- 1.5 kVA
- Transfer Time
- 2 to 4 msec
- Automatic Volts Regulation
- Yes
- Ports
- DB9 Serial, EPO, SNMP/Web Slot, USB
- Input Current
- 12 A
- Includes

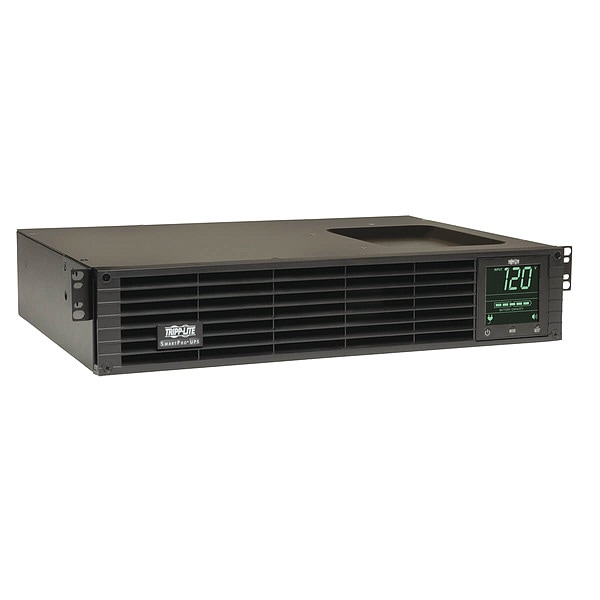

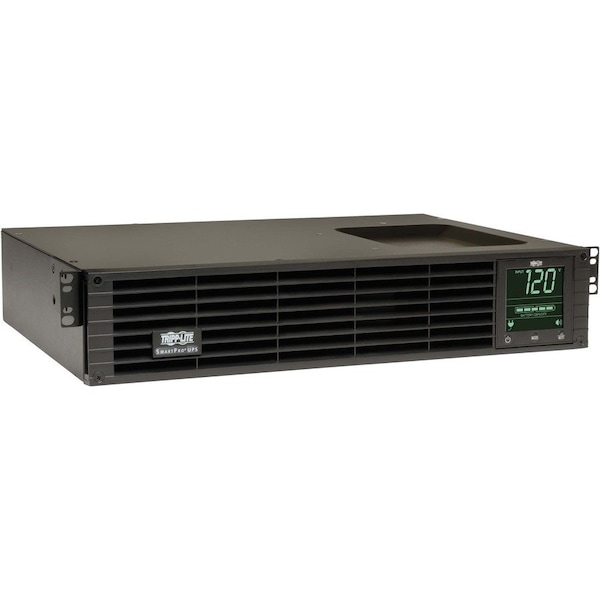

- DB9 Cable, EPO Cables, Mounting Hardware, SM1500RMXL2UTAA SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, USB Cables
- Standards
- CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, Trade Agreements Act (TAA), UL1778
- Display Type
- LCD
- NEMA Plug Configuration
- 5-15P
- Fax/Modem Line Protection
- No
- Special Features
- Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output, Extended Runtime w/BP36V15-2U, BP36V42-3U
- Voltage
- 120
- Capacity - Batteries
- 1500 VA/1350 W
- Input Connection
- 10 ft Cord with NEMA 5-15P Plug
- Battery Type
- VRLA
- Housing Material
- Steel
- Relative Humidity
- 0 to 95%, non-condensing
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Input Circuit Breakers
- 15A
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- High Availability UPS Features
- Hot swappable batteries
- Load Management Receptacles
- Two switchable two-outlet 5-15R load banks
- Undervoltage Correction
- Input voltages between 95 and 108 are boosted by 12%
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); TAA Compliant
- Battery Access
- Front panel battery access door
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- AC Mode BTU / Hr. (Full Load)
- 237
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
- Output Watt Capacity (Watts)
- 1350
- Severe Undervoltage Correction
- Input voltages between 83 and 94 are boosted by 24%
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Internal UPS Replacement Battery Cartridge
- RBC93-2U
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Nominal Input Voltage(s) Supported
- 120V AC
- Full Load Runtime (min.)
- 4.9 min. (1350w)
- Output Capacity Details
- Output is reduced to 1200 watts maximum when used with external battery packs
- Recommended Electrical Service
- 15A 120V
- UPS AC Suppression Joule Rating
- 570
- Expandable Runtime
- Yes
- Low Voltage Transfer to Battery Power (Setpoint)
- 83
- AC Mode Efficiency Rating (100% Load)
- 0.95
- Audible Noise
- 45 dBA maximum, front side 1m
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- High Voltage Transfer to Battery Power (Setpoint)
- 145
- EMI / RFI AC Noise Suppression
- Yes
- Output Voltage Regulation (Line Mode)
- -14%, +6%
- UPS AC Suppression Response Time
- Instantaneous
- Output kVA Capacity (kVA)
- 1.5
- Cooling Method
- Fan
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Power Factor
- 0.9
- Switches
- 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Half Load Runtime (min.)
- 14 min. (675w)
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- DC System Voltage (VDC)
- 36
- Output kW Capacity (kW)
- 1.35
- Output Volt Amp Capacity (VA)
- 1500
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- External Battery Pack Compatibility
- BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27 -2US (multi-pack compatible)
- Battery Recharge Rate (Included Batteries)
- Less than 4.5 hours from 10% to 90%
- Rated input current (Maximum Load)
- 12A
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- Input Phase
- Single-Phase
- Included Mounting Accessory Description
- Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- Grounding Lug
- Back panel grounding lug
- Communications Interface
- USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- Communications Cable
- USB and DB9 cabling included
- Primary Form Factor
- Rackmount
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Battery Mode BTU / Hr. (Full Load)
- 751
- Overvoltage Correction
- Input voltages between 127 and 145 are reduced by 12%
- Individually Controllable Load Banks
- Yes
- Hot Swappable
- Yes
- Form Factor
- Rack/Tower
- Emergency Power OFF
- Yes
- Network Management
- SNMP Manageable
- TAA Compliant
- Yes
- USB
- Yes
- Load Capacity
- 1500 VA/1350 W
- Software Included
- PowerAlert Software
- Serial Port
- Yes
- Typical Battery Recharge Time
- 4.50 Hour
- Package Contents
- SmartPro SM1500RMXL2UTAA 1500 VA Tower/Rack Mountable UPS, PowerAlert Software, USB Cable, Serial Cable, Mounting Hardware for 4 Post Rackmount Installation, Cable for Emergency Power Off Interface, Instructional Manual with Warranty Information
- Product Compliance
- FCC Part 15 Class B (USA); Trade Agreements Act (TAA)
- UPS Applications
- Large Network; High-End Desktop/Small Network
- Grounding Details
- Back panel grounding lug
- Output Capacity (VA)
- 1500
- Output Capacity (Watts)
- 1350
- Product Certifications
- CSA (Canada); NOM (Mexico); UL 1778
- Package Includes
- SM1500RMXL2UTAA SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS;USB cable;DB9 cable;EPO cable;Mounting hardware;Owner's manual
- Data Line Protection
- Includes Data Line Surge Protection
- Power Rating - Real
- 1.35 kW
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Surge Suppression Rating
- 570 J
- Receptacle Configuration
- 5-15R
- Number of Outlets - Surge Only
- 8
- Output Ports Included
- DB9 Serial, EPO, SNMP, USB
- External Battery Compatible
- External Battery Pack Compatible
- Battery Chemistry
- Valve Regulated Lead Acid
- Input Current - Maximum
- 12 A
- Operating Temperature - Maximum
- 104 Degrees F
- Power Rating - Apparent
- 1.5 kVA
- Transfer Time - Maximum
- 4 msec
- Includes Battery
- Battery Included
- Frequency
- 60 Hz
- Operating Temperature - Minimum
- 32 Degrees F
- Number of Outlets - UPS
- 8
- Battery Recharge Time
- 4.5 hr
- Plug Configuration
- 5-15P
- External Battery Pack Part Number
- BP36V15-2U, BP36V27-2US, BP36V42-3U
- Run Time - Full Load
- 4.9 min
- Transfer Time - Minimum
- 1 msec
- Manufacturer Warranty
- 2 yr
- Audible Alarm Conditions
- Power Outage, Low Battery, Overload
