UPS Type
On-Line/Double Conversion
Input Voltage
100/110/120VAC
Output Voltage
100/110/120VAC
Backup Time (Half/Full Load)
14 min/5 min
Fax/Modem Line Protection
Yes
NEMA Plug Configuration
5-15p
Input Voltage - UPS Systems
100V AC, 110V AC, 120V AC
Output Voltage - UPS Systems
100V AC, 110V AC, 120V AC
Special Features
True Online Protection with Pure Sine Wave Output, Extended Runtime Option with BP48V24-2U, BP48V60RT-3U, Use in Economy-Mode Saves Operating Costs,
Mounting - UPS Systems
Rack/Tower
Watts - UPS Systems
1.2 kW
VA Rating - UPS Systems
1.5 kVA
Standards
CSA, FCC Part 15 Category A, NOM, UL 1778
Ports
Contact Closure, DB9 Serial, EPO, RS232, SNMP/Web Slot, USB (HID Enabled)
Automatic Volts Regulation
Yes
Includes
1 x 6 ft DB9 Cable, 1 x 6 ft USB Cable, 4-Post Rack Mounting Hardware, PowerAlert Software CD
Outlet Type - UPS Systems
UPS/Surge
NEMA Receptacle Configuration
5-15R
Input Connection
10 ft Cord with NEMA 5-15P Plug
UPS AC Suppression Joule Rating
600
AC Mode BTU / Hr. (Full Load)
612
Nominal Output Voltage(s) Supported
100V; 110V; 120V
High Availability UPS Features
Automatic inverter bypass; Hot swappable batteries
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Output AC Waveform (AC Mode)
Sine wave
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Output Capacity Details
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
Communications Interface
USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Battery Replacement Description
Hot-swappable, user replaceable batteries
Overvoltage Correction
2% output voltage regulation during overvoltages to 150
Undervoltage Correction
2% output voltage regulation during undervoltages to 80
Output Voltage Regulation (Line Mode)
+/- 2%
UPS Housing Material
Steel
External Battery Pack Compatibility
BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
Input Circuit Breakers
20A
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Input Frequency
50/60Hz +/-5%
Relative Humidity
0 to 95%, non-condensing
Frequency Compatibility
50 / 60 Hz
Individually Controllable Load Banks
Yes
UPS AC Suppression Response Time
Instantaneous
Voltage Regulation Description
Online, double-conversion power conditioning
Output Receptacles
(6) 5-15R
Output Voltage Regulation (Economy Line Mode)
+/- 10%
LED Indicators
14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace battery and fault status information; 4-LED meter displays load and battery charge levels; LED panel rotates for viewing in rack/tower formats
Output AC Waveform (Battery Mode)
Pure Sine wave
PowerAlert Software
For local monitoring via the UPS™s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert
Half Load Runtime (min.)
14 min. (600w)
Severe Undervoltage Correction
2% output voltage regulation during undervoltages to 65 (under 70% load only)
Recommended Electrical Service
15A 120V
Communications Cable
USB and DB9 cabling included
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
Output Watt Capacity (Watts)
1200
Primary Form Factor
Rackmount
High Voltage Transfer to Battery Power (Setpoint)
150
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
UPS Input Connection Type
5-15P
Output Voltage Regulation (Battery Mode)
+/- 2%
Nominal Input Voltage(s) Supported
100V AC; 110V AC; 120V AC
Output kW Capacity (kW)
1.2
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Low Voltage Transfer to Battery Power (Setpoint)
80V (100% load), 65V ( <70% load)
EMI / RFI AC Noise Suppression
Yes
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Frequency Compatibility Details
Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start
Rated input current (Maximum Load)
12A
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications; Economy-mode setting option is available using PowerAlert software and DB9 Serial cable connection OR via select Network Management Card options
Battery Recharge Rate (Included Batteries)
Less than 6 hours from 10% to 80% (typical, full load discharge)
AC Economy Mode Efficiency Rating (100% Load)
0.95
Crest Factor
0.125694444444444
Output kVA Capacity (kVA)
1.5
Battery Mode BTU / Hr. (Full Load)
667
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Switches
2 switches control off/on power status and alarm-cancel/self-test operation
Load Management Receptacles
Two switchable 5-15R load banks (bank 1 - two outlets, bank 2 - four outlets)
Internal UPS Replacement Battery Cartridge
RBC94-2U
Full Load Runtime (min.)
5 min. (1200w)
DC System Voltage (VDC)
48
Battery Access
Front panel battery access door
AC Economy Mode BTU / Hr. (Full Load)
216
Output Volt Amp Capacity (VA)
1500
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Nominal Voltage Details
120V default
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Included Mounting Accessory Description
Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch
Dataline Protection
RJ-45
Backup/Run Time (Full Load)
5 Minute
Product Name

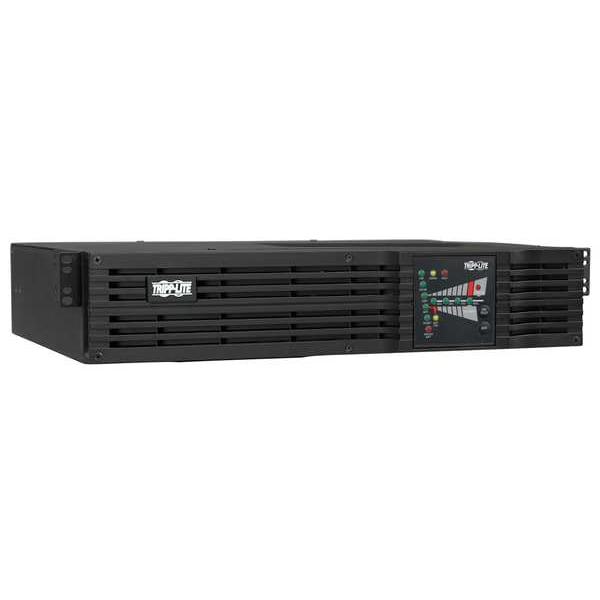

SmartOnline SU1500RTXL2Ua 1500VA Tower/Rack-mountable UPS
Additional Information
SmartOnline high-performance UPS system is ideal for critical voice, data, medical and industrial network applications, Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time, Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types
Package Contents
SMART ONLINE UPS 1500VA XL RM 2U TWR 120V 5-15P 6OUT USB SER SLOT, SU1500RTXL2Ua Online Double-Conversion UPS System, PowerAlert Software and cabling, Mounting hardware for 4 post rack enclosures, Instruction manual with warranty information
Receptacle Detail
6 x NEMA 5-15R
Software Included
PowerAlert Software
Typical Battery Recharge Time
5 Hour
Backup/Run Time (Half Load)
14 Minute
Network Management
SNMP Manageable
Plug/Connector Type
NEMA 5-15P
Product Type
Double Conversion Online UPS
Load Capacity
1500 VA/1200 W
