CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778
Ports
USB (HID enabled)
Hz
60 Hz
Special Features
LCD Display Indicates Input Voltage, Battery Capacity and A Variety of Operating Conditions, Full Load Efficiency Rating of 98%, Poweralert Software
Phase
Single
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
NEMA Plug Configuration
5-15P
Footnotes
4,6,15
Input Current
12 A
Includes

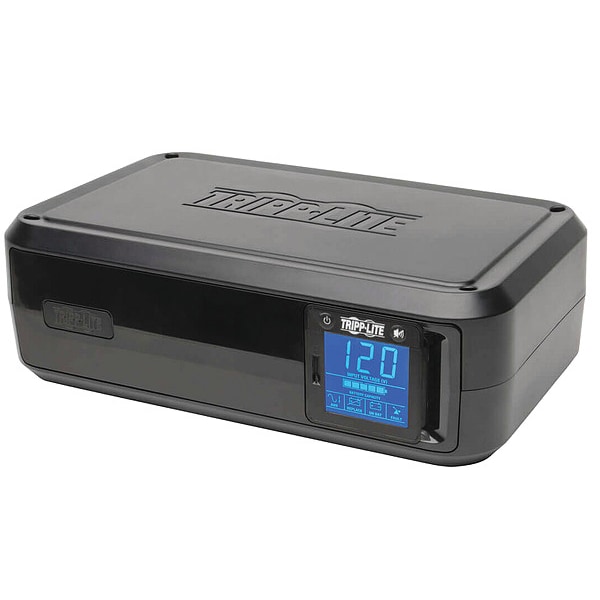

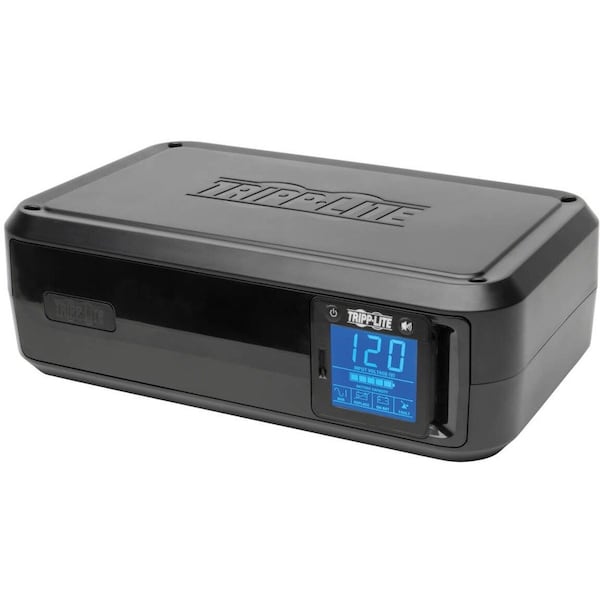

SMART1000LCD SmartProLCD 120V 1000VA/500W Line-Interactive UPS, Telephone Cord, USB Cables
Transfer Time
2 to 4 msec
NEMA Receptacle Configuration
(8) 5-15R
Fax/Modem Line Protection
Yes
Display Type
LCD
Voltage
120
Input Connection
6 ft Cord with NEMA 5-15P Plug
Housing Color
Black
Housing Material
ABS
Battery Type
VRLA
Internal UPS Replacement Battery Cartridge
RBC51
Rated input current (Maximum Load)
12A
Undervoltage Correction
Input voltages between 89 and 104 are boosted by 14%
AC Mode BTU / Hr. (Full Load)
61
Expandable Runtime
No
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Audible Alarm
Audible alarm indicates power-failure and low-battery status; alarm can be disabled using PowerAlert software
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Communications Cable
USB cable included
Battery Access
Battery access door
Battery Mode BTU / Hr. (Full Load)
510
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Individually Controllable Load Banks
No
Installation Form Factors Supported with Included Accessories
Tower
Output AC Waveform (Battery Mode)
PWM sine wave
DC System Voltage (VDC)
12
Input Phase
Single-Phase
High Voltage Transfer to Battery Power (Setpoint)
139
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation; dimmer switch controls LCD brightness
Full Load Runtime (min.)
3 min. (500w)
Battery Replacement Description
Hot-swappable, user replaceable batteries
Half Load Runtime (min.)
10 min. (250w)
UPS AC Suppression Joule Rating
1038
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Output Voltage Regulation (Battery Mode)
+/- 5%
LED Indicators
Front panel LCD display
Recommended Electrical Service
15A 120V
Nominal Input Voltage(s) Supported
120V AC
Primary Form Factor
Tower
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
UPS AC Suppression Response Time
Instantaneous
Front Panel LCD Display
Backlighted LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status; LCD screen rotates for rack/tower viewing
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Output kVA Capacity (kVA)
1
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Output Volt Amp Capacity (VA)
1000
Hot-Swap PDU options
PDUB15 (2U / 8 5-15R outlets)
Relative Humidity
0 to 95%, non-condensing
Communications Interface
USB (HID enabled)
EMI / RFI AC Noise Suppression
Yes
Output Watt Capacity (Watts)
500
Battery Recharge Rate (Included Batteries)
Less than 16 hours from 10% to 90%
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
Low Voltage Transfer to Battery Power (Setpoint)
89
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); Coax jacks (1 set)
AC Mode Efficiency Rating (100% Load)
0.97
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Package Contents
SmartPro 1000 VA Tower Digital UPS, SMART1000LCD Digital UPS, USB and phone cabling, Manual with warranty information
Additional Information
Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 89V or less, switches back to AC mode as line voltage increases to 94V or higher, High voltage transfer to battery power: Switches to battery mode as line voltage increases to 139V or higher, switches back to AC mode as line voltage decreases to 135V or lower, Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common, Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure, Switches: Includes 2 front panel switches - one main on/off power switch and one dual function "alarm cancel" / "self test" button
Surge Energy Rating
1038 J
Form Factor
Tower
Battery Life
6 Year
USB
Yes
Typical Battery Recharge Time
8 Hour
Load Capacity
1000 VA/500 W
Assembly Required
No
Maximum Operating Temperature
122°F (50°C)
Dataline Protection
RJ-11
Surge Suppression Rating
1,038 J
Frequency
60 Hz
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Includes Battery
Battery Included
Operating Temperature - Maximum
104 Degrees F
Number of Outlets - UPS
8
Battery Recharge Time
16 hr
External Battery Compatible
Not External Battery Pack Compatible
Operating Temperature - Minimum
32 Degrees F
Manufacturer Warranty
2 yr
Run Time - Full Load
3 min
Power Rating - Apparent
1 kVA
Audible Alarm Conditions
Low Battery, Overload, Power Outage
Battery Chemistry
Valve Regulated Lead Acid
Input Current - Maximum
12 A
Number of Outlets - Surge Only
8
Plug Configuration
5-15P
Output Ports Included
USB
Power Rating - Real
500 W
Data Line Protection
Includes Data Line Surge Protection
Transfer Time - Maximum
3 msec
Receptacle Configuration
5-15R
Description
Smart UPS, Line Interactive, Power Rating 1 kVA, Wattage 500 W, Input Voltage 120V AC, Output Voltage 115V AC, 120V AC, Backup Time (Half/Full Load) 10 min/3 min, Mounting Tower, Outlet Type (4) Surge, (4) UPS/Surge, Number of Outlets 8, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection Yes, Transfer Time 2 to 4 msec, Width 4 in, Depth 7 in, Height 12 in, Cord Length 6 ft
