- Item
- Smart UPS
- UPS Type
- Online
- Power Rating
- 20kVA
- Mounting
- Rack
- Wattage
- 18 kW
- Input Voltage
- 220V AC
- Output Voltage
- 230/208/200/240/220V AC
- Backup Time (Half/Full Load)
- 12.50 min/4.30 min
- Outlet Type
- Hardwired
- Number of Outlets
- 10
- Transfer Time
- No transfer time (0 ms.) in online, double-conversion mode
- NEMA Receptacle Configuration
- (2) L6-30R; (8) C19
- Hz
- 50/60 Hz
- Input Current
- 112.20 A
- Housing Material
- Steel
- Battery Type
- VRLA
- UPS Input Connection Description
- 3 wire single phase input (L1, L2, G)
- PowerAlert Software
- For local monitoring via the UPS™s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Expandable Runtime
- Yes
- Relative Humidity
- 0 to 95%, non-condensing
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Input Phase
- Single-Phase
- Power Factor
- 0.9
- Undervoltage Correction
- Corrects undervoltages as low as 100V
- Network Monitoring Port Description
- Applications utilizing any supported network management card option, require the installation of two of the same model network card to install one card per included UPS power module; RELAYIOMINI installation requires removal of panel containing USB ports on each included UPS power module
- Included Mounting Accessory Description
- 4 sets of adjustable 4 post rack rails included (one for each included 3U module)
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Communications Interface
- USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- Front Panel LCD Display
- Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH and PORTUGUESE (see manual)
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module replacement
- Half Load Runtime (min.)
- 12.5 minutes (9000 watts)
- Nominal Output Voltage(s) Supported
- 200V; 208V; 240V
- Nominal Input Voltage(s) Supported
- 200V AC; 208V AC; 240V AC
- Crest Factor
- 0.125694444444444
- Battery Recharge Rate (Included Batteries)
- Less than 6 hours from 10% to 90% (typical, full load discharge)
- Operating Elevation (ft.)
- 0-3000m (0 to 10,000 ft.)
- LED Indicators
- 6 LEDs indicate line power, online mode, bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options
- Audible Alarm
- Unique audible alarms for all major UPS, environmental and power conditions (see manual)
- EMI / RFI AC Noise Suppression
- Yes
- Output Watt Capacity (Watts)
- 18000
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Output Circuit Breakers
- Two built-in 30A breakers protect one L6-30R outlet each; Eight built-in 20A breakers protect one C19 outlet each
- Output kVA Capacity (kVA)
- 20
- High Voltage Transfer to Battery Power (Setpoint)
- 300V
- DC System Voltage (VDC)
- 240
- Operating Elevation (m)
- 0-3000 m
- Output Volt Amp Capacity (VA)
- 20000
- Network Management Cards
- SNMPWEBCARD; TLNETCARD; WEBCARDLX; MODBUSCARD; RELAYIOCARD
- Battery Mode BTU / Hr. (Full Load)
- 9185
- AC Mode BTU / Hr. (Full Load)
- 6830
- Cooling Method
- Fans
- Full Load Runtime (min.)
- 4.3 minutes (18,000 watts)
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Output Voltage Regulation (Battery Mode)
- +/- 2%
- Alarm Cancel Operation
- Alarm cancel switch
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI)
- Recommended Electrical Service
- 125A @ 200V, 208V, or 240V (L1, L2, G)
- High Availability UPS Features
- Automatic inverter bypass; Battery Independent Restart; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- UPS AC Suppression Response Time
- Instantaneous
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND)
- Output Capacity Details
Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less
- Low Voltage Transfer to Battery Power (Setpoint)
- 100V
- Audible Noise
- 60 dBA at front side 1 meter
- AC Mode Efficiency Rating (100% Load)
- 0.9
- Expandable Battery Runtime
- Runtime is expandable with external battery packs
- Overvoltage Correction
- Corrects overvoltages up to 300V
- Battery Replacement Description
- Hot-swappable, user replaceable external battery packs
- External Battery Pack Compatibility
- BP240V10RT3U; BP240V787C-1PH
- Output kW Capacity (kW)
- 18
- Voltage Regulation Description
- 2% output voltage regulation in standard online, double-conversion mode
- UPS AC Suppression Joule Rating
- 2565
- UPS Certification Details
- IEC 61000-4-5 1995 B Surge Immunity
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Individually Controllable Load Banks
- No
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Communications Cable
- USB, DB9 serial and EPO cables included
- Frequency Compatibility Details
- Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
- Rated input current (Maximum Load)
- 112.2A (200V), 108A (208V), 102A (220V), 97.6A (230V), 93.6A (240V)
- Primary Form Factor
- Rackmount
- Expandable Runtime Description
- For best results, add external batteries in multiples of two so that both included 10kVA power modules have an equal number and type of connected battery packs
- Emergency Power OFF
- Yes
- Typical Battery Recharge Time
- 8 Hour
- USB
- Yes
- Bypass Switch
- Automatic, Manual
- Load Capacity
- 20 kVA
- Network Management
- SNMP Manageable
- Output Frequency
- 60 Hz
- Additional Information
- Output Receptacles: 8 x C19
- Package Contents

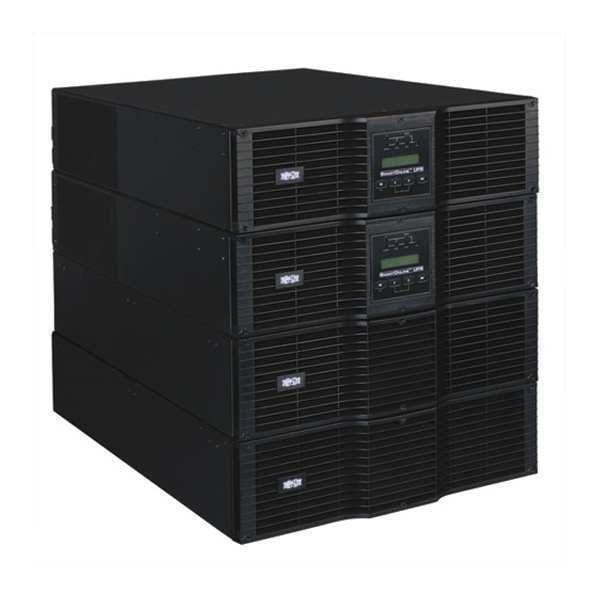

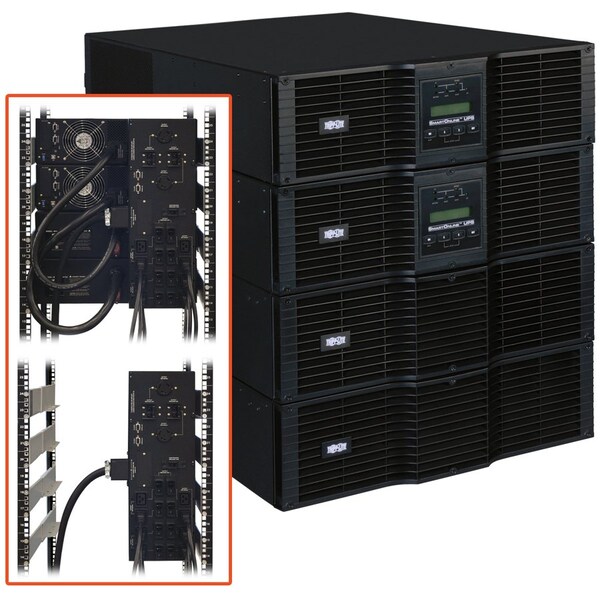

- SmartOnline EZ SU20KRT 20kVA Tower/Rack Mountable UPS, 2 x Power Modules, 2 x Battery Packs, L6-30R / C19 parallel PDU with Bypass switch, PowerAlert Software CD, USB Cable, Serial Cable, EPO Cable, 4 x Sets of Adjustable 4 Post Rack Rails
- Serial Port
- Yes
- Modular Slots
- Communications Slot
- Input Frequency
- 60 Hz
- Form Factor
- Rack/Tower
- Product Series
- EZ
- Software Included
- PowerAlert Software
- Package Includes
- Two SU10000RT3UPM UPS power modules;Two BP240V10RT3U battery packs;SUPDMB20K parallel PDU with Bypass switch;4-post rackmount installation kits;USB, DB9 & EPO Cabling
- UPS Applications
- Mission Critical Applications
- Output Capacity (Watts)
- 18000
- Output Capacity (VA)
- 20000
- Product Compliance
- FCC Part 15 Class A (USA)
- Product Certifications
- IEC 61000; CSA (Canada); UL 1778
