- VA Rating - UPS Systems
- 1.5 kVA
- Item
- UPS System
- UPS Type
- Online/Double Conversion
- Power Rating
- 1.5kVA
- Mounting
- Rack
- Wattage
- 1.35 kW
- Input Voltage
- 100/115/120/127V AC
- Output Voltage
- 100/110/115/120/127V AC
- Backup Time (Half/Full Load)
- 16.5 min/5.9 min
- Outlet Type
- UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 6
- Display Type
- LCD
- Automatic Volts Regulation
- Yes
- NEMA Receptacle Configuration
- (6) 5-15R
- Phase
- Single
- Hz
- 50/60 Hz
- NEMA Plug Configuration
- 5-15P
- Fax/Modem Line Protection
- Yes
- Ports
- DB9 Serial, EPO, USB
- Includes
- DB9 Cable, USB Cables
- Transfer Time
- 0 msec
- Input Current
- 12 A
- Special Features
- Hot-Swappable Batteries
- Standards
- CE (Europe), cUL, FCC (USA), REACH, RoHS, UL
- Capacity - Batteries
- 1500 VA/1350 W
- Input Connection
- NEMA 5-15P Plug
- Battery Type
- VRLA
- Housing Material
- Steel
- Battery Mode BTU / Hr. (Full Load)
- 814
- Output kW Capacity (kW)
- 1.35
- Output Watt Capacity (Watts)
- 1350
- Low Voltage Transfer to Battery Power (Setpoint)
- 55V (33% load), 70V (70% load), 100V (100% load)
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Rated input current (Maximum Load)
- 12A
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
- AC Economy Mode Efficiency Rating (100% Load)
- 0.97
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Internal UPS Replacement Battery Cartridge
- RBC48-SUTWR
- Battery Recharge Rate (Included Batteries)
- Less than 3 hours from 10% to 90% (typical, full load discharge)
- Full Load Runtime (min.)
- 4.5 min. (1350w)
- UPS AC Suppression Joule Rating
- 570
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications
- Relative Humidity
- 0 to 95%, non-condensing
- Input Phase
- Single-Phase
- Output Voltage Regulation (Battery Mode)
- +/- 3%
- Primary Form Factor
- Tower
- Communications Cable
- USB and DB9 cabling included
- Frequency Compatibility Details
ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency when input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal.
- UPS AC Suppression Response Time
- Instantaneous
- Recommended Electrical Service
- 15A 120V
- High Availability UPS Features
- Automatic inverter bypass; Hot swappable batteries
- Battery Access
- Battery access door
- Half Load Runtime (min.)
- 14 min. (675w)
- Audible Noise
- < 50.5 dB at front side 1m
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- Nominal Input Voltage(s) Supported
- 100V AC; 110V AC; 120V AC; 127V AC
- Input Circuit Breakers
- 15A
- Expandable Runtime Description
- External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
- Crest Factor
- 0.125694444444444
- Undervoltage Correction
- 2% output voltage regulation during undervoltages to 55V (33% load), 70V (70% load), 100V (100% load)
- EMI / RFI AC Noise Suppression
- Yes
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Individually Controllable Load Banks
- Yes
- Nominal Output Voltage(s) Supported
- 100V; 110V; 115V; 120V; 127V
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- Output Capacity Details
ON LINE MODE: Maximum output capacity rating is reduced to 1215W (115V), 1148W (110V) and 1080W (100V); FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 945 watts, 115V 851 watts, 110V 804 watts, 100V 756 watts). OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
- Power Factor
- 0.9
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Load Management Receptacles
- Two switchable three-outlet load banks
- Nominal Input Voltage Description
- 120V factory default
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
- AC Mode Efficiency Rating (100% Load)
- 0.9
- Expandable Runtime
- Yes
- Output kVA Capacity (kVA)
- 1.5
- Cooling Method
- Fan
- External Battery Pack Compatibility
- BP48V27-2US (multi-pack compatible); BP48V60RT-3U (multi-pack compatible)
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Operating Elevation (m)
- Up to 3000m
- Voltage Regulation Description
- Online, double-conversion power conditioning
- AC Economy Mode BTU / Hr. (Full Load)
- 142
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Overvoltage Correction
- 2% output voltage regulation during overvoltages to 150
- Communications Interface
- USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
- DC System Voltage (VDC)
- 48
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Switches
- 2 switches control off/on power status and alarm-cancel/self-test operation
- Output Volt Amp Capacity (VA)
- 1500
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- AC Mode BTU / Hr. (Full Load)
- 512
- High Voltage Transfer to Battery Power (Setpoint)
- 150
- Serial Port
- Yes
- Bypass Switch
- Automatic
- Typical Battery Recharge Time
- 3 Hour
- Hot Swappable
- Yes

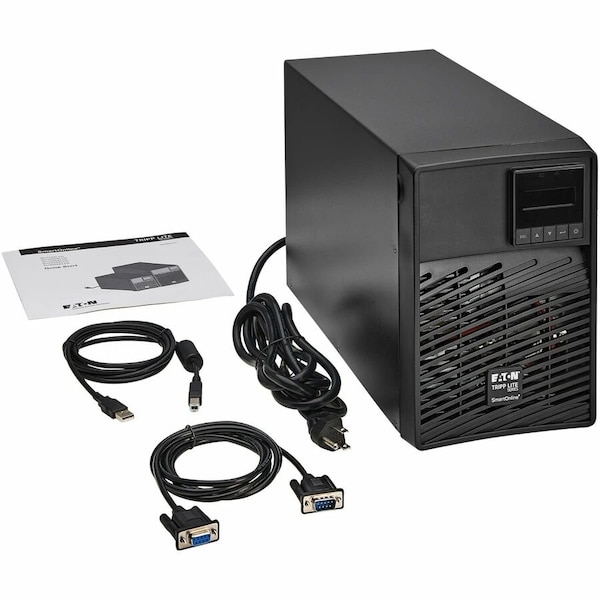

- Package Contents
- SmartOnline SU1500XL 1500VA Tower UPS, PowerAlert Software CD, Owner's Manual, EPO (Emergency Power Off) Cabling, USB Cable, Serial Cable
- Load Capacity
- 1500 VA/1350 W
- USB
- Yes
- Emergency Power OFF
- Yes
- Software Included
- PowerAlert Software
- Network Management
- SNMP Manageable
- Form Factor
- Tower
- Run Time - Full Load
- 5.9 min
- Frequency
- 50/60 Hz
- Power Rating - Apparent
- 1.5 kVA
- Number of Outlets - Surge Only
- 6
- Transfer Time - Maximum
- 0 msec
- Power Rating - Real
- 1.35 kW
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Number of Outlets - UPS
- 6
- External Battery Compatible
- External Battery Pack Compatible
- Battery Chemistry
- Valve Regulated Lead Acid
- Operating Temperature - Maximum
- 104 Degrees F
- Replacement Battery Part Number
- 744-A4312
- Operating Temperature - Minimum
- 32 Degrees F
- Surge Suppression Rating
- 190 J
- Plug Configuration
- 5-15P
- Manufacturer Warranty
- 2 yr
- Input Current - Maximum
- 12 A
- Output Ports Included
- DB9 Serial, SNMP, USB
- Receptacle Configuration
- 5-15R
- Audible Alarm Conditions
- Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup
- External Battery Pack Part Number
- BP48V
