- Item

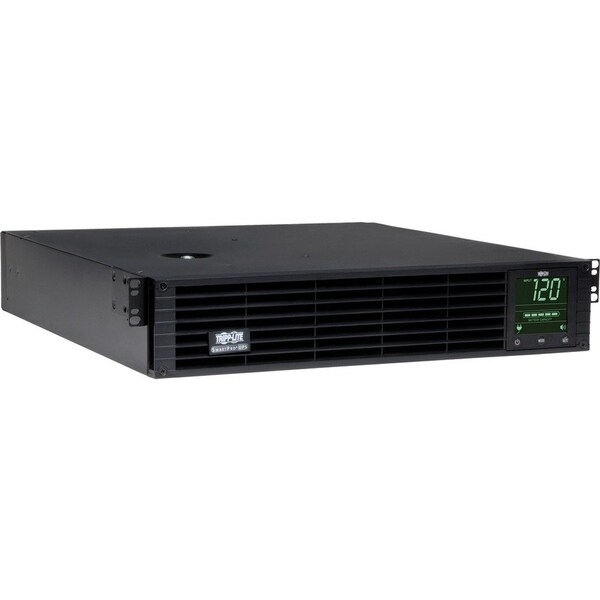

- Smart UPS
- UPS Type
- Line Interactive
- Power Rating
- 3000VA
- Mounting
- Rack
- Wattage
- 2250 W
- Input Voltage
- 120V AC
- Output Voltage
- 110/115/120V
- Backup Time (Half/Full Load)
- 10 min/3.50 min
- Number of Outlets
- 9
- NEMA Plug Configuration
- L5-30P
- Transfer Time
- 5 milliseconds (AC to battery); 1 millisecond (battery to AC)
- Hz
- 60 Hz
- Input Current
- 24 A
- Standards
- UL1778, CSA, NOM, FCC Part 15, TAA
- NEMA Receptacle Configuration
- (8) 5-15/20R; (1) L5-30R
- Housing Material
- Steel
- Battery Type
- VRLA
- High Availability UPS Features
- Hot swappable batteries
- DC System Voltage (VDC)
- 48
- Network Monitoring Port
- RJ45 Network port, Micro-USB Configuration/Console port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
- Battery Access
- Front panel battery access door
- UPS Certification Details
- SAFETY STANDARD (U.S.) - UL1778:2014 (5th Ed) R10.17; SAFETY STANDARD (CANADA) - CAN/CSA-C22.2 No. 107.3-14 (3rd Ed) + GI1 / FCC/ICES COMPLIANT - CLASS A
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Rated input current (Maximum Load)
- 24A
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Half Load Runtime (min.)
- 10 min. (1125w)
- Output Watt Capacity (Watts)
- 2250
- Expandable Runtime
- Yes
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Operating Elevation (m)
- 0 - 3000 m
- SNMP Compatibility
- SNMP V1, V2c, V3
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
- Power Factor
- 0.75
- Relative Humidity
- 0 to 95%, non-condensing
- Load Management Receptacles
- Two switchable single-outlet load banks
- Recommended Electrical Service
- 30A 120V
- AC Mode BTU / Hr. (Full Load)
- 189
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in Serial or USB communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert. LX Platform Interface: PowerAlert Device Manager 15 (PADM15)
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Network Monitoring Port Description
- Includes pre-installed WEBCARDLX Network Management Card
- UPS AC Suppression Response Time
- Instantaneous
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Battery Mode BTU / Hr. (Full Load)
- 1356
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Overvoltage Correction
- Input voltages between 127 and 145 are reduced by 12%
- External Battery Pack Compatibility
- BP48V24-2U (limit 1); BP48V242UTAA (limit 1); BP48V27-2US (multi-pack compatible); BP48V60RT-3U (multi-pack compatible); BP48V60RT3UTAA (multi-pack compatible)
- EPO Port
- RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems
- Severe Undervoltage Correction
- Input voltages between 83 and 95 are boosted by 24%
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- AC Mode Efficiency Rating (100% Load)
- 0.98
- Output Volt Amp Capacity (VA)
- 3000
- Output kVA Capacity (kVA)
- 3
- Grounding Lug
- Includes back panel grounding lug
- Battery Recharge Rate (Included Batteries)
- Less than 4.5 hours from 10% to 90%
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); TAA Compliant; Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- Communications Interface
- DB9 Serial; EPO (emergency power off); Pre-installed network card; USB (HID enabled)
- Operating Elevation (ft.)
- 0-3000m / 0-10,000 ft.
- Primary Form Factor
- Rackmount
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- UPS AC Suppression Joule Rating
- 570
- UPS Dataline Suppression
- 1 line TEL/DSL or Ethernet
- Cooling Method
- Fan
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
- Expandable Battery Runtime
- Output with external battery pack configurations is limited to 1600 watts maximum
- Audible Noise
- 45 dBA maximum, front side 1m
- Full Load Runtime (min.)
- 3.5 min. (2250w)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
- Communications Cable
- Micro-USB, USB and DB9 cabling included
- Input Phase
- Single-Phase
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- Yes
- EMI / RFI AC Noise Suppression
- Yes
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Internal UPS Replacement Battery Cartridge
- RBC94-2U
- Low Voltage Transfer to Battery Power (Setpoint)
- 83
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- Nominal Input Voltage(s) Supported
- 120V AC
- Included Mounting Accessory Description
- Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- Output Voltage Regulation (Line Mode)
- -14%, +6%
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Switches
- 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. . LX Platform Interface: Recessed reset switch for interface reboot and factory reset
- Undervoltage Correction
- Input voltages between 108 and 96 are boosted by 12%
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Output kW Capacity (kW)
- 2.25
- Output Circuit Breakers
- Two 20A output breakers protect 4 5-15/20R outlets each
- LED Indicators
- Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).
- Emergency Power OFF
- Yes
- Waveform Type
- Pure Sine Wave
- Network Management
- SNMP Manageable
- Circuit Breaker
- Yes
- Maximum Operating Temperature
- 104°F (40°C)
- Surge Energy Rating
- 570 J
- Load Capacity
- 3000 VA/2250 W
- Protection Type
- RFI, Black Out, Over Voltage, Brownout, Under Voltage, Surge, EMI
- TAA Compliant
- Yes
- Serial Port
- Yes
- Form Factor
- Rack-mountable, Tower
- Package Contents
- SmartPro SM3000RM2UNTAA 3000 VA Tower/Rack-mountable UPS, USB, Serial & EPO Cabling, 4 x Post Rackmount Installation Kit, Instruction Manual
- Alarm
- Power Failure, Overload, UPS Fault, Remote Shutdown, Low Battery, UPS StartUp
- Hot Swappable
- Yes
- USB
- Yes
- Software Included
- PowerAlert Software
- Output Capacity (Watts)
- 2250
- UPS Applications
- Large Network
- Product Compliance
- FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
- Package Includes
- SM3000RM2UNTAA UPS System with Pre-Installed WEBCARDLX Network Interface;USB, Serial & EPO cabling;4-post rackmount installation kit;Instruction manual
- Network Management Cards
- WEBCARDLXE
- Output Capacity (VA)
- 3000
- Product Certifications
- CSA (Canada); NOM (Mexico); UL 1778
- Grounding Details
- Includes back panel grounding lug
