UPS Type
Line Interactive
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
6 min/1.5 min
Outlet Type
(2) Surge; (6) UPS/Surge
Medical Grade
Not Medical Grade Approved
NEMA Receptacle Configuration
(8) 5-15R
Special Features
Advanced Communications Ports Allow for Automatic Saves and Shutdowns, Automatic Voltage Regulation Corrects Low- and High-Voltage Conditions, Compact Housing Compatible with Easy Desktop Installation, Home Friendly Silent Alarm and LCD Touchscreen, Pure Sine Wave Output
Ports
RS232, USB (HID Enabled)
NEMA Plug Configuration
5-15P
Standards
CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RETIE (Colombia), RoHS, UL1778
Automatic Volts Regulation
Yes
Includes

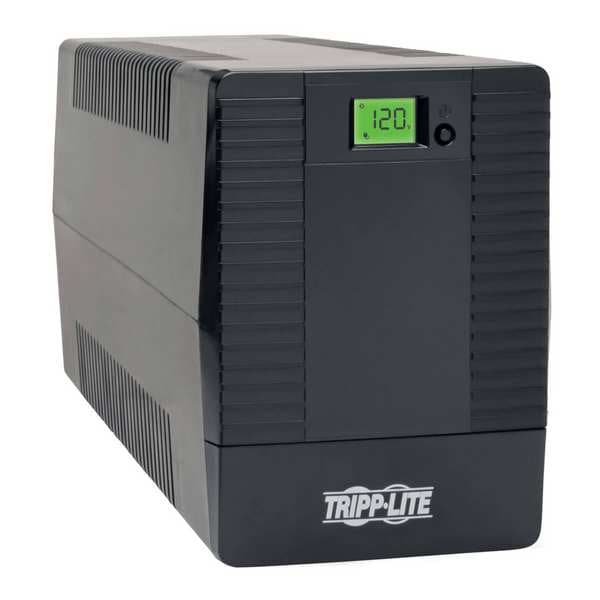

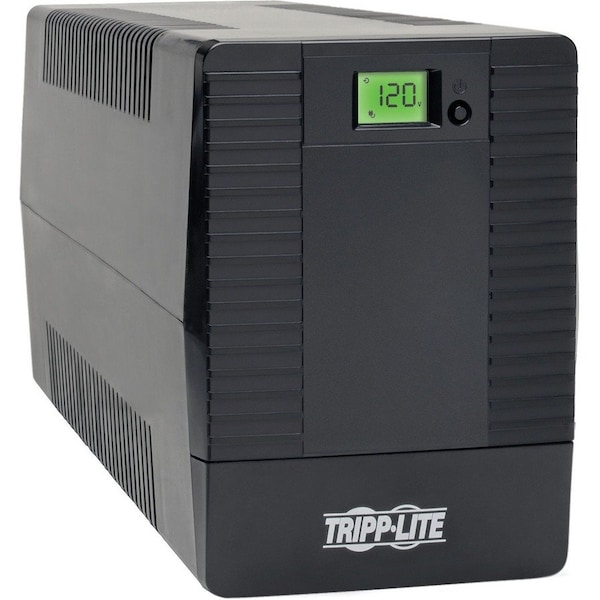

DB9 Cable, SMART1500TSU 1440VA1200W 120V Line-Interactive UPS with 8 Outlets, USB Cables
Nominal Input Voltage(s) Supported
120V AC
Individually Controllable Load Banks
No
Battery Recharge Rate (Included Batteries)
8 hours (10% to 90%)
UPS Certifications
Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Low Voltage Transfer to Battery Power (Setpoint)
89
Relative Humidity
0 to 90%, non-condensing
Input Circuit Breakers
15A
AC Mode Efficiency Rating (100% Load)
>95%
Rated input current (Maximum Load)
12A
UPS AC Suppression Response Time
Instantaneous
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Cable
USB and Serial interface cables included
Output Volt Amp Capacity (VA)
1440
Front Panel LCD Display
Touchscreen LCD reports input voltage, output voltage, load percentage, battery charge percentage and overload status
Battery Replacement Description
Replaceable internal batteries (see manual)
High Availability UPS Features
Battery Independent Restart
DC System Voltage (VDC)
12
Battery Access
Battery access door
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Half Load Runtime (min.)
6 min. (600w)
Communications Interface
DB9 Serial; USB (HID enabled)
High Voltage Transfer to Battery Power (Setpoint)
145
Installation Form Factors Supported with Included Accessories
Tower
UPS Certification Details
UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS A; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
Recommended Electrical Service
15A 120V
EMI / RFI AC Noise Suppression
Yes
Output kVA Capacity (kVA)
1.44
UPS Dataline Suppression
1 line TEL/DSL or Ethernet
Output Voltage Regulation (Line Mode)
120V (+6%/-12%)
Output kW Capacity (kW)
1.2
AC Mode BTU / Hr. (Full Load)
175
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145
Undervoltage Correction
Input voltages between 89 and 108 are boosted by 18%
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Output Watt Capacity (Watts)
1200
Output AC Waveform (Battery Mode)
PWM sine wave
Audible Alarm
UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
Output Voltage Regulation (Battery Mode)
120V (±10%)
Overvoltage Correction
Input voltages between 128 and 149 are reduced by 15%
Storage Temperature Range
+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
Hot-Swap PDU options
PDUB15 (2U / 8 5-15R outlets)
Full Load Runtime (min.)
1.5 min. (1200w)
UPS AC Suppression Joule Rating
316
Primary Form Factor
Desktop
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Audible Noise
Less than 50db (front side, 1m)
Switches
Power off/on switch
Output Capacity (VA)
1440
UPS Applications
Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Operating Elevation (ft.)
Up to 10,000ft
Package Includes
SMART1500TSU 1440VA 1200W 120V Line-Interactive UPS with 8 Outlets;USB cable;DB9 cable;Owner's manual
Product Certifications
RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
Product Compliance
FCC Part 15 Class A (USA)
Output Capacity (Watts)
1200
Receptacle Configuration
5-15R
Surge Suppression Rating
316 J
Operating Temperature - Minimum
32 Degrees F
Transfer Time - Maximum
10 msec
Run Time - Full Load
1.5 min
Battery Chemistry
Valve Regulated Lead Acid
Input Current - Maximum
12 A
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
External Battery Compatible
Not External Battery Pack Compatible
Audible Alarm Conditions
Low Battery, Overload
Number of Outlets - UPS
8
Number of Outlets - Surge Only
8
Power Rating - Real
1.2 kW
Includes Battery
Battery Included
Operating Temperature - Maximum
104 Degrees F
Battery Recharge Time
8 hr
Manufacturer Warranty
2 yr
Data Line Protection
Includes Data Line Surge Protection
Output Ports Included
DB9 Serial, USB
Power Rating - Apparent
1.44 kVA
Transfer Time - Minimum
6 msec
