VA Rating - UPS Systems
1.5 kVA
UPS Type
Line Interactive
Output Voltage
115/120V AC
Backup Time (Half/Full Load)
9.5 min/3 min
Outlet Type
(2) Surge; (6) UPS/Surge
NEMA Plug Configuration
5-15P
Special Features
Hot Swappable Batteries
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
NEMA Receptacle Configuration
(8) 5-15R
Footnotes
USB and TEL/DSL
Includes
Interactive UPS, USB and Telephone Cable
Transfer Time
2 to 4 msec
Fax/Modem Line Protection
Yes
Automatic Volts Regulation
Yes
Standards
CSA, FCC Part 15 Class B, NOM, RoHS, UL1778
Input Connection
NEMA 5-15P Plug
Housing Material
Polycarbonate
Internal UPS Replacement Battery Cartridge
RBC24-SLT
Individually Controllable Load Banks
No
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Relative Humidity
0 to 95%, non-condensing
Battery Access
Battery access door
Rated input current (Maximum Load)
12A
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
Output Volt Amp Capacity (VA)
1500
Primary Form Factor
Tower
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Installation Form Factors Supported with Included Accessories
Tower
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Output Voltage Regulation (Line Mode)
-18%, +8%
DC System Voltage (VDC)
24
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
High Availability UPS Features
Hot swappable batteries
Installation Form Factors Supported with Optional Accessories
Wallmount (UPSWM - tower mounting kit)
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90%
Communications Cable
USB cable included
Undervoltage Correction
Input voltages between 93 and 107 are boosted by 14%
Full Load Runtime (min.)
4 min. (940w)
Output Watt Capacity (Watts)
940
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Recommended Electrical Service
15A 120V
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Communications Interface
USB
Hot-Swap PDU options
PDUB15 (2U / 8 5-15R outlets)
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Output AC Waveform (Battery Mode)
PWM sine wave
Battery Mode BTU / Hr. (Full Load)
480
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Low Voltage Transfer to Battery Power (Setpoint)
75
UPS AC Suppression Response Time
Instantaneous
Output kVA Capacity (kVA)
1.5
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Nominal Input Voltage(s) Supported
120V AC
Output Voltage Regulation (Battery Mode)
+/- 5%
UPS AC Suppression Joule Rating
690
External Battery Pack Compatibility
BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)
356
Severe Undervoltage Correction
Input voltages between 75 and 92 are boosted by 30%
High Voltage Transfer to Battery Power (Setpoint)
147
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Half Load Runtime (min.)
11.4 min. (470w)
Battery Replacement Description
Hot-swappable, user replaceable batteries
Output Capacity Details
940W watts maximum when used with internal batteries or 1 BP24V15RT2U battery pack; Output is reduced to 600W maximum in all other external battery pack configurations
AC Mode Efficiency Rating (100% Load)
0.9
EMI / RFI AC Noise Suppression
Yes
Dataline Protection
RJ-45
Surge Energy Rating
480 J
Maximum Operating Temperature
122°F (50°C)
Typical Battery Recharge Time
4 Hour
Load Capacity
1500 VA/940 W
Additional Information

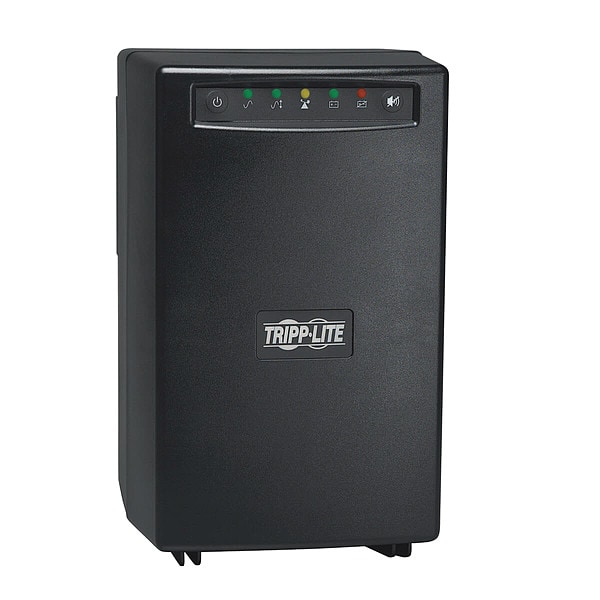

OMNIVS1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support, Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss, Regulates brownouts as low as 75 and overvoltages to 147V back to usable 120V nominal levels without using battery power, 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets, USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure, PowerAlert software available via free download from www.tripplite.com, Dataline surge suppression protects standard dialup/DSL or ethernet line connection, Audible alarm and 4 front panel LEDs offer complete UPS and line power status information, 1500VA power handling ability supports a variety of sensitive electronic equipment, 5 minutes full load runtime (1500VA), 14 minutes half load runtime (750VA), Runtime is further expandable with the addition of BP24V14 external battery pack, Supports hot swappable battery replacement via built-in access panel, $200,000 connected equipment insurance (USA & Canada Only), 2 year warranty
Package Contents
OMNIVS1500XL Line Interactive UPS, USB and telephone cable, User manual with warranty information
Status Indicators
4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
Product Compliance
FCC Part 15 Class B (USA)
UPS Applications
Home/Office Desktop; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Output Capacity (Watts)
940
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Output Capacity (VA)
1500
Package Includes
OMNIVS1500XL Line Interactive UPS;USB and telephone cable;Owner's manual with warranty information
Battery Chemistry
Valve Regulated Lead Acid
Output Ports Included
USB
Battery Recharge Time
4.5 hr
Power Rating - Apparent
1.5 kVA
Transfer Time - Maximum
4 msec
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Audible Alarm Conditions
Low Battery
Manufacturer Warranty
3 yr Limited
Operating Temperature - Minimum
32 Degrees F
External Battery Compatible
External Battery Pack Compatible
Power Rating - Real
940 W
Includes Battery
Battery Included
Number of Outlets - UPS
6
Transfer Time - Minimum
2 msec
Run Time - Full Load
4 min
Receptacle Configuration
5-15R
Operating Temperature - Maximum
104 Degrees F
Replacement Battery Part Number
RBC24-SLT
Input Current - Maximum
12 A
Visible Indicator Light Conditions
Battery Low, Overload, Power Status, Replace Battery, Voltage Regulation
Number of Outlets - Surge Only
2
Data Line Protection
Includes Data Line Surge Protection
