Shop EATON

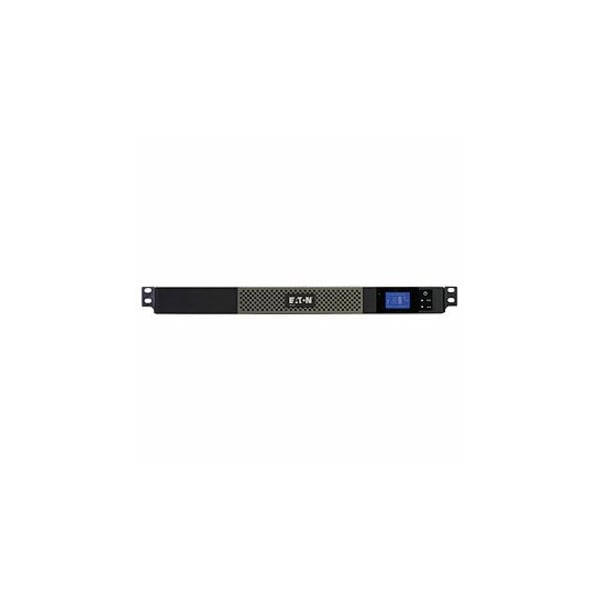

UPS System, 850VA, Line Interactive, Out: 230V AC In: 230V AC

  • Mfr # 5P850GR

  • Zoro # G0482917

product price:
$
1,040.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
850VA
Mounting
Rack
Wattage
600 W
Input Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5P850GR
Zoro #
G0482917
UPC #
743172043078
Country of Origin
Unknown

Dimensions

Width
20 in
Product Length/Depth
20 in
Product Height
1.7 in
Rack size
1U

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
850VA
Mounting
Rack
Wattage
600 W
Input Voltage
230V AC
Output Voltage
230V AC
Backup Time (Half/Full Load)
12 min/4 min
Number of Outlets
4
Standards
UL 497A
Housing Color
Black, Silver
Battery Type
Sealed Lead Acid (SLA)
NEMA Receptacle Configuration
(4) C13
Altitude
Up to 10,000 ft (3000m) without de-rating
Output Frequency
50/60 Hz
Communication
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Nominal Frequency
50-60 Hz
Noise level
<45 dB at 1 meter
Extended Battery Capability
None; See Eaton 5PX UPS for extended runtimes options
Battery replacement
User replaceable
Input Power Factor
1
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Software Compatibility
Eaton Intelligent Power Manager (included)
Relative Humidity
0-90% non-condensing
Input connection
C14
Expansion Slots
One slot; Gigabit Network Card (Network-M2) is optional
BTU Rating
Online: 82, Battery 389
Input voltage range
160-294 V (adjustable to 150 V-294 V)
Output Voltage Range
184-256 Vac
Input Frequency Range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Temperature range
0° to 35°C (32° to 95°F)
Compliances
CE Marked
Form factor
Rack

Description

Eaton 5P 850VA 600W 230V Line-Interactive UPS, C14 Input, 4 C13 Outlets, True Sine Wave, Cybersecure Network Card Option, 1U - 1U Rack-mountable - 4 Minute Stand-by - 220 V AC Input - 240 V AC Output - 4 x IEC 60320 C13
