UPS Type
Line Interactive
Input Voltage
100/110/120V AC
Output Voltage
100/110/120V AC
Backup Time (Half/Full Load)
20 min/8 min
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Special Features
Cold Start Operation Supported, Hot Swappable Batteries
NEMA Plug Configuration
5-15P
VA Rating - UPS Systems
1.5 kVA
NEMA Receptacle Configuration
(8) 5-15R
Ports
RS232, TEL/DSL, USB
Transfer Time
4 to 6 msec
Standards
CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
Automatic Volts Regulation
Yes
Includes

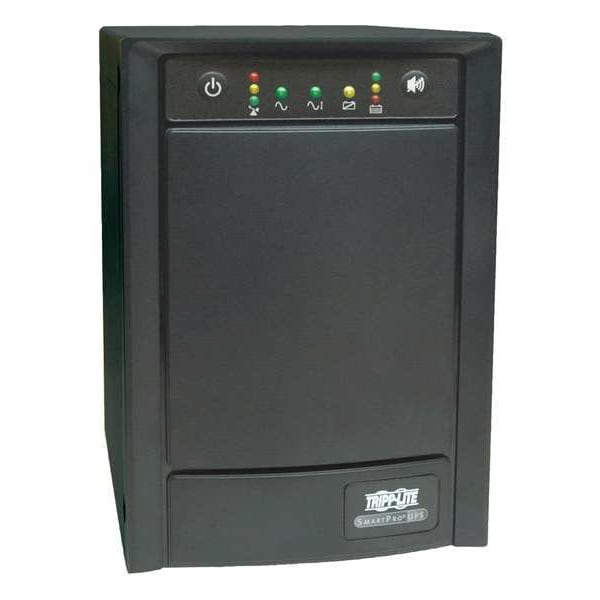

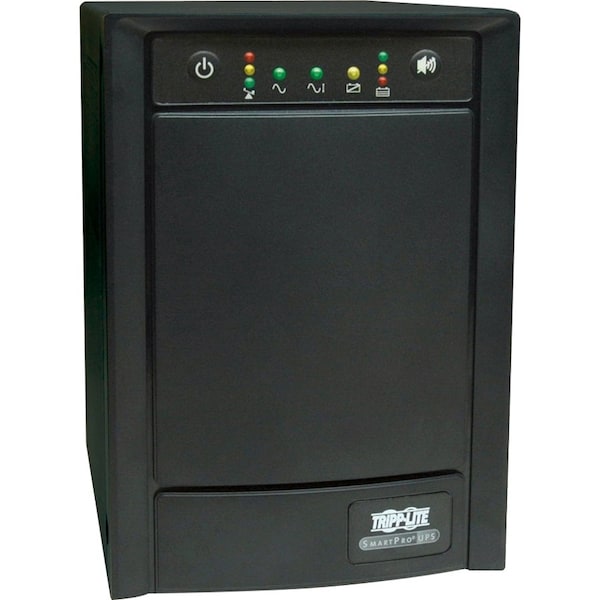

DB9 Cable, SMART1500SLT SmartPro120V 1.5kVA 900W Line-Interactive Sine Wave UPS, USB Cables
Fax/Modem Line Protection
Yes
Battery Type
Sealed Lead Acid (SLA)
Capacity - Batteries
1500 VA/900 W
Input Connection
NEMA 5-15P Plug
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Battery Mode BTU / Hr. (Full Load)
500
DC System Voltage (VDC)
36
Audible Alarm
Audible alarm indicates power failure and overload conditions
Output Voltage Regulation (Line Mode)
-13%, + 15%
AC Mode Efficiency Rating (100% Load)
0.95
Recommended Electrical Service
15A 120V
Output AC Waveform (Battery Mode)
Pure Sine wave
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Battery Recharge Rate (Included Batteries)
Less than 8 hours from 10% to 90% (typical, full load discharge)
EMI / RFI AC Noise Suppression
Yes
Internal UPS Replacement Battery Cartridge
RBC36-SLT
Communications Interface
USB; DB9 Serial; Slot for SNMP/Web interface
Low Voltage Transfer to Battery Power (Setpoint)
95V (120V), 87V (110V), 83V (100V)
Overvoltage Correction
Voltage reduction of 12% applies when input is 127 to 145 (120v), 116 to 133 (110v), 111 to 121 (100v)
Network Management Cards
SNMPWEBCARD ; WEBCARDLX ; RELAYIOCARD
Frequency Compatibility Details
Automatic frequency selection
Nominal Input Voltage(s) Supported
100V AC; 110V AC; 120V AC
AC Mode BTU / Hr. (Full Load)
148
Output Watt Capacity (Watts)
900
Audible Noise
Audible Noise < 50 dBA at Front Side 1 Meter
Nominal Output Voltage(s) Supported
100V; 110V; 120V
Primary Form Factor
Tower
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
UPS AC Suppression Response Time
Instantaneous
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection
Individually Controllable Load Banks
No
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Communications Cable
USB and DB9 cabling included
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Undervoltage Correction
Voltage boost of 14% applies when input is 95 to 108 (120v), 87 to 99 (110v), 83 to 90 (100v)
High Voltage Transfer to Battery Power (Setpoint)
145V (120V), 133V (110V), 121V (100V)
Output Volt Amp Capacity (VA)
1500
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch
UPS AC Suppression Joule Rating
690
Output kVA Capacity (kVA)
1.5
Battery Access
Battery access door
Site Wiring Fault Indication
Rear panel site wiring fault LED
Full Load Runtime (min.)
8 min. (900w)
Output Voltage Regulation (Battery Mode)
+/- 5%
Relative Humidity
0 to 95%, non-condensing
Rated input current (Maximum Load)
10.1A (100V), 9.3A (110V), 8.6A (120V)
High Availability UPS Features
Hot swappable batteries
Half Load Runtime (min.)
20 min. (450w)
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 95 to 145 (120v), 87 to 133 (110v), 83 to 121 (100v)
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
LED Indicators
Status LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for load and battery charge level
Battery Replacement Description
Hot-swappable, user replaceable batteries
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Package Contents
SmartPro 1500SLT UPS, SMART 1500SLT UPS System, PowerAlert Software CD-Rom, USB and serial cabling, User manual with warranty information
Load Capacity
1500 VA/900 W
Battery Chemistry
Valve Regulated Lead Acid
Typical Battery Recharge Time
4 Hour
Total Number of Expansion Slots
1
Alarm
On Battery, Overload
Status Indicators
Includes 14 front panel LEDs to indicate line / battery power status, over / under voltage correction, battery charge level (4 LEDs), load percentage (4 LEDs), overload and replace battery. 1 rear panel site wiring fault indicator.
Network Management
SNMP Manageable
Package Includes
SMART1500SLT SmartPro 120V 1.5kVA 900W Line-Interactive Sine Wave UPS;USB cable;DB9 cable;Owner's manual
Installation Form Factors Supported with Included Accessories
Tower
Operating Elevation (ft.)
6561 ft. (2000 m) above sea level
UPS Applications
Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Output Capacity Details
7.5A @ 120V (default), 8.2A @ 110V, 9A @ 100V. 125% @ 10 minutes 110% +/- 10% @ 5 seconds
Output Capacity (VA)
1500
Input Circuit Breakers
15A
Product Compliance
FCC Part 15 Class A (USA)
Output Capacity (Watts)
900
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Total Harmonic Distortion
0.03
Output Ports Included
DB9 Serial, SNMP, USB
External Battery Compatible
Not External Battery Pack Compatible
Receptacle Configuration
5-15R
Surge Suppression Rating
690 J
Audible Alarm Conditions
Overload
Data Line Protection
Includes Data Line Surge Protection
Transfer Time - Maximum
6 msec
Input Current - Maximum
8.6 A
Operating Temperature - Minimum
32 Degrees F
Run Time - Full Load
8 min
Power Rating - Apparent
1.5 kVA
Battery Recharge Time
6 hr
Includes Battery
Battery Included
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Number of Outlets - Surge Only
8
Number of Outlets - UPS
8
Transfer Time - Minimum
4 msec
Manufacturer Warranty
2 yr
Operating Temperature - Maximum
104 Degrees F
Power Rating - Real
900 W
