- Item

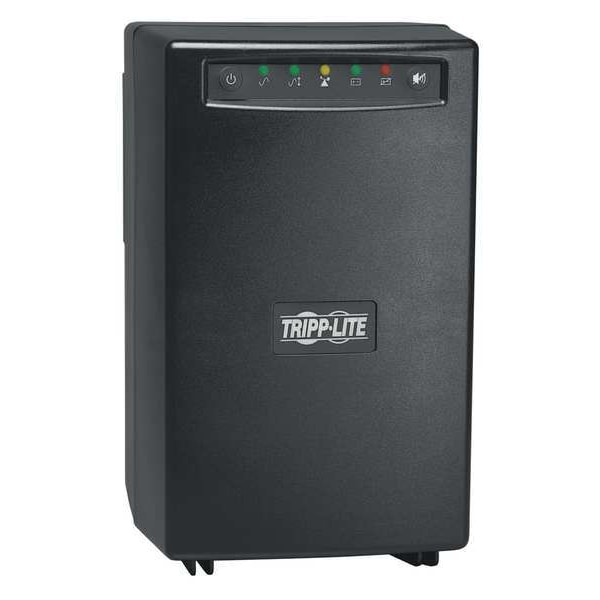

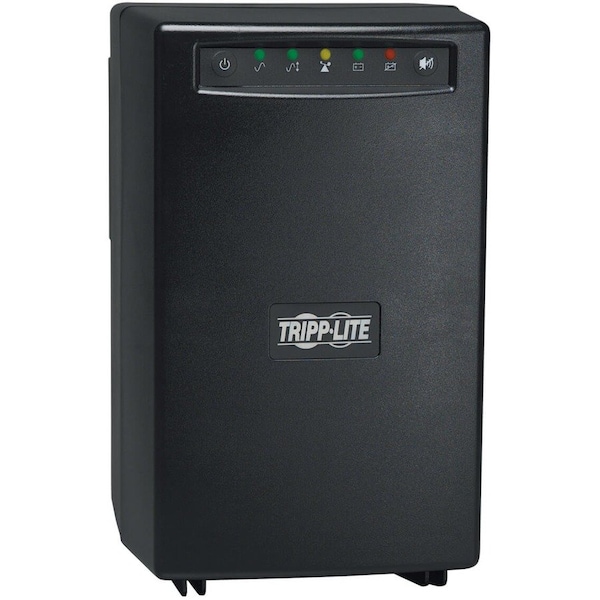

- UPS System
- VA Rating - UPS Systems
- 1.5 kVA
- UPS Type
- Line Interactive
- Power Rating
- 1.5kVA
- Mounting
- Tower/Wall
- Wattage
- 980 W
- Input Voltage
- 120V AC
- Output Voltage
- 110/115/120V
- Backup Time (Half/Full Load)
- 20 min/7 min
- Outlet Type
- UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 6
- Display Type
- LED
- Footnotes
- USB and RS232
- Hz
- 60 Hz
- NEMA Receptacle Configuration
- (6) 5-15R
- Green Environmental Attribute
- Product Contributes To Reducing Energy Consumption
- Automatic Volts Regulation
- Yes
- NEMA Plug Configuration
- 5-15P
- Transfer Time
- 2 to 4 msec
- Input Current
- 12 A
- Standards
- CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
- Special Features
- Hot Swappable Batteries
- Fax/Modem Line Protection
- No
- Includes
- DB9 Cable, SMART1500 SmartPro 120V1.5kVA 980W Line-InteractiveUPS, USB Cables
- Ports
- RS232, USB
- Phase
- Single
- Capacity - Batteries
- 1500 VA/980 W
- Operating Temp. Range
- 122°F (50°C)
- Housing Color
- Black
- Battery Type
- Sealed Lead Acid (SLA)
- Input Connection
- NEMA 5-15P Plug
- Housing Material
- PVC
- Load Management Receptacles
- One switchable single-outlet 5-15R load bank
- EMI / RFI AC Noise Suppression
- Yes
- AC Mode Efficiency Rating (100% Load)
- 0.96
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Undervoltage Correction
- Input voltages between 93 and 107 are boosted by 14%
- Individually Controllable Load Banks
- Yes
- Communications Interface
- USB; DB9 Serial
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Output Watt Capacity (Watts)
- 980
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Installation Form Factors Supported with Included Accessories
- Tower
- Relative Humidity
- 0 to 95%, non-condensing
- Primary Form Factor
- Tower
- Nominal Input Voltage(s) Supported
- 120V AC
- Output Volt Amp Capacity (VA)
- 1500
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Battery Access
- Battery access door
- Audible Alarm
- Audible alarm indicates power-failure, overload and low-battery conditions
- Full Load Runtime (min.)
- 7 min. (980w)
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Communications Cable
- USB and DB9 cabling included
- Battery Mode BTU / Hr. (Full Load)
- 456
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- UPS AC Suppression Joule Rating
- 510
- Rated input current (Maximum Load)
- 12A
- AC Mode BTU / Hr. (Full Load)
- 139
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- Low Voltage Transfer to Battery Power (Setpoint)
- 75
- Output kVA Capacity (kVA)
- 1.5
- UPS AC Suppression Response Time
- Instantaneous
- Battery Recharge Rate (Included Batteries)
- Less than 4 hours from 10% to 90% (typical, full load discharge)
- High Availability UPS Features
- Hot swappable batteries
- Half Load Runtime (min.)
- 20 min. (490w)
- Overvoltage Correction
- Input voltages between 128 and 147 are reduced by 12%
- Output Voltage Regulation (Line Mode)
- -18%, +8%
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Internal UPS Replacement Battery Cartridge
- RBC36-SLT
- Recommended Electrical Service
- 15A 120V
- UPS Certification Details
- UL1778 2ND Edition; CAN/CSA No.0-M1982, 0.4-M1982, 107.1-M91 and 601.1
- Cooling Method
- Fan
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Input Phase
- Single-Phase
- Severe Undervoltage Correction
- Input voltages between 75 and 92 are boosted by 30%
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
- Input Circuit Breakers
- 15A
- DC System Voltage (VDC)
- 36
- Installation Form Factors Supported with Optional Accessories
- Wallmount (UPSWM - tower mounting kit)
- High Voltage Transfer to Battery Power (Setpoint)
- 147
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- LED Indicators
- 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
- Expandable Runtime
- No
- Hot Swappable
- Yes
- Battery Chemistry
- Valve Regulated Lead Acid
- Surge Energy Rating
- 480 J
- Protection Type
- Black Out, Brownout, Over Voltage, Surge
- Total Number of Expansion Slots
- 3
- Network Management
- SNMP Manageable
- Package Contents
- UPS System, USB and DB9 monitoring cables, PowerAlert unattended shutdown and UPS/Power monitoring software CD, Instruction manual with warranty information
- Maximum Operating Temperature
- 122°F (50°C)
- Status Indicators
- Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
- Typical Battery Recharge Time
- 4 Hour
- USB
- Yes
- Software Included
- PowerAlert Software
- Alarm
- Low Battery, On Battery, Overload
- Battery Life
- 6 Year
- Form Factor
- Tower
- Load Capacity
- 1500 VA/980 W
- Output Capacity (VA)
- 1500
- Product Compliance
- FCC Part 15 Class A (USA)
- Package Includes
- SMART1500 SmartPro 120V 1.5kVA 980W Line-Interactive UPS;USB cable;DB9 cable;Owner's manual
- Output Capacity (Watts)
- 980
- Product Certifications
- CSA (Canada); NOM (Mexico); UL 1778
- UPS Applications
- Large Network; High-End Desktop/Small Network
- Plug Configuration
- 5-15P
- Power Rating - Real
- 980 W
- Data Line Protection
- Includes Data Line Surge Protection
- Power Rating - Apparent
- 1.5 kVA
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Includes Battery
- Battery Included
- Transfer Time - Maximum
- 4 msec
- Surge Suppression Rating
- 480 J
- External Battery Compatible
- Not External Battery Pack Compatible
- Transfer Time - Minimum
- 2 msec
- Number of Outlets - UPS
- 6
- Input Current - Maximum
- 12 A
- Manufacturer Warranty
- 2 yr
- Battery Recharge Time
- 4 hr
- Run Time - Full Load
- 7 min
- Frequency
- 60 Hz
- Operating Temperature - Minimum
- 32 Degrees F
- Operating Temperature - Maximum
- 104 Degrees F
- Output Ports Included
- DB9 Serial, USB
- Audible Alarm Conditions
- Low Battery, Overload, Power Outage
- Number of Outlets - Surge Only
- 6
- Receptacle Configuration
- 5-15R
