VA Rating - UPS Systems
1.5 kVA
UPS Type
Line Interactive
Watts - UPS Systems
940.0 W
Input Voltage - UPS Systems
230V AC
Output Voltage - UPS Systems
220V AC, 230V AC, 240V AC
Outlet Type - UPS Systems
UPS/Surge
Output Voltage
220/230/240V AC
Backup Time (Half/Full Load)
20 min/7 min
Special Features
Hot Swappable Batteries
NEMA Plug Configuration
C14
Fax/Modem Line Protection
No
Mounting - UPS Systems
Tower
Includes
(2) DB9 Monitoring Cables, (2) IEC-320 C13 to C14 Power Cables, PowerAlert Unattended Shutdown and UPS/Power Monitoring Software
NEMA Receptacle Configuration
C13
Transfer Time
2 to 4 msec
Automatic Volts Regulation
Yes
Standards
CE (Europe), CSA (Canada), GOST (Russia), IEC/EN 62040, IRAM (Argentina), RoHS, SASO (Saudi Arabia), UL1778
Green Certification or Other Recognition
CE EN62040 listed, UL, cUL, GOST, IRAM, SASO
Capacity - Batteries
1500 VA/940 W
Backup/Run Time (Full Load)
7 Minute/20 Minute
Housing Material
Polycarbonate
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in DB9 port, download PowerAlert Local software at http://www.tripplite.com/poweralert
Primary Form Factor
Tower
Input Circuit Breakers
10A
Output Watt Capacity (Watts)
940
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Tested to IRAM (Argentina)
Half Load Runtime (min.)
20 min. (470w)
Undervoltage Correction
Input voltages between 191 and 215 are boosted by 10%
Relative Humidity
0 to 95%, non-condensing
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Battery Access
Battery access door
Nominal Input Voltage(s) Supported
230V AC
Individually Controllable Load Banks
No
Installation Form Factors Supported with Included Accessories
Tower
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Output Voltage Regulation (Line Mode)
-15%, +8%
UPS AC Suppression Response Time
Instantaneous
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
UPS Housing Material
Polycarbonate
Output Receptacles
(6) C13
Output Volt Amp Capacity (VA)
1500
Output AC Waveform (AC Mode)
Sine wave
Communications Cable
2 DB9 cables included
Nominal Voltage Details
230V nominal output in battery mode
Overvoltage Correction
Input voltages between 243 and 277 are reduced by 12%
Communications Interface
DB9 Serial; Contact closure
Severe Undervoltage Correction
Input voltages between 165 and 190 are boosted by 22%
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Frequency Compatibility
50 / 60 Hz
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; contact closure communications via 2nd DB9 port (2 total)
Output kVA Capacity (kVA)
1.5
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 166 to 277
Low Voltage Transfer to Battery Power (Setpoint)
165
AC Mode Efficiency Rating (100% Load)
0.94
Included Output Power Cables
Includes 2 C13 to C14 output power cables
Installation Form Factors Supported with Optional Accessories
Wallmount (UPSWM - tower mounting kit)
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
EMI / RFI AC Noise Suppression
Yes
Output AC Waveform (Battery Mode)
PWM sine wave
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Full Load Runtime (min.)
7 min. (940w)
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Nominal Output Voltage(s) Supported
220V; 230V; 240V
Battery Replacement Description
Hot-swappable, user replaceable batteries
UPS Input Connection Type
C14 inlet
Rated input current (Maximum Load)
6.5A
UPS Certification Details
EMI approvals 62040
Frequency Compatibility Details
Automatic frequency selection
UPS AC Suppression Joule Rating
480
DC System Voltage (VDC)
36
Output Voltage Regulation (Battery Mode)
+/- 5%
High Availability UPS Features
Hot swappable batteries
Internal UPS Replacement Battery Cartridge
RBC53
Battery Recharge Rate (Included Batteries)
Less than 4 hours from 10% to 90% (typical, full load discharge)
Product Type
Line-interactive UPS
Plug/Connector Type
IEC 320-C14
Additional Information
Ideal for the protection of fileservers, network accessories and telecommunications equipment. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems. Ideal for sensitive electronic applications in areas where brownouts and overvoltages are common, Switches: Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions, Form factors supported: Tower, wall mountable with optional UPSWM accessory, Low voltage transfer to battery power: 165V (resets to line power as line voltage increases to 168V or higher), High voltage transfer to battery power: 277V (resets to line power as line voltage decreases to 271 or lower)
Load Capacity
1500 VA/940 W
Typical Battery Recharge Time
4 Hour
Package Contents
SmartPro 1500VA Tower UPS, SMARTINT1500 UPS System, 2 IEC-320 C13 to C14 power cables, 2 DB9 monitoring cables, PowerAlert unattended shutdown and UPS/Power monitoring software, Instruction manual with warranty information
Receptacle Detail
6 x IEC 60320 C13
Certifications & Standards
CE EN62040 listed, UL, cUL, GOST, IRAM, SASO
Backup/Run Time (Half Load)
20 Minute
Product Name

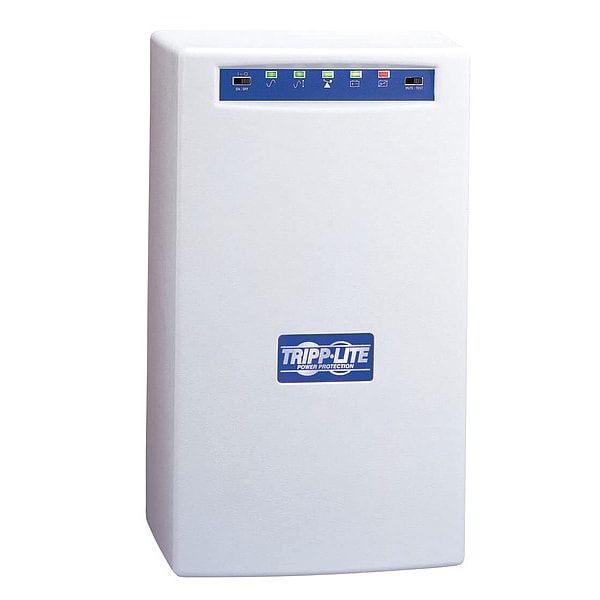

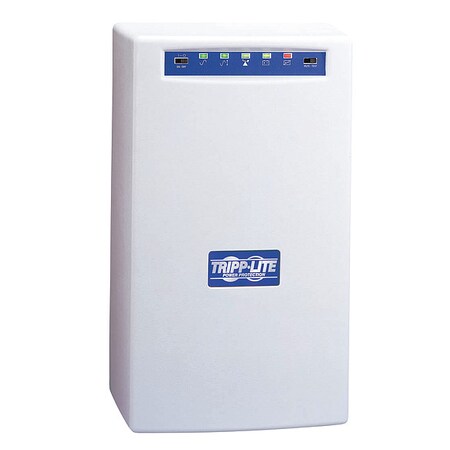

SmartPro 1500VA Tower UPS
Software Included
PowerAlert unattended shutdown and UPS/Power monitoring software
Manufacturer Warranty
2 yr, 3 yr Registration
Number of Outlets - UPS
6
Run Time - Full Load
7 min
Battery Chemistry
Valve Regulated Lead Acid
Includes Battery
Battery Included
Run Time - Half Load
20 min
Data Line Protection
Includes Data Line Surge Protection
Transfer Time - Minimum
2 msec
Battery Recharge Time
4 hr
Power Rating - Apparent
1.5 kVA
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Transfer Time - Maximum
4 msec
Input Current - Maximum
6.5 A
Audible Alarm Conditions
Low Battery, Power Outage
Power Rating - Real
940 W
Surge Suppression Rating
480 J
Number of Outlets - Surge Only
6
Receptacle Configuration
C13
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
104 Degrees F
Output Ports Included
DB9 Serial
External Battery Compatible
Not External Battery Pack Compatible
