- Item

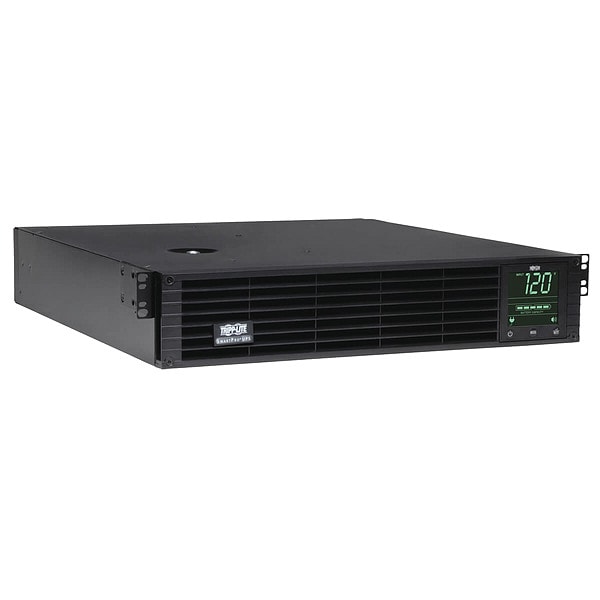

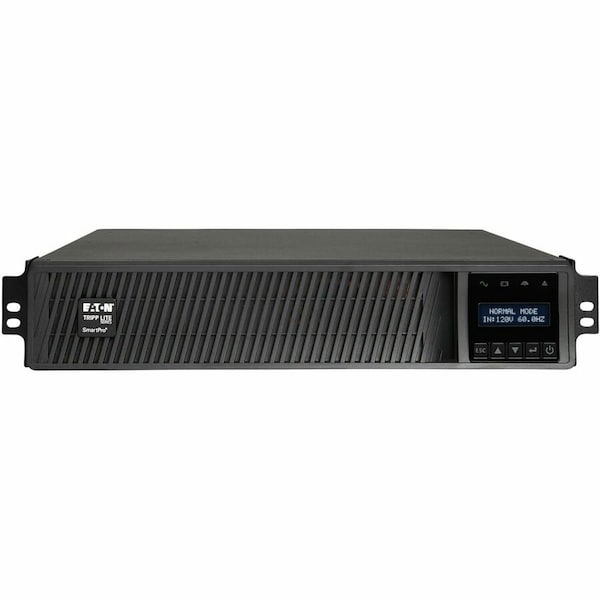

- UPS System
- UPS Type
- Line Interactive
- Power Rating
- 1950VA
- Mounting
- Rack
- Wattage
- 1950 W
- Input Voltage
- 120V AC
- Output Voltage
- 100/110/120/125V
- Backup Time (Half/Full Load)
- 12 min/4 min
- Outlet Type
- UPS/Surge
- Medical Grade
- No
- Number of Outlets
- 7
- Ports
- DB9 Serial, EPO, USB
- Display Type
- LCD
- VA Rating - UPS Systems
- 2.2 kVA
- Phase
- Single
- Includes
- (4) Post Rack Mount Installation Kits, PowerAlert Software with USB, Serial and EPO Cables
- Automatic Volts Regulation
- Yes
- Transfer Time
- 1 to 5 msec
- NEMA Receptacle Configuration
- (4) 5-15R; (4) 5-15/20R
- Standards
- CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
- Special Features
- Hot Swappable Batteries
- Fax/Modem Line Protection
- No
- Hz
- 60 Hz
- NEMA Plug Configuration
- 5-20P
- Input Current
- 16 A
- Capacity - Batteries
- 2200 VA/1920 W
- Input Connection
- NEMA 5-20P Plug
- Housing Material
- Polycarbonate
- Battery Type
- VRLA
- Relative Humidity
- 0 to 95%, non-condensing
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
- Communications Interface
- DB9 Serial; EPO (emergency power off); Micro-USB; Pre-installed network card; RJ45 Network; Slot for SNMP/Web interface; USB (HID enabled); USB-A; USB-B
- Undervoltage Correction
- Input voltages between 108 and 96 are boosted by 12%
- Network Monitoring Port Description
- Pre-installed WEBCARDLX Network Management Card interface
- Severe Undervoltage Correction
- Input voltages between 83 and 95 are boosted by 24%
- UPS AC Suppression Joule Rating
- 570
- High Availability UPS Features
- Hot swappable batteries
- Output Volt Amp Capacity (VA)
- 2200
- Full Load Runtime (min.)
- 4.5 min. (1920w)
- Storage Temperature Range
- +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Switches
- 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset
- Audible Alarm
- Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
- Audible Noise
- 45 dBA maximum, front side 1m
- AC Mode Efficiency Rating (100% Load)
- 0.96
- Output Watt Capacity (Watts)
- 1920
- Battery Access
- Front panel battery access door
- Internal UPS Replacement Battery Cartridge
- RBC94-2U
- Nominal Input Voltage(s) Supported
- 120V AC
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Rated input current (Maximum Load)
- 16A (120V)
- Expandable Runtime
- No
- Half Load Runtime (min.)
- 12 min. (960w)
- Communications Cable
- Micro-USB, USB and DB9 cabling included
- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- EPO Port
- RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems
- Recommended Electrical Service
- 20A 120V
- LED Indicators
- Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).
- Power Factor
- 0.87
- Cooling Method
- Fan
- Output Voltage Regulation (Line Mode)
- -14%, +6%
- Grounding Lug
- Back panel grounding lug
- Included Mounting Accessory Description
- Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
- Input Circuit Breakers
- 20A
- UPS Certification Details
- SAFETY STANDARD (U.S.) - UL1778:2014 (5th Ed) R10.17; SAFETY STANDARD (CANADA) - CAN/CSA-C22.2 No. 107.3-14 (3rd Ed) + GI1 / FCC/ICES COMPLIANT - CLASS A
- SNMP Compatibility
- SNMP V1, V2c, V3
- DC System Voltage (VDC)
- 48
- Load Management Receptacles
- Two switchable single-outlet load banks
- PowerAlert Software
- For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
- Overvoltage Correction
- Input voltages between 127 and 145 are reduced by 12%
- Individually Controllable Load Banks
- Yes
- Network UPS Tools Compatibility
- NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
- Input Phase
- Single-Phase
- EMI / RFI AC Noise Suppression
- Yes
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
- Low Voltage Transfer to Battery Power (Setpoint)
- 83
- UPS AC Suppression Response Time
- Instantaneous
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Primary Form Factor
- Rackmount
- Battery Mode BTU / Hr. (Full Load)
- 1157
- AC Mode BTU / Hr. (Full Load)
- 306
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Battery Recharge Rate (Included Batteries)
- Less than 4.5 hours from 10% to 90% (typical, full load discharge)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
- Output kW Capacity (kW)
- 1.92
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Output kVA Capacity (kVA)
- 2.2
- Serial Port
- Yes
- Emergency Power OFF
- Yes
- Software Included
- PowerAlert Software
- Form Factor
- Rack-mountable
- Hot Swappable
- Yes
- Typical Battery Recharge Time
- 4.50 Hour
- Load Capacity
- 2200 VA/1920 W
- USB
- Yes
- Network Management
- SNMP Manageable
- Package Contents
- SmartPro SMART2200RM2UN 2.2kVA Rack-mountable UPS, PowerAlert Software CD, USB Cable, Serial Cable, EPO Cable, 4 Post Rackmount Installation kit, Instruction Manual, Network Interface Card
- Surge Suppression Rating
- 380 J
- Includes Battery
- Battery Included
- Automatic Voltage Regulation
- Includes Automatic Voltage Regulation
- Output Ports Included
- DB9 Serial, EPO, USB
- Power Rating - Real
- 1.92 kW
- Run Time - Full Load
- 4 min
- Operating Temperature - Minimum
- 32 Degrees F
- Power Rating - Apparent
- 2.2 kVA
- Battery Chemistry
- Valve Regulated Lead Acid
- Audible Alarm Conditions
- Low Battery, Overload, Power Outage
- Receptacle Configuration
- 5-20R, 5-15R
- Transfer Time - Maximum
- 4 msec
- Battery Recharge Time
- 4.5 hr
- External Battery Compatible
- Not External Battery Pack Compatible
- Plug Configuration
- 5-20P
- Operating Temperature - Maximum
- 104 Degrees F
- Manufacturer Warranty
- 2 yr, 3 yr Registration
- Number of Outlets - Surge Only
- 4
- Input Current - Maximum
- 16 A
- Data Line Protection
- Includes Data Line Surge Protection
- Frequency
- 60 Hz
- Number of Outlets - UPS
- 4
- Transfer Time - Minimum
- 1 msec
