UPS Type
Line Interactive
Output Voltage
110/115/120V
Backup Time (Half/Full Load)
15 min/5.3 min
Automatic Volts Regulation
Yes
Ports
EPO, RS232, Slot for SNMPWEBCARD, USB
NEMA Plug Configuration
5-15P
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
Slot for SNMPWEBCARD
Includes

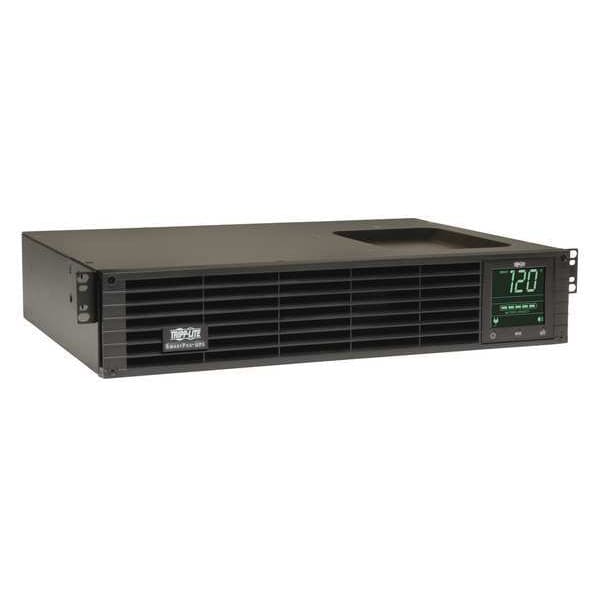

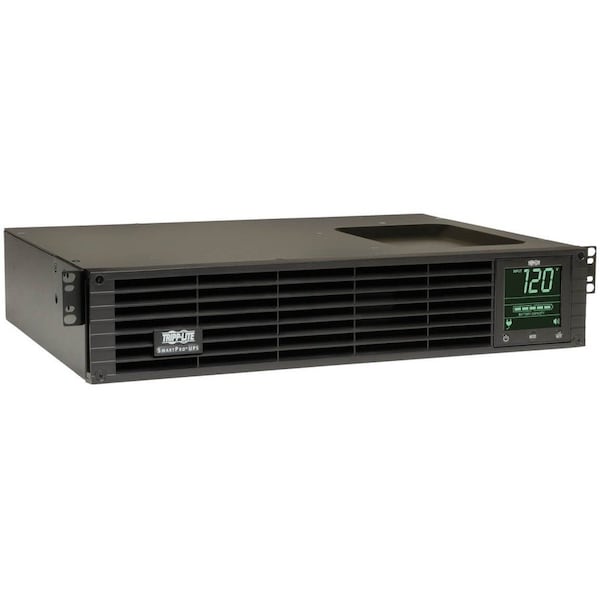

DB9 Cable, EPO Cables, Mounting Hardware, SMART1000RM2U SmartPro120V 1kVA 800W Line-Interactive Sine Wave UPS, USB Cables
NEMA Receptacle Configuration
(6) 5-15R
Transfer Time
2 to 4 msec
Special Features
Hot Swappable Batteries
VA Rating - UPS Systems
1.0 kVA
Standards
CSA (Canada), FCC Part 15 Class B (USA), NOM (Mexico), RoHS, UL1778
Fax/Modem Line Protection
No
Input Connection
NEMA 5-15P Plug
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Audible Noise
45 dBA maximum, front side 1m
Output AC Waveform (Battery Mode)
Pure Sine wave
Grounding Lug
Back panel grounding lug
Rated input current (Maximum Load)
9.2A
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
AC Mode BTU / Hr. (Full Load)
134
Load Management Receptacles
Two switchable two-outlet 5-15R load banks
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
Battery Recharge Rate (Included Batteries)
Less than 4 hours from 10% to 90% (typical, full load discharge)
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Output Watt Capacity (Watts)
800
Low Voltage Transfer to Battery Power (Setpoint)
83
Output Voltage Regulation (Line Mode)
-21%, +8%
Individually Controllable Load Banks
Yes
High Voltage Transfer to Battery Power (Setpoint)
147
Output Voltage Regulation (Battery Mode)
+/- 5%
Included Mounting Accessory Description
Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Alarm Cancel Operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Battery Mode BTU / Hr. (Full Load)
600
Switches
3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Half Load Runtime (min.)
15 min. (400w)
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Output kVA Capacity (kVA)
1
Relative Humidity
0 to 95%, non-condensing
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications Interface
USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Internal UPS Replacement Battery Cartridge
Current version uses RBC24V-LCD ; Prior versions used RBC92-2U ; Check the label inside the battery door to verify the appropriate replacement battery part number
Output Volt Amp Capacity (VA)
1000
Recommended Electrical Service
15A 120V
UPS AC Suppression Joule Rating
570
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
EMI / RFI AC Noise Suppression
Yes
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
High Availability UPS Features
Hot swappable batteries
Full Load Runtime (min.)
5.3 min. (800w)
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
Input Circuit Breakers
15A
Primary Form Factor
Rackmount
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Front Panel LCD Display
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
Undervoltage Correction
Input voltages between 83 and 107 are boosted by 14%
Battery Access
Front panel battery access door
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Battery Replacement Description
Hot-swappable, user replaceable batteries
AC Mode Efficiency Rating (100% Load)
0.95
Communications Cable
USB and DB9 cabling included
Nominal Input Voltage(s) Supported
120V AC
DC System Voltage (VDC)
24
UPS AC Suppression Response Time
Instantaneous
Network Management
SNMP Manageable
Typical Battery Recharge Time
4 Hour
Total Number of Expansion Slots
1
Load Capacity
1000 VA/800 W
Battery Chemistry
Valve Regulated Lead Acid
Software Included
PowerAlert Software
Alarm
Low Battery, Overload, On Battery
Maximum Operating Temperature
104°F (40°C)
Package Contents
SMART1000RM2U UPS System, PowerAlert Software CD, Serial & EPO Cabling, 4 x Post Rackmount Installation Kit, Instruction Manual
UPS Applications
Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Output Capacity (Watts)
800
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Package Includes
SMART1000RM2U SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS;USB cable;DB9 cable;EPO cable;Mounting hardware;Owner's manual
Grounding Details
Back panel grounding lug
Output Capacity (VA)
1000
Product Compliance
FCC Part 15 Class B (USA)
Includes Battery
Battery Included
Power Rating - Real
800 W
Run Time - Full Load
5.3 min
Receptacle Configuration
5-15R
Manufacturer Warranty
2 yr
Data Line Protection
Includes Data Line Surge Protection
Operating Temperature - Maximum
104 Degrees F
Operating Temperature - Minimum
32 Degrees F
Surge Suppression Rating
570 J
Output Ports Included
DB9 Serial, EPO, SNMP, USB
Number of Outlets - Surge Only
6
Battery Recharge Time
4 hr
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Audible Alarm Conditions
Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup
Power Rating - Apparent
1 kVA
Transfer Time - Maximum
4 msec
External Battery Compatible
Not External Battery Pack Compatible
Transfer Time - Minimum
2 msec
Input Current - Maximum
9.2 A
Number of Outlets - UPS
6
