UPS Type
Line Interactive
Output Voltage
110/115/120V
Backup Time (Half/Full Load)
19 min/7 min
Fax/Modem Line Protection
No
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Standards
CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
Includes
PowerAlert Software and Cables
Special Features
Cold Start Operation Supported, Hot Swappable Batteries, Individually Controllable Load Banks
VA Rating - UPS Systems
2.2 kVA
NEMA Plug Configuration
5-15P
Transfer Time
2 to 4 msec
NEMA Receptacle Configuration
(7) 5-15R; (2) 5-15/20R
Ports
EPO, RS232, Slot for SNMPWEBCARD, USB
Footnotes
Slot for SNMPWEBCARD
Automatic Volts Regulation
Yes
Capacity - Batteries
2200 VA/1600 W
Operating Temp. Range
104°F (40°C)
Battery Type
Sealed Lead Acid (SLA)
Input Connection
NEMA 5-15P Plug
Housing Material
Polycarbonate
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
EMI / RFI AC Noise Suppression
Yes
Rated input current (Maximum Load)
16A
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total)
Low Voltage Transfer to Battery Power (Setpoint)
79
AC Mode Efficiency Rating (100% Load)
0.94
Undervoltage Correction
Input voltages between 95 and 104 are boosted by 12%
Output Volt Amp Capacity (VA)
2200
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Output kW Capacity (kW)
1.6
Output Voltage Regulation (Line Mode)
-2.25
Communications Cable
2 USB and 2 DB9 cables included
Communications Interface
Contact closure; DB9 Serial; Slot for SNMP/Web interface; USB
Severe Undervoltage Correction
Input voltages between 79 and 94 are boosted by 24%
Audible Noise
Audible Noise < 47dBA At Front Side 1 Meter
High Voltage Transfer to Battery Power (Setpoint)
147
Nominal Input Voltage(s) Supported
120V AC
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Full Load Runtime (min.)
7 min. (1600w)
Load Management Receptacles
Three switchable two-outlet 5-15R load banks
High Availability UPS Features
Hot swappable batteries
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Individually Controllable Load Banks
Yes
UPS AC Suppression Response Time
Instantaneous
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79V to 147V
Output Voltage Regulation (Battery Mode)
+/- 5%
Recommended Electrical Service
20A 120V
DC System Voltage (VDC)
48
UPS AC Suppression Joule Rating
480
Output AC Waveform (Battery Mode)
PWM sine wave
Network Management Cards
SNMPWEBCARD; TLNETCARD; WEBCARDLX
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Internal UPS Replacement Battery Cartridge
RBC54
Relative Humidity
0 to 95%, non-condensing
Output Watt Capacity (Watts)
1600
Output kVA Capacity (kVA)
2.2
Input Circuit Breakers
20A
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Battery Recharge Rate (Included Batteries)
Less than 4 hours from 10% to 90% (typical, full load discharge)
Half Load Runtime (min.)
19 min. (800w)
Battery Replacement Description
Hot-swappable, user replaceable batteries
Primary Form Factor
Tower
Battery Access
Battery access door
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Maximum Operating Temperature
104°F (40°C)
Battery Chemistry
Valve Regulated Lead Acid
Package Contents

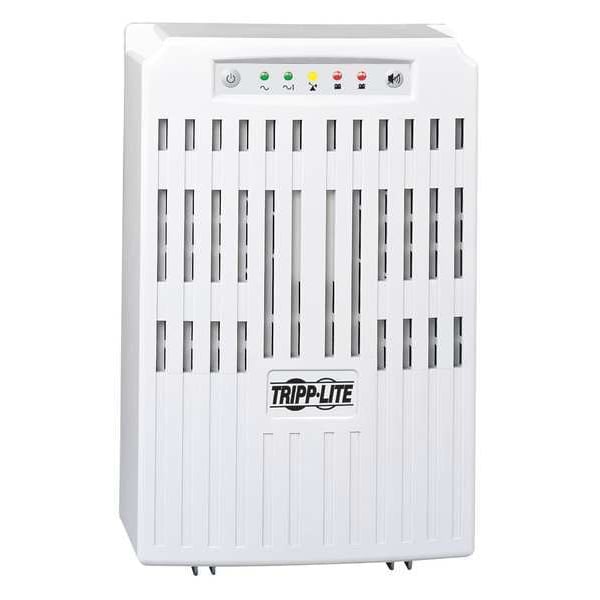

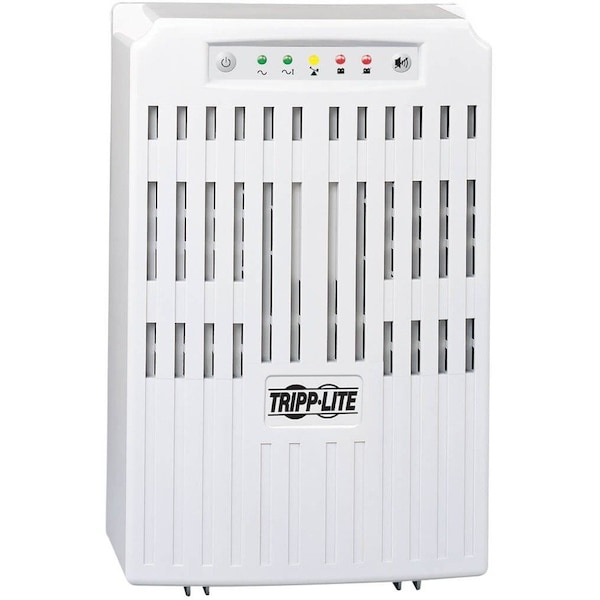

SmartPro SMART2200VS UPS, SMART 2200VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual
Status Indicators
Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Network Management
SNMP Manageable
Load Capacity
2200 VA/1600 W
Typical Battery Recharge Time
4 Hour
Total Number of Expansion Slots
1
Alarm
Low Battery, Overload, On Battery
Package Includes
SMART 2200VS UPS System,;USB and DB9 Serial cabling;User manual
Output Capacity (Watts)
1600
Output Capacity (VA)
2200
Product Compliance
FCC Part 15 Class A (USA)
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Installation Form Factors Supported with Included Accessories
Tower
UPS Applications
Large Network
Power Rating - Real
1.6 kW
Operating Temperature - Minimum
32 Degrees F
Surge Suppression Rating
480 J
Input Current - Maximum
16 A
Battery Recharge Time
4 hr
External Battery Compatible
Not External Battery Pack Compatible
Power Rating - Apparent
2.2 kVA
Receptacle Configuration
5-20R, 5-15R
Includes Battery
Battery Included
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Run Time - Full Load
7 min
Number of Outlets - Surge Only
9
Audible Alarm Conditions
Low Battery, Overload, Power Outage
Transfer Time - Maximum
4 msec
Manufacturer Warranty
2 yr, 3 yr Registration
Operating Temperature - Maximum
104 Degrees F
Transfer Time - Minimum
2 msec
Output Ports Included
EPO, RS-232, SNMP, USB
Data Line Protection
Includes Data Line Surge Protection
Number of Outlets - UPS
9
