UPS Type
Line Interactive
Backup Time (Half/Full Load)
14 min/4 min
NEMA Plug Configuration
L5-30P
Automatic Volts Regulation
Yes
Input Voltage - UPS Systems
120V AC
Outlet Type - UPS Systems
UPS/Surge
Special Features
Cold Start Operation Supported, Hot Swappable Batteries
Footnotes
Slot for SNMPWEBCARD
Transfer Time
2 to 4 msec
Standards
CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
VA Rating - UPS Systems
3.0 kVA
Includes
PowerAlert Software and Cables
Output Voltage - UPS Systems
120V AC
Fax/Modem Line Protection
No
Ports
EPO, RS232, Slot for SNMPWEBCARD, USB
Mounting - UPS Systems
Rack
NEMA Receptacle Configuration
5-15/20R, 5-15R, L5-30R
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Watts - UPS Systems
2.25 kW
Green Certification or Other Recognition
UL1778 (USA)cUL (Canada)NOM (Mexico)Emissions: FCC Class A
Capacity - Batteries
3000 VA/2250 W
Backup/Run Time (Full Load)
4 Minute/14 Minute
Operating Temp. Range
122°F (50°C)
Battery Type
Sealed Lead Acid (SLA)
Input Connection
NEMA 5-15P Plug
Relative Humidity
0 to 95%, non-condensing
Individually Controllable Load Banks
Yes
UPS Input Connection Type
L5-30P
Output Capacity Details
Output is reduced to 1600 watts maximum when used with external battery packs
Communications Cable
2 USB and 2 DB9 cables included
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Output AC Waveform (AC Mode)
Sine wave
Network Management Cards
SNMPWEBCARD; TLNETCARD; WEBCARDLX
Undervoltage Correction
Input voltages between 95 and 104 are boosted by 12%
Primary Form Factor
Tower
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Output kVA Capacity (kVA)
3
Internal UPS Replacement Battery Cartridge
RBC54
Output Receptacles
(7) 5-15R; (2) 5-15/20R; (1) L5-30R
Recommended Electrical Service
120V 30A
UPS AC Suppression Joule Rating
480
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
AC Mode Efficiency Rating (100% Load)
0.94
Full Load Runtime (min.)
4 min. (2250w)
Output Watt Capacity (Watts)
2250
DC System Voltage (VDC)
48
Nominal Input Voltage(s) Supported
120V AC
Audible Noise
Audible Noise < 47dBA At Front Side 1 Meter
UPS Certifications
Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Battery Recharge Rate (Included Batteries)
Less than 4 hours from 10% to 90% (typical, full load discharge)
External Battery Pack Compatibility
BP48V27-2US (multi-pack compatible); BP48V60RT-3U (multi-pack compatible)
Half Load Runtime (min.)
14 min. (1125w)
Output Circuit Breakers
20A branch rated (x2) - breaker 1 protects 5-20R, breaker 2 protects 5-15R, L5-30R is unbreakered
Frequency Compatibility
60 Hz
Output Volt Amp Capacity (VA)
3000
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
UPS AC Suppression Response Time
Instantaneous
High Voltage Transfer to Battery Power (Setpoint)
147
High Availability UPS Features
Hot swappable batteries
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Battery Access
Battery access door
Output Voltage Regulation (Battery Mode)
+/- 5%
Input Circuit Breakers
30A
Output Voltage Regulation (Line Mode)
-2.25
Output AC Waveform (Battery Mode)
PWM sine wave
Battery Replacement Description
Hot-swappable, user replaceable batteries
Low Voltage Transfer to Battery Power (Setpoint)
79
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
UPS Housing Material
Polycarbonate
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79V to 147V
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Output kW Capacity (kW)
2.25
Rated input current (Maximum Load)
24A
EMI / RFI AC Noise Suppression
Yes
Communications Interface
USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Audible Alarm
Audible alarm indicates power-failure, overload and low-battery conditions
Nominal Voltage Details
120v nominal output in battery mode
Severe Undervoltage Correction
Input voltages between 79 and 94 are boosted by 24%
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Load Management Receptacles
Three switchable two-outlet 5-15R load banks
Maximum Operating Temperature
122°F (50°C)
Backup/Run Time (Half Load)
14 Minute
Plug/Connector Type
NEMA L5-30P
Product Name

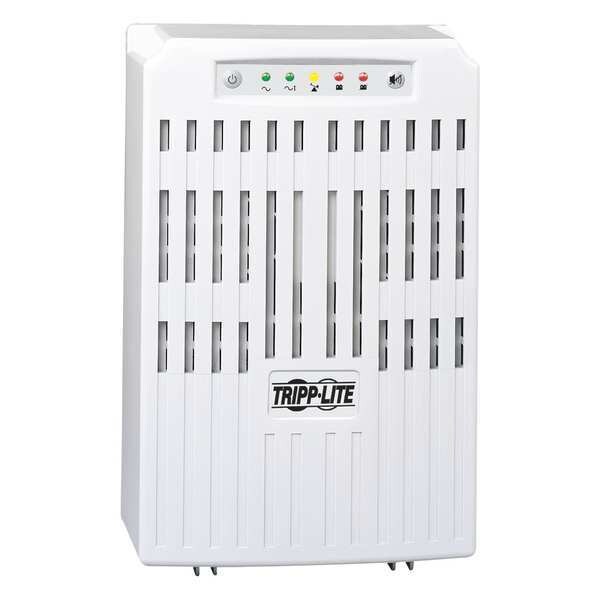

SmartPro VS Expandable Tower 3000VA UPS
Network Management
SNMP Manageable
Waveform Type
Pulse-width Modulated Sine Wave
Product Type
Line-interactive UPS
Additional Information
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again, Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
Load Capacity
3000 VA/2250 W
Status Indicators
Battery Charge Level, AC Line Power, Voltage Regulation, UPS Load Level, Low Battery / Replace Battery
Receptacle Detail
1 x NEMA 5-15R, 7 x NEMA 5-20R, 2 x NEMA L5-30R
Surge Energy Rating
480 J
Battery Chemistry
Valve Regulated Lead Acid
Battery Characteristics
Maintenance-free
Typical Battery Recharge Time
4 Hour
Package Contents
SmartPro VS Expandable Tower 3000VA UPS, SMART 3000VS UPS System, PowerAlert Software and cabling, Warranty information, Instruction manual
Alarm
Power Failure, Low Battery, Overload
Certifications & Standards
UL1778 (USA), cUL (Canada), NOM (Mexico), Emissions: FCC Class A
Total Number of Expansion Slots
1
Installation Form Factors Supported with Included Accessories
Tower
Output Capacity (Watts)
2250
UPS Applications
Large Network
Runtime Half Load (min.)
14 min. (1125W)
Product Compliance
FCC Part 15 Class A (USA)
Runtime Full Load (min.)
4 min. (2250W)
Output Capacity (VA)
3000
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
Package Includes
SMART 3000VS UPS System;USB & DB9 Cables;Instruction manual
Surge Suppression Rating
480 J
Number of Outlets - UPS
10
Power Rating - Apparent
3 kVA
Operating Temperature - Maximum
104 Degrees F
Run Time - Half Load
14 min
Audible Alarm Conditions
Low Battery, Overload, Power Outage
Power Rating - Real
2.25 kW
Output Ports Included
EPO, RS-232, SNMP, USB
External Battery Compatible
External Battery Pack Compatible
Number of Outlets - Surge Only
10
Transfer Time - Minimum
2 msec
Transfer Time - Maximum
4 msec
Input Current - Maximum
24 A
Plug Configuration
L5-30P
Data Line Protection
Includes Data Line Surge Protection
Receptacle Configuration
5-20R, 5-15R, L5-30R
Includes Battery
Battery Included
Operating Temperature - Minimum
32 Degrees F
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Battery Recharge Time
4 hr
Run Time - Full Load
4 min
Manufacturer Warranty
2 yr, 3 yr Registration
