Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
8 min/2 min
Outlet Type
(3) Surge; (3) UPS/Surge
VA Rating - UPS Systems
350.0 VA
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Special Features
(2) Built-In ECO Outlets w/Auto-Off
Automatic Volts Regulation
No
Fax/Modem Line Protection
Yes
NEMA Receptacle Configuration
(6) 5-15R
Transfer Time
3 msec from Battery to AC, 4 msec from AC to Battery
Standards
CSA, FCC Part 15 Class B, NOM, RoHS, UL1778
NEMA Plug Configuration
5-15P
Input Connection
6 ft Cord with NEMA 5-15P Plug
Switches
Combination switch controls on/off power status and self-test operation; second recessed push-button switch enables ECO outlet switching
Low Voltage Transfer to Battery Power (Setpoint)
99
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
High Voltage Transfer to Battery Power (Setpoint)
139
LED Indicators
3 LEDs indicate power status, overload/check battery and ECO-mode status
AC Mode BTU / Hr. (Full Load)
6
Recommended Electrical Service
15A 120V
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
UPS AC Suppression Response Time
Instantaneous
Audible Alarm
Audible alarm indicates power-failure and overload status
AC Mode Efficiency Rating (100% Load)
0.99
Internal UPS Replacement Battery Cartridge
IMPORTANT BATTERY REPLACEMENT INFORMATION > If your ECO350UPS has no battery access door, please contact a local electronics repair technician to source and install a matching replacement battery; If your ECO350UPS does have a battery replacement door and the original battery inside has a rating of 12V 2.8AH, please contact Tripp Lite for assistance
Output Watt Capacity (Watts)
180
Rated input current (Maximum Load)
10A
EMI / RFI AC Noise Suppression
Yes
Output Volt Amp Capacity (VA)
350
Communications Interface
USB (HID enabled)
Individually Controllable Load Banks
No
Communications Cable
RJ to USB interface cable included
Output Voltage Regulation (Battery Mode)
+/- 5%
Half Load Runtime (min.)
11.3 min. (90w)
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
DC System Voltage (VDC)
12
Installation Form Factors Supported with Included Accessories
Tower; Ultra-compact desktop; Wallmount
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
UPS AC Suppression Joule Rating
420
Relative Humidity
0 to 95%, non-condensing
Output AC Waveform (Battery Mode)
PWM sine wave
UPS Certifications
ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Primary Form Factor
Desktop
Nominal Input Voltage(s) Supported
120V AC
Load Capacity
350 VA/180 W
Typical Battery Recharge Time
7 Hour
Package Contents
350VA Desktop UPS, USB Interface Cable, PowerAlert software available via free download, Instruction Manual with Warranty Information
Voltage Regulation Description
Input voltage range of 90 to 145
Output Voltage Regulation (Line Mode)
120V (+6%/-12%)
Battery Recharge Rate (Included Batteries)
6.5 hours (10% to 90%)
Product Certifications
RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
Frequency Compatibility Details
Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal.
High Availability UPS Features
Surge/noise protection
Output Capacity (Watts)
210
Load Management Receptacles
The ECO Energy-Saving option will automatically POWER OFF two designated ECO outlets when the device connected to the MASTER load-sensing outlet is turned off (after approximately 3 minutes); ECO outlets will immediately POWER ON when the device connected to the MASTER load-sensing outlet begins consuming 15 watts or more (see manual)
UPS Applications
Computer/Peripherals; Retail/Point of Sale; Hospitality
Battery Replacement Description
Replaceable internal batteries (see manual)
Output Capacity Details
2.9A @ 120V. (LINE MODE) 110%+/- 10% @ 5 minutes; (BATTERY MODE) 110% +/- 10% @ 5 seconds
Package Includes

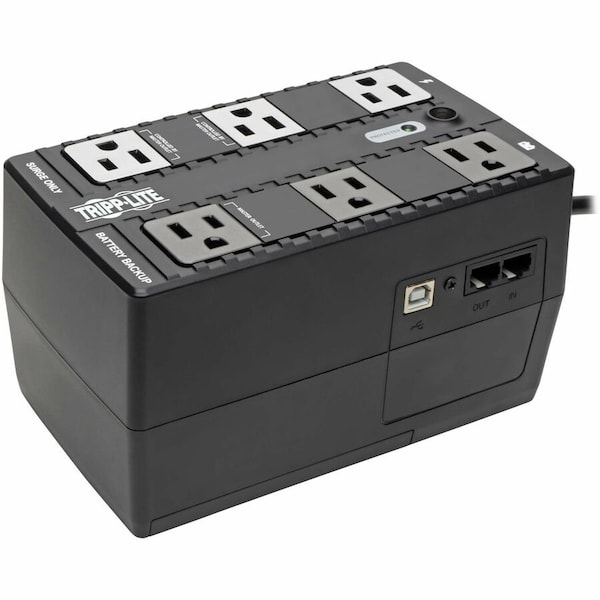

ECO350UPS 350VA 210W 120V Standby ECO UPS with 6 Outlets;USB cable;Owner's manual
Product Compliance
ENERGY STAR Qualified; FCC Part 15 Class B (USA)
Operating Elevation (ft.)
6561 ft. (2000 m) above sea level
Battery Access
Battery access door
Input Circuit Breakers
5A
Receptacle Configuration
5-15R
Audible Alarm Conditions
Low Battery, Overload, Replace Battery
Power Rating - Real
210 W
Transfer Time - Maximum
10 msec
Number of Outlets - Surge Only
3
Operating Temperature - Maximum
104 Degrees F
Manufacturer Warranty
3 yr Limited
External Battery Compatible
Not External Battery Pack Compatible
Battery Recharge Time
6.5 hr
Data Line Protection
Includes Data Line Surge Protection
Battery Chemistry
Valve Regulated Lead Acid
Automatic Voltage Regulation
No Automatic Voltage Regulation
Power Rating - Apparent
350 VA
Includes Battery
Battery Included
Surge Suppression Rating
316 J
Output Ports Included
USB
Input Current - Maximum
5 A
Transfer Time - Minimum
6 msec
Visible Indicator Light Conditions
Fault
Run Time - Full Load
2 min
Operating Temperature - Minimum
32 Degrees F
Number of Outlets - UPS
3
