CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
Special Features
Hot Swappable Batteries
NEMA Receptacle Configuration
(4) 5-15R; (4) 5-15/20R
Input Connection
NEMA 5-15P Plug
Battery Type
VRLA
Housing Material
PVC
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Output Capacity Details
Output is reduced to 1600W maximum with 1 external battery pack and 1200W maximum with 2 or more external battery packs
Undervoltage Correction
Input voltages between 95 and 105 are boosted by 10%
AC Mode Efficiency Rating (100% Load)
0.99
Input Phase
Single-Phase
Relative Humidity
0 to 95%, non-condensing
Low Voltage Transfer to Battery Power (Setpoint)
87
Full Load Runtime (min.)
7 min. (2400w)
Output Voltage Regulation (Battery Mode)
+/- 5%
Output kW Capacity (kW)
2.4
Load Management Receptacles
Two switchable single-outlet 5-15R load banks
Cooling Method
Fan
UPS AC Suppression Joule Rating
480
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Battery Recharge Rate (Included Batteries)
Less than 9 hours from 10% to 90% (typical, full load discharge)
Communications Cable
3 DB9 cables included
Output AC Waveform (Battery Mode)
PWM sine wave
High Voltage Transfer to Battery Power (Setpoint)
140
Output Volt Amp Capacity (VA)
3000
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
UPS AC Suppression Response Time
Instantaneous
Expandable Runtime
Yes
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Output Voltage Regulation (Line Mode)
-2.6
Individually Controllable Load Banks
Yes
Severe Undervoltage Correction
Input voltages between 87 and 94 are boosted by 22%
Output Watt Capacity (Watts)
2400
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; contact closure communications via two additional DB9 ports (3 total)
Output kVA Capacity (kVA)
3
EMI / RFI AC Noise Suppression
Yes
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Nominal Input Voltage(s) Supported
120V AC
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 87 to 140
Communications Interface
DB9 Serial; Contact closure
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
AC Mode BTU / Hr. (Full Load)
83
Overvoltage Correction
Input voltages between 127 and 140 are reduced by 12%
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Power Factor
0.8
DC System Voltage (VDC)
24
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation; set of 4 rear-panel switches control system enable and contact closure port inverter shutoff commands
Battery Mode BTU / Hr. (Full Load)
1225
Rated input current (Maximum Load)
22A
Output Circuit Breakers
15A branch rated (x2) - each breaker protects 4 outlets
Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Half Load Runtime (min.)
23 min. (1200w)
Primary Form Factor
Tower
Maximum Operating Temperature
104°F (40°C)
Status Indicators
Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Battery Chemistry
Valve Regulated Lead Acid
Load Capacity
3000 VA/2400 W
Typical Battery Recharge Time
4 Hour
Alarm
On Battery
Form Factor
Tower
Battery Life
6 Year
Network Management
SNMP Manageable
Additional Information

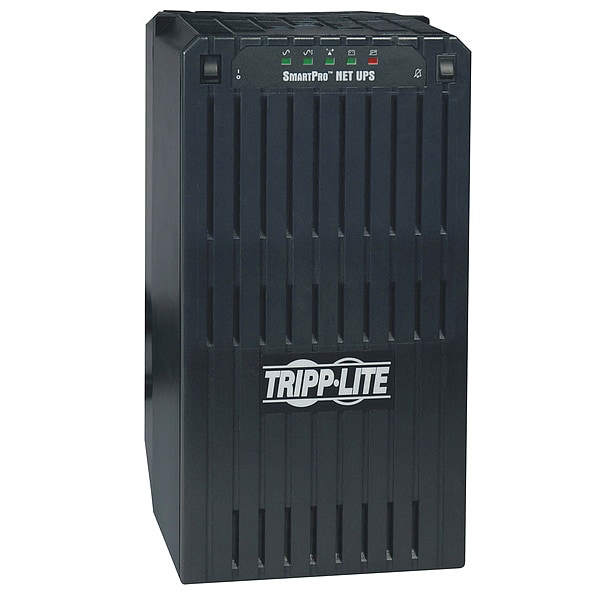

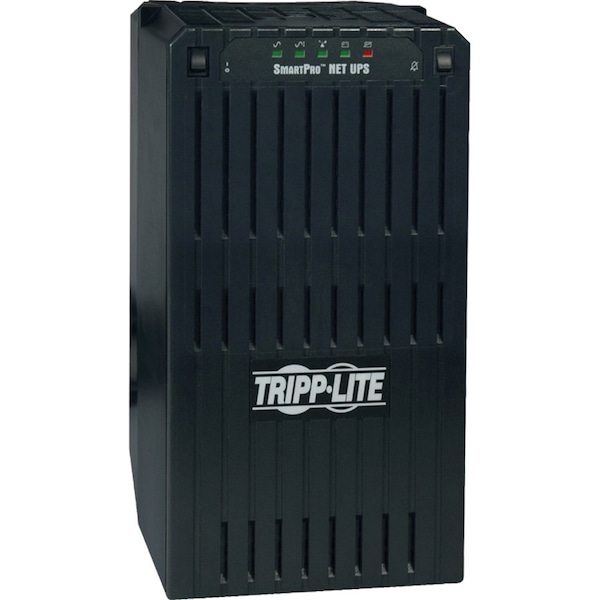

SMART3000NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression, 3000VA / 2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices, Large internal batteries offer runtimes of 23 minutes at half load (1500VA / 1200 watts) and 7 minutes at full load (3000VA / 2400 watts), Runtime is further expandable with optional external BP24V33 battery packs, Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V, Includes 8 fully protected outlets (4 NEMA 5-15R & 4 NEMA 5-15/20R) with 2 single outlet load banks that can be individually powered off and back on again via software interface, PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user defined script commands, Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software, In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity, Supports activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment, Diagnostic LEDs (indicate 17 performance conditions), UL (USA), cUL (Canada), NOM (Mexico), FCC Class B (Residential) Listed, $250,000 Ultimate Lifetime Insurance (USA & Canada Only)
Package Contents
SmartPro 3000NET UPS, SMART 3000NET UPS System, PowerAlert Software and three 6 foot network cables, Warranty information, Instruction manual
UPS System, Line Interactive, Power Rating 3 kVA, Wattage 2.4 kW, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 23 min/7 min, Mounting Tower, Outlet Type UPS/Surge, Number of Outlets 8, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration 5-15/20R, 5-15R, NEMA Plug Configuration L5-30P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 2 to 4 msec, Width 9 in, Depth 13 in, Height 17 in, Cord Length 8 ft, Display Type LED
