UPS Type
Online/Double Conversion
Input Voltage
100/115/120/127V AC
Output Voltage
100/110/115/120/127V AC
Backup Time (Half/Full Load)
16.7 min/5.7 min
Fax/Modem Line Protection
Yes
VA Rating - UPS Systems
3.0 kVA
NEMA Receptacle Configuration
(8) 5-15/20R; (1) L5-30R
Standards
CE (Europe), cUL, FCC (USA), REACH, RoHS, UL
Ports
DB9 Serial, EPO, USB
Automatic Volts Regulation
Yes
Includes
DB9 Cable, USB Cables
NEMA Plug Configuration
L5-30P
Special Features
Hot-Swappable Batteries
Capacity - Batteries
3000 VA/2700 W
Input Connection
NEMA L5-30P Plug
UPS AC Suppression Response Time
Instantaneous
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Nominal Input Voltage(s) Supported
100V AC; 110V AC; 120V AC; 127V AC
High Voltage Transfer to Battery Power (Setpoint)
150
Output Voltage Regulation (Battery Mode)
+/- 3%
DC System Voltage (VDC)
72
Output Voltage Regulation (Line Mode)
+/- 2%
Communications Interface
USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Input Circuit Breakers
40A
Undervoltage Correction
2% output voltage regulation during undervoltages to 55V (33% load), 70V (70% load), 100V (100% load)
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Switches
2 switches control off/on power status and alarm-cancel/self-test operation
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Battery Replacement Description
Hot-swappable, user replaceable batteries
Nominal Input Voltage Description
120V factory default
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Primary Form Factor
Tower
Rated input current (Maximum Load)
24A
UPS AC Suppression Joule Rating
570
Alarm Cancel Operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Battery Access
Battery access door
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Output Voltage Regulation (Economy Line Mode)
+/- 10%
Individually Controllable Load Banks
Yes
Voltage Regulation Description
Online, double-conversion power conditioning
Relative Humidity
0 to 95%, non-condensing
Battery Recharge Rate (Included Batteries)
Less than 3 hours from 10% to 90% (typical, full load discharge)
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
EMI / RFI AC Noise Suppression
Yes
Low Voltage Transfer to Battery Power (Setpoint)
55V (33% load), 70V (70% load), 100V (100% load)
Crest Factor
0.125694444444444
Output Watt Capacity (Watts)
2700
Battery Mode BTU / Hr. (Full Load)
1626
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Recommended Electrical Service
30A 120V
Front Panel LCD Display
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
Half Load Runtime (min.)
13.2 min. (1350w)
Expandable Runtime Description
External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
AC Mode Efficiency Rating (100% Load)
0.92
Output Volt Amp Capacity (VA)
3000
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Output Capacity Details
ON LINE MODE: Maximum output capacity rating is reduced to 2430W (115V), 2295W (110V), 2160W (100V); FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 1890 watts, 115V 1701 watts, 110V 1607 watts, 100V 1512 watts) OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)
Nominal Output Voltage(s) Supported
100V; 110V; 120V; 127V
Communications Cable
USB and DB9 cabling included
Output kW Capacity (kW)
2.7
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Overvoltage Correction
2% output voltage regulation during overvoltages to 150
AC Economy Mode Efficiency Rating (100% Load)
0.98
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications
AC Mode BTU / Hr. (Full Load)
801
AC Economy Mode BTU / Hr. (Full Load)
188
Operating Elevation (m)
Up to 3000m
Load Management Receptacles
Two switchable four-outlet load banks
Output AC Waveform (Battery Mode)
Pure Sine wave
Frequency Compatibility Details
ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency when input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal.
Internal UPS Replacement Battery Cartridge
RBC96-3U
Audible Noise
< 51.5 dB at front side 1m
Full Load Runtime (min.)
4.1 min. (2700w)
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
External Battery Pack Compatibility
BP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18 -2US (multi-pack compatible)
Output kVA Capacity (kVA)
3
High Availability UPS Features
Automatic inverter bypass; Hot swappable batteries
Software Included
PowerAlert Software
Network Management
SNMP Manageable

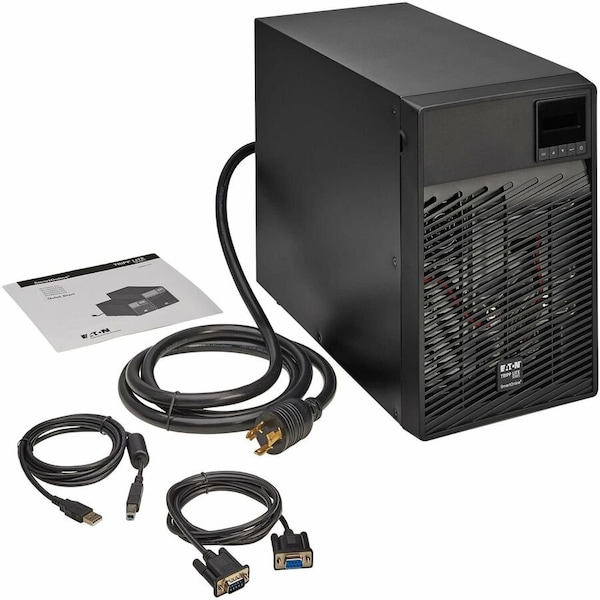

Package Contents
SmartOnline SU3000XLCD 3000VA Tower UPS, Poweralert Software CD, Owner's Manual with Warranty Information, EPO (Emergency Power Off) Cable, USB Cable, DB9 Cable
Typical Battery Recharge Time
3 Hour
Load Capacity
3000 VA/2700 W
Power Factor (Input)
0.99
Output Capacity (VA)
3000
Output Capacity (Watts)
2700
Installation Form Factors Supported with Included Accessories
Tower
Package Includes
3000VA 2700W 120V Double-Conversion UPS;USB cable;DB9 cable;Quick Start Guide
Online Mode Heat Dissipation (BTU/Hr) @ Full Load
911
Product Compliance
CE (Europe); FCC (USA)
AC Suppression Joule Rating
190
Product Certifications
UL Listed; cUL Listed
AC Suppression Response Time
Instantaneous
UPS Applications
Mission Critical Applications
LED Indicators
4 status-indicating LEDs
Replacement Battery Part Number
744-A4313
Surge Suppression Rating
190 J
Output Ports Included
DB9 Serial, EPO, USB
Plug Configuration
L5-30P
Operating Temperature - Maximum
104 Degrees F
External Battery Compatible
External Battery Pack Compatible
Operating Temperature - Minimum
32 Degrees F
Audible Alarm Conditions
Low Battery, Overload, Power Outage, Shutdown, UPS Fault, UPS Startup
Power Rating - Apparent
3 kVA
Number of Outlets - Surge Only
9
Includes Battery
Battery Included
Battery Recharge Time
3 hr
Input Current - Maximum
24 A
Transfer Time - Maximum
0 msec
Number of Outlets - UPS
9
Battery Chemistry
Valve Regulated Lead Acid
Receptacle Configuration
5-20R, L5-30R
Power Rating - Real
2.7 kW
Run Time - Full Load
5.7 min
External Battery Pack Part Number
BP96V
Manufacturer Warranty
2 yr
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
