VA Rating - UPS Systems
6.0 kVA
UPS Type
Online/Double Conversion
Input Voltage
208/240V AC
Output Voltage
120/208/240V AC
Backup Time (Half/Full Load)
8.5 min/2 min
NEMA Receptacle Configuration
(2) L6-20R; (2) L6-30R; (4) 5-15R; (8) 5-15/20R
Special Features
and PDU, Automatic Inverter Bypass, Cold Start Operation Supported, High Efficiency Economy Mode Operation, Hot Swappable Batteries, Manual Bypass Switch, Schedulable Daily Hours of Economy Mode Operation, UPS
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Includes
(4) Post Rackmount Hardware, 6 ft DB9 Cable, 6 ft USB Cables, SU6000XFMR2U Low Voltage Transformer, SUPDMB6K Detachable PDU with Maintenance Bypass Switch
Fax/Modem Line Protection
No
Footnotes
Slot for SNMPWEBCARD
Automatic Volts Regulation
No
NEMA Plug Configuration
5-15P
Ports
Slot for SNMPWEBCARD, USB and RS232
Standards
CSA (Canada), FCC Part 15 Class a (USA), IEC 61000, RoHS, UKCA, UL1778
Capacity - Batteries
6000 VA/5400 W
Input Connection
NEMA 5-15P Plug
Output Watt Capacity (Watts)
5400
Output Volt Amp Capacity (VA)
6000
UPS AC Suppression Joule Rating
2595
AC Economy Mode Efficiency Rating (100% Load)
0.96
Battery Mode BTU / Hr. (Full Load)
2279
High Voltage Transfer to Battery Power (Setpoint)
280V (full load) / 300V (90% load or less)
Relative Humidity
0 to 95%, non-condensing
Output Circuit Breakers
High voltage 20A breaker protects L6-20R outlets, L6-30R outlets are unbreakered; Low voltage 20A breakers protect 4 5-15/20R outlets each; Low voltage 15A breakers protect 2 5-15/20R outlets each
Frequency Compatibility Details
Output frequency regulation +/-0.05Hz (free running)
Nominal Input Voltage(s) Supported
208V AC; 240V AC
EMI / RFI AC Noise Suppression
Yes
Front Panel LCD Display
Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats (see manual)
Communications Cable
USB, DB9 serial and EPO cables included
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
Primary Form Factor
Rackmount
AC Mode Efficiency Rating (100% Load)
0.9
Rated input current (Maximum Load)
31.9A (200V), 30.6A (208V), 29A (220V), 27.7A (230V), 26.6A (240V)
AC Mode BTU / Hr. (Full Load)
1767
Recommended Electrical Service
30A
Output Voltage Regulation (Battery Mode)
+/- 2%
Output Capacity Details
Output capacity de-rates to 4992 watts when used at 208V nominal; Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as the overload is cleared
Audible Noise
60 dBA at front side 1 meter
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI)
Crest Factor
0.125694444444444
Output Receptacle Details
Output receptacles and input line cord are mounted on a detachable PDU backplate with bypass switch to enable hot-swappable power module replacement
Half Load Runtime (min.)
8.5 min. (2700 watts)
Battery Replacement Description
Hot-swappable, user replaceable batteries
Audible Alarm
Unique audible alarms for all major UPS, environmental and power conditions (see manual)
Nominal Input Voltage Description
Factory configured to 208V
Low Voltage Transfer to Battery Power (Setpoint)
156V (full load) / 100V (50% load or less, derates linearly)
Transfer Time (Economy Mode)
8ms. typical power failure response in optional economy mode
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Individually Controllable Load Banks
No
Voltage Regulation Description
Online, double-conversion power conditioning
Communications Interface
USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
UPS AC Suppression Response Time
Instantaneous
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Operating Elevation (m)
0-3000 m
Battery Recharge Rate (Included Batteries)
6 hours from 10% to 90% (typical, full load discharge)
Output Voltage Regulation (Line Mode)
+/- 2%
Overvoltage Correction
Corrects overvoltages as high as 300V (<90% load) and 280V (full load)
Battery Access
Front panel battery access door
Included Mounting Accessory Description
Two sets of adjustable 4 post 19 inch rackmount installation rails included
High Availability UPS Features
Automatic inverter bypass; Battery Independent Restart; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch
Switches
Includes main power off/on switch, plus 2 switches to set and execute scrollable LCD functions. A manual bypass switch featured on the detachable PDU allows for complete removal of the UPS during routine maintenance without disrupting power to connected loads.
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Output AC Waveform (Battery Mode)
Pure Sine wave
Expandable Battery Runtime
Runtime is expandable with external battery packs
Nominal Output Voltage(s) Supported
120V; 208V; 240V
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )
Output Voltage Regulation (Economy Line Mode)
+/- 10%
Output kVA Capacity (kVA)
6
LED Indicators
6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status
WatchDog Compatibility
Yes
Operating Elevation (ft.)
0-3000m (0 to 10,000 ft.)
Undervoltage Correction
Corrects undervoltages as low as 100 (<50% load) and 155V (full load); derates linearly
External Battery Pack Compatibility
BP192V1037C-1PH ; BP192V12-3U ; BP192V1407C-1PH ; BP192V557C-1PH ; BP192V787C-1PH ; BP192V5RT2U (limit 1)
Network Monitoring Port Description
Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
Internal UPS Replacement Battery Cartridge
RBC5-192
Output kW Capacity (kW)
5.4
Alarm Cancel Operation
Alarm cancel switch
UPS Certification Details
IEC 61000-4-5 1995 B Surge Immunity
DC System Voltage (VDC)
192
AC Economy Mode BTU / Hr. (Full Load)
768
Full Load Runtime (min.)
2 min. (5400 watts)
Form Factor
Rack-mountable
Load Capacity
6000 VA/5400 W
Network Management
SNMP Manageable
Software Included
PowerAlert Software Suite
Bypass Switch
Manual, Automatic
Package Contents

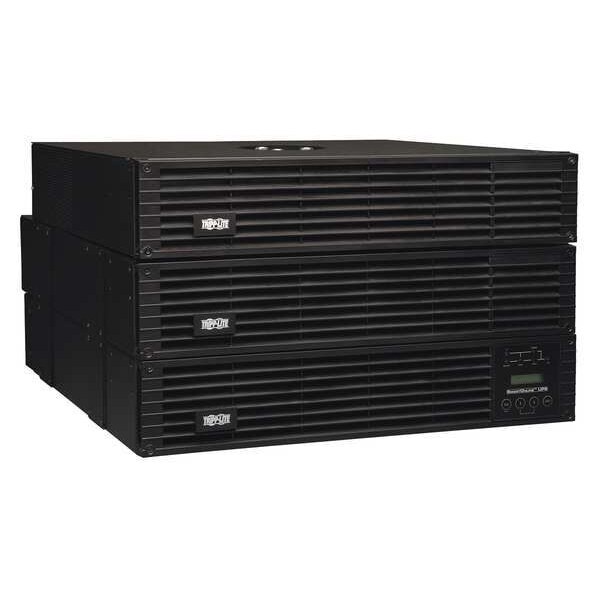

SmartOnline EZ SU6000RT4UTF 6000 VA Rack mountable UPS, PowerAlert Software Suite CD, Rail Kit, USB Cable, Serial Cable, EPO Cable
Typical Battery Recharge Time
6 Hour
Output Capacity (VA)
6000
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
UPS Applications
Mission Critical Applications
Online Mode Heat Dissipation (BTU/Hr) @ Full Load
1767
Product Certifications
IEC 61000; CSA (Canada); UL 1778
Output Capacity (Watts)
5400
Package Includes
SU6000RT4UHVPM hot swappable UPS Power Module;SUPDMB6K Detachable PDU with Maintenance Bypass Switch;SU6000XFMR2U low voltage transformer;1 x 6-ft. USB Cable;1 x 6-ft. DB9 Cable;4-Post Rackmount Hardware (2 sets)
Product Compliance
FCC Part 15 Class A (USA); UKCA
External Battery Pack Part Number
BP192V1037C-1PH, BP192V12-3U, BP192V1407C-1PH, BP192V5RT2U, BP192V787C-1PH
Power Rating - Apparent
6 kVA
Replacement Battery Part Number
RBC5-192
Run Time - Full Load
2 min
Operating Temperature - Maximum
104 Degrees F
External Battery Compatible
External Battery Pack Compatible
Includes Battery
Battery Included
Number of Outlets - UPS
16
Transfer Time - Maximum
0 msec
Battery Chemistry
Valve Regulated Lead Acid
Battery Recharge Time
6 hr
Plug Configuration
L6-30P
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Number of Outlets - Surge Only
16
Input Current - Minimum
26.6 A
Input Current - Maximum
31.9 A
Surge Suppression Rating
2,595 J
Manufacturer Warranty
2 yr
Receptacle Configuration
5-20R, 5-15R, L6-20R, L6-30R
Output Ports Included
DB9 Serial, EPO, SNMP, USB
Power Rating - Real
5.4 kW
Operating Temperature - Minimum
32 Degrees F
