Tritan

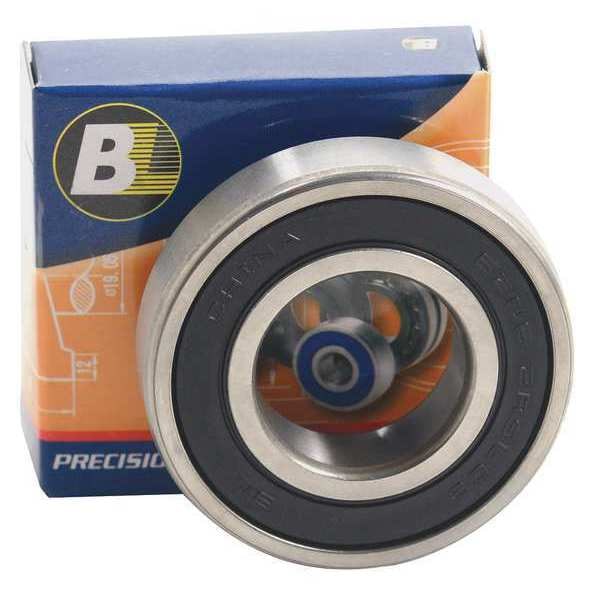

Bearings, Sealed, 7.00mm Bore Dia., ABEC 1

product price: $2.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Sealed
  • Material 52100 Steel
  • Bore Dia. 0.25"
  • Outside Dia. 0.75"
  • Width 0.2812"
See all product information

Product Information

Dimensions

Bore Dia. 0.25"
Outside Dia. 0.75"
Width 0.2812"
Bore Diameter 1/4 in
Bore Diameter Tolerance +0/-0.0003 in
Outside Diameter Tolerance +0/-0.0004 in
Outside Diameter 3/4 in
Outer Ring Width 0.281 in

Details

Type Sealed
Material 52100 Steel
Item Miniature Ball Bearing
Temp. Range (F) -40 Degrees to 302 Degrees F
Max. RPM 39,000 RPM
ABEC Tolerance 1
Static Load Capacity (Lb.) 200 lb
Lubrication MultiTemp SRL
Dynamic Load Capacity (Lb.) 525 lb
Seal Material Rubber
Cage Type Sealed
Ring Material Alloy Steel
System of Measurement Inch
For Environment Oily/Greasy
Bearing Industry Number R4A
Seal Type Contact
Standards AFBMA, ISO Certified 9001
Maximum Temperature 302 Degrees F
Ball Material Alloy Steel
Maximum Speed 48,000 RPM
Lubricant Material Polyrex EM
Flange Type Non-Flanged
Dynamic Radial Load Capacity 525 lbf
Minimum Temperature -40 Degrees F
Ball Material Grade AISI 52100
Retaining Ring Groove No
ABEC Rating 1
Miniature Bearing Yes
Includes Retaining Ring No
Static Radial Load Capacity 200 lbf
Ring Material Grade AISI 52100
Closure Double Sealed
Temp. Range -20 to +212° F

Description

Miniature Ball Bearing, Bearing Industry Number R4A, Bore Diameter 1/4 in, Closure Double Sealed, For Environment Oily/Greasy, Outer Ring Width 0.281 in, Outside Diameter 3/4 in, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Inch, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade AISI 52100, Bore Diameter Tolerance +0/-0.0003 in, Cage Type Sealed, Dynamic Radial Load Capacity 525 lbf, Flange Diameter Not Applicable, Flange Thickness Not Applicable
