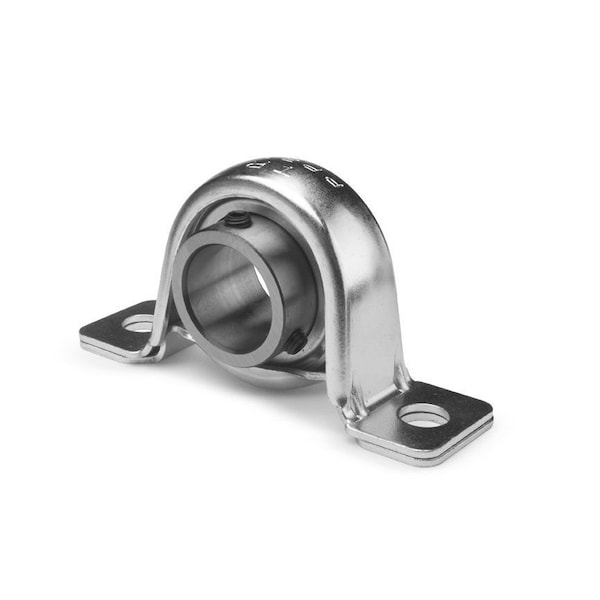

PillowBlkBrg, Steel, 0.984", Steel, 3/4"

  • Mfr # SBPP204-12
  • Zoro # G009926711
product price:
$
23.85
/ea

Key Features

Shaft Locking Type
Eccentric Locking Collar
Closure
Double Sealed
Bearing Material Grade
AISI 52100
Bearing Insert Type
Ball
Expansion Type
Fixed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SBPP204-12
Zoro #
G009926711
UPC #
888569040640
Country of Origin
China
Item
Pillow Block Bearing
Shaft Locking Type
Eccentric Locking Collar
Closure
Double Sealed
Bearing Material Grade
AISI 52100
Bearing Insert Type
Ball
Expansion Type
Fixed
Lubrication Openings
Grease Fitting
Internal Clearance
C3
Maximum Misalignment Angle
5 Degrees
Included Bearing
SB204-12
Housing Material
Steel
Bearing Lubrication
Relubricateable
Maximum Temperature
250 Degrees F
Maximum Speed
6,490 RPM
Minimum Temperature
-40 Degrees F
Mount Type
Bolt-Through
System of Measurement
Inch
Dynamic Radial Load Capacity
2,877 lbf
Number of Mount Holes
2
Application
Agricultural Equipment, Commercial, Construction Machinery, Conveyors, Exercise Equipment, Fans/Blowers, Food Processing Equipment, Industrial, Industrial Machinery
Number of Rows
1
Static Radial Load Capacity
1,494 lbf
Bore Type
Cylindrical
Includes
(2) Set Screws
Seal Type
Contact
Resistance Properties
Wear-Resistant
Standards
AFBMA
Split Housing
Not Split
Bearing Insert Material
Steel
Self Lubricating Bearing
No
Seal Material
Nitrile
Lubricant Material
NLGI #2 Equivalent
Features
Full Cover Metal-Shroud Seals, Lightweight Unit for Applications with Low Rotating Speed or Light Load

Description

Pillow Block Bearing, Base Height 0.126 in, Base Width 1.259 in, Bearing Insert Material Steel, Bearing Insert Type Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Steel, Included Bearing SB204-12, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,490 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 2 63/64 in, Mount Type Bolt-Through
