Shop TRUESEAL

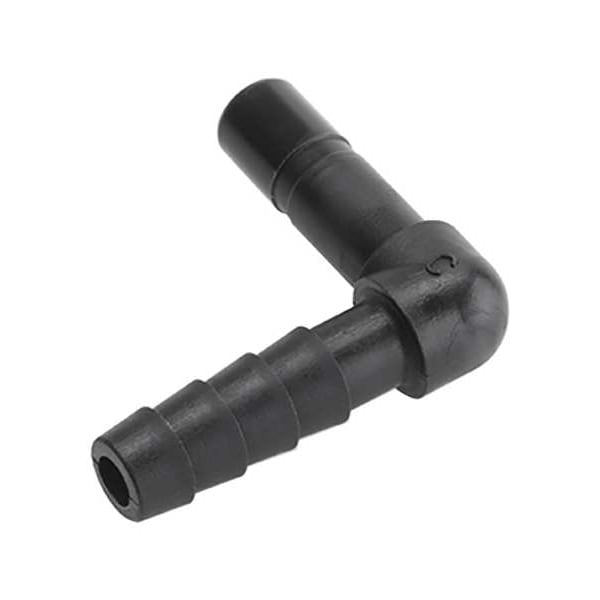

Barbed Fitting Adapter, 1/4 in Tube Size, PVDF, Black

  • Mfr # FB4TEB4

  • Zoro # G4635474

product price:
$
2.55
/ea

Key Features

Tube Fitting Material
Kynar(R)
Specific Fitting Shape
90 Degrees Elbow
Fitting Connection Type
Tube x Barb
Tube Size
1/4 in
Stem OD
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FB4TEB4
Zoro #
G4635474
UPC #
-
Country of Origin
United States
Item
Barbed Fitting Adapter
Tube Fitting Material
Kynar(R)
Specific Fitting Shape
90 Degrees Elbow
Fitting Connection Type
Tube x Barb
Stem OD
1/4 in
Max. Pressure
300 psi @ 275 Degrees F
Temp. Range
0 Degrees to 275 Degrees F
Gasket Material
FKM
Special Features
Field Attachable and Quickly Connect to Tubing, Push Button Release
Color
Black
Application
Air, Potable Water
Compliance
FDA, NSF/ANSI 51
Standards
FDA Approved, NSF/ANSI 51
Maximum Operating Temperature
275 Degrees F
Barb Style
Standard
Fitting Shape
Straight
Fitting Side A Connection Type
Tube Stem
Fitting Material
PVDF
Maximum Operating Pressure
300 psi @ 275 Degrees F
Minimum Operating Temperature
0 Degrees F
Fitting Side B Connection Type
Barbed
Compatible Tube Material
Fluoropolymer, Nylon, Polyethylene, Polypropylene, Polyurethane, PVDF, Vinyl
Fitting Side 1 Connection Type
Tube Stem
Operating Temperature - Maximum
275 Degrees F
O-Ring Material
Fluorocarbon
Operating Temperature - Minimum
0 Degrees F
Fitting Side 2 Connection Type
Barbed
Operating Pressure - Maximum
300 psi
Finish
Black Kynar
Connector Type
Adapter
For Media Type
Air, Potable Water
Fitting Features
Rigid

Description

Barbed Fitting Adapter, Fitting Side A Connection Type Tube Stem, Fitting Side B Connection Type Barbed, Fitting Side A Tube Inner Diameter 1/4 in, Fitting Side B Tube Inner Diameter 1/4 in, Barb Style Standard, Fitting Material PVDF, Overall Length 1 in, Specific Fitting Shape 90 Degrees Elbow, Application Air, Potable Water, Maximum Operating Pressure 300 psi @ 275 Degrees F, Maximum Operating Temperature 275 Degrees F, Standards FDA Approved, NSF/ANSI 51, Color Black
