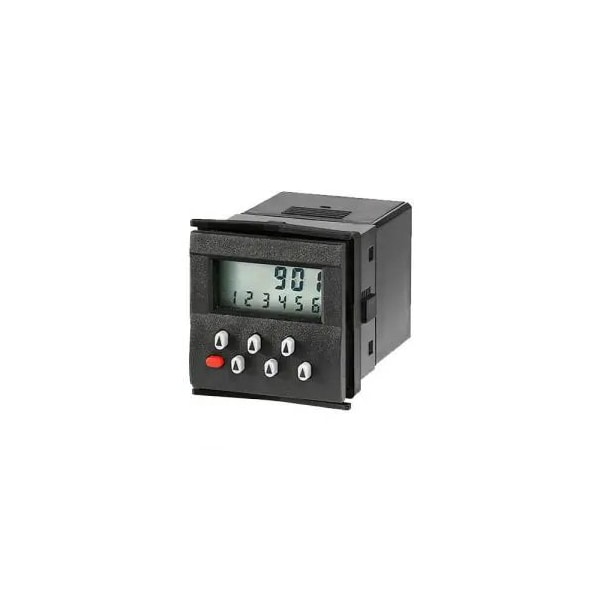

Trumeter 6D LCD Batt Pow Prst Ctr 12-250 AC/DC Kat-SP - main

6D LCD Batt Pow Prst Ctr 12-250 AC/DC

  • Mfr # Kat-SP

  • Zoro # G310457416

product price: $347.99
/ea
Free Shipping & Returns

Key Features

Mounting
Clip
Reset Type
Push Button
Display
LCD
Number of Digits
6
Character Height
0.157 in Bottom, 0.275 in Main
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
Kat-SP
Zoro #
G310457416
UPC #
5060144887436
Country of Origin
Germany

Dimensions

Character Height
0.157 in Bottom, 0.275 in Main
Width
2.36 in
Height
2.95 in
Cutout DIN Size
1/8

Details

Item
Preset Counter
Mounting
Clip
Reset Type
Push Button
Display
LCD
Number of Digits
6
Output Rating
2 A @ 30VDC (Relay)
Prescaling Range
0 to 999,9999
Connector Type
7 Screw Terminals
Min. On/Off Pulse
50 msec
IP Rating
IP65
Accuracy
+/-100
Output
Relay
Power Required
(2) 3V Lithium Battery
Preset
Yes
Input Signal
100kOhm Input Impedance, Optocoupled; Open or 0 to 2V (Low); 12 to 250VAC/VDC High
Standards
UL
Max. Counts per Second
35 Hz
Special Features
Ideal for Applications such as Batch Counting and Control, Coil Winding and Wire Cutting, Length Measurement, Packing-Line Control, Stop/Start Control and Numerical Position Control
Fits
1/16 DIN
NEMA Rating
4
Counts per Second - Maximum
500
Display Features
High Contrast
Mounting Style
Panel
Counter Display Type
LCD
Digit Color
Black

Description

Preset Counter, Number of Digits 6, LCD Display, Character Height 0.157 in Bottom, 0.275 in Main, Max. Counts per Second 35 Hz, Input Signal 100kOhm Input Impedance, Optocoupled; Open or 0 to 2V (Low); 12 to 250VAC/VDC High, Output Rating 2 A @ 30VDC (Relay), Output Relay, Mounting Clip, Diameter Not Applicable, Height 2.95 in, Width 2.36 in, Preset Yes, Power Required (2) 3V Lithium Battery, Min. On/Off Pulse 50 msec, Prescaling Range 0 to 999,9999, Reset Type Push Button
