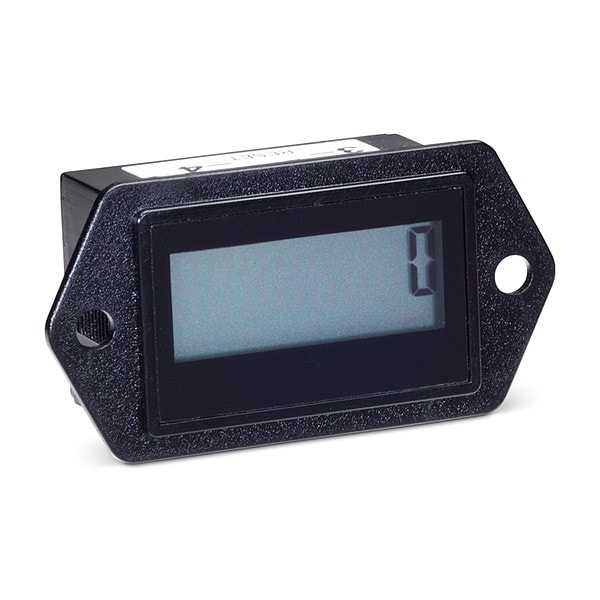

AC/DC Ctr, 2-Hole 1/4" Spd Mr.

Mfr # 3400-0010
Zoro # G010516697

41.69

Key Features

Mounting

2-Hole

Reset Type

Remote Signal

Display

LCD

Number of Digits

Connector Type

Spade Terminal

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3400-0010
Zoro #: G010516697
UPC #: 5060144885111
Country of Origin: Malaysia

Dimensions

Character Height: 0.28 in Black on Light Background
Height: 27.9 mm
Depth: 0.78 in

Details

Item: Counter
Mounting: 2-Hole
Reset Type: Remote Signal
Display: LCD
Number of Digits: 8
Connector Type: Spade Terminal
Fits: 1.476 in x 0.965 in Panel Cutout
Standards: CE Approved, cUL, UL
Power Required: Self-Powered (10 yr. Lithium Battery)
IP Rating: IP66
Accuracy: 100%
NEMA Rating: 12, 4, 4X
Input Signal: 20VAC (VIH)/10VDC (Minimum), 3VAC (VIL)/3VDC (Maximum)
Includes: (4) Machine Screws; Clip; Nuts and Washers
Preset: Yes
Special Features: They are Totally Sealed with the Optional Gasket and have a High-Visibility Polarized Lens
Max. Counts per Second: 40
Digit Color: Black
Display Features: High Contrast
Counter Display Type: LCD
Counts per Second - Maximum: 40
Mounting Style: Panel

Description

Counter, Number of Digits 8, LCD Display, Character Height 0.28 in Black on Light Background, Max. Counts per Second 40, Input Signal 20VAC (VIH)/10VDC (Minimum), 3VAC (VIL)/3VDC (Maximum), Output Rating Not Applicable, Mounting 2-Hole, Diameter Not Applicable, Height 27.9 mm, Depth 0.78 in, Preset Yes, Power Required Self-Powered (10 yr. Lithium Battery), Reset Type Remote Signal, Connector Type Spade Terminal

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov

Hazardous material
