Trumeter

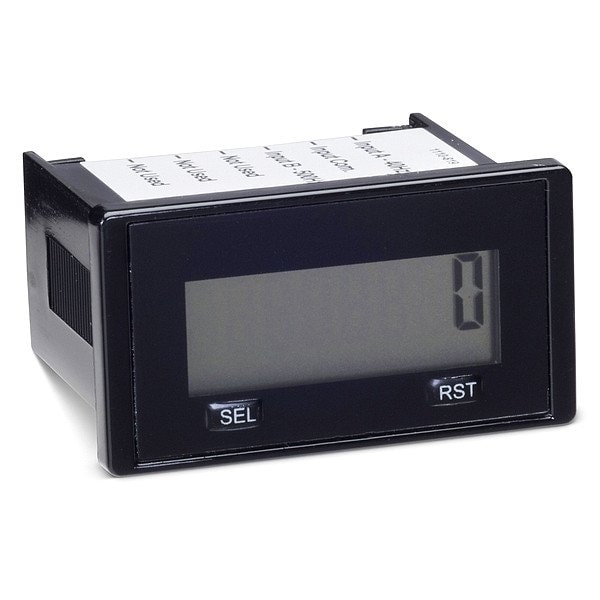

Electronic Counter, 8 Digits, LCD

product price: $40.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Accuracy 100%
  • Display LCD
  • Fits 1.79 in x 0.89 in Panel Cutout
  • Output Open-Drain MOSFET
  • Depth 1.5 in
See all product information

Product Information

Dimensions

Depth 1.5 in
Width 1.1 in
Character Height 0.32 in Black Numbers on White Background
Height 1.1 in
Length 2"

Details

Item Electronic Counter
Accuracy 100%
Display LCD
Fits 1.79 in x 0.89 in Panel Cutout
Output Open-Drain MOSFET
Standards CE, EMC Compliant EN61326:2001, European WEEE And RoHS Compliant, UL/cUL
IP Rating IP66
Preset no
Input Signal Dry Contact
Power Required Self Powered (15+ yr Lithium Battery)
Number of Digits 8
Min. On/Off Pulse 1.0 msec in High Speed Mode, 12.5 msec in Low Speed Mode
Connector Type 6 Screw Terminals
Scaler No
Output Rating 0.1A @ 30V DC
Mounting Rectangular Panel with Clip
NEMA Rating 12, 4, 4X
Reset Type Front Panel Push Button
Series 63
Interface None
Max. Counts per Second 40 Low Speed Mode, 500 High Speed Mode
Relay No
Input Voltage Lithium Battery

Description

Electronic Counter, Number of Digits 8, LCD Display, Character Height 0.32 in Black Numbers on White Background, Max. Counts per Second 40 Low Speed Mode, 500 High Speed Mode, Input Signal Dry Contact, Output Rating 0.1A @ 30V DC, Output Open-Drain MOSFET, Mounting Rectangular Panel with Clip, Height 1.1 in, Depth 1.5 in, Width 1.1 in, Series 63, Scaler No, Preset No, Power Required Self Powered (15+ yr Lithium Battery), Min. On/Off Pulse 1.0 msec in High Speed Mode, 12.5 msec in Low Speed Mode
