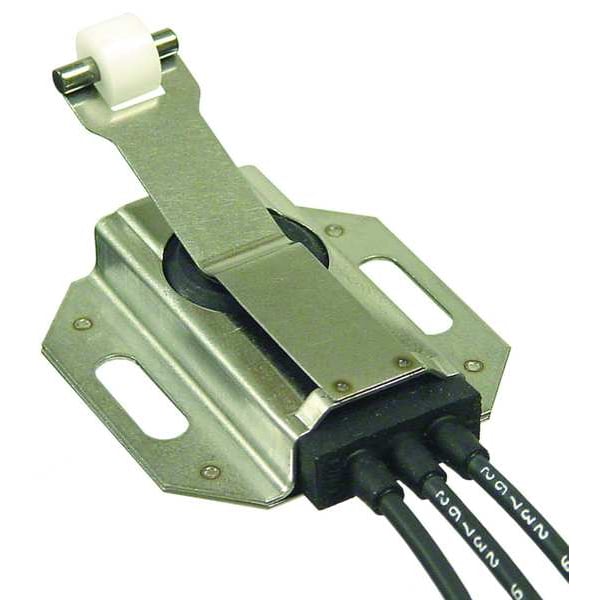

Water Proof Limit Switch, Lever, Roller, SPDT, 5A at 120V AC, Actuator Location: Top

  • Mfr # E1134-505

  • Zoro # G1864861

product price:  $78.45
/ea

Key Features

Basic Actuator Style - Limit Switch
Lever
Actuator Style - Limit Switch
Lever, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 120V
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
E1134-505
Zoro #
G1864861
UPC #
-
Country of Origin
United States

Dimensions

Body Depth - Limit Switch
0.97 in
Body Height - Limit Switch
1.53 in
Body Width - Limit Switch
1.75 in
Depth
1.75"
Height
1.01"
Arm Width
0.6 in
Actuator Length - Limit Switch
0.56 in
Roller Dia.
0.38 in
Roller Width
0.38 in
Width
1.75"
Actuator Length
0.56"
Arm Depth
0.87 in
Body Width
1.75 in
Roller Diameter
0.38 in
Overall Width
1.75 in
Mounting Hole Diameter
0.2 in
Overall Depth
1.75 in
Body Height
1.53 in
Arm Length - Maximum
1.36 in
Body Depth
1.75 in

Details

Item
Water Proof Limit Switch
Basic Actuator Style - Limit Switch
Lever
Actuator Style - Limit Switch
Lever, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 120V
DC Contact Rating - Limit Switch
5A at 28V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Bottom Flange
Body Style (Limit Switch)
Miniature
Actuator Style
Roller Lever Plunger
Body Material
Stainless Steel
Number of Poles
1
Mounting Hole Spacing - Limit Switch
1.34 in
Operating Temp. Range
-40 Degrees to 185 Degrees F
AC Contact Rating
5 A @ 120 V
Travel
0.36 in Nominal
NEMA Rating
No Nema Rating
Stem Thread - Limit Switch
No Stem
Voltage Rating
120VAC/28VDC
Basic Actuator Style (Limit Switch)
Lever
Boot Sealed Actuator - Limit Switch
No
Series
E1
Arm Material
Stainless Steel
Actuator Location (Limit Switch)
Top
Limit Switch Style
Water Proof Limit Switch
DC Contact Rating
5 A @ 28 V
Boot Sealed Actuator (Limit Switch)
No
Contact Form - Limit Switch
SPDT
Roller Material
Nylon
IP Rating
IP68
Actuator Location
Top
Mounting Hole - Limit Switch
(2) 0.20 in x 0.62 in Slot
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Movement
One Way Vertical and Direction Horizontal
Amps
5
Contact Form
SPDT
Actuator Style (Limit Switch)
Roller, Lever
Electrical Connection
Flying Leads
Operating Temperature - Maximum
185 Degrees F
Number of Mounting Holes
2
Mounting Style
Bottom Flange
Directional Movement
Linear
NEMA Enclosure Rating
No Enclosure
Total Travel
0.52 in
Roller Adjustability
Fixed
Boot Sealed Actuator
No Boot Included
Arm Adjustability
Fixed
Mounting Hole Horizontal Center to Center Distance
34 mm
Hazardous Location Specification
Not Rated
Action
Momentary
Includes Actuator
Actuator Included
Operating Force - Maximum
48 ozf
Mounting Hole Vertical Center to Center Distance
41 mm
Operating Temperature - Minimum
-40 Degrees F
Roller Position
Top

Description

Limit Switch, Actuator Style - Limit Switch Lever, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 120V, DC Contact Rating - Limit Switch 5A @ 28V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 0.56 in, Body Height - Limit Switch 1.53 in, Body Width - Limit Switch 1.75 in, Body Depth - Limit Switch 0.97 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating No NEMA Rating
