Shop TRUMETER

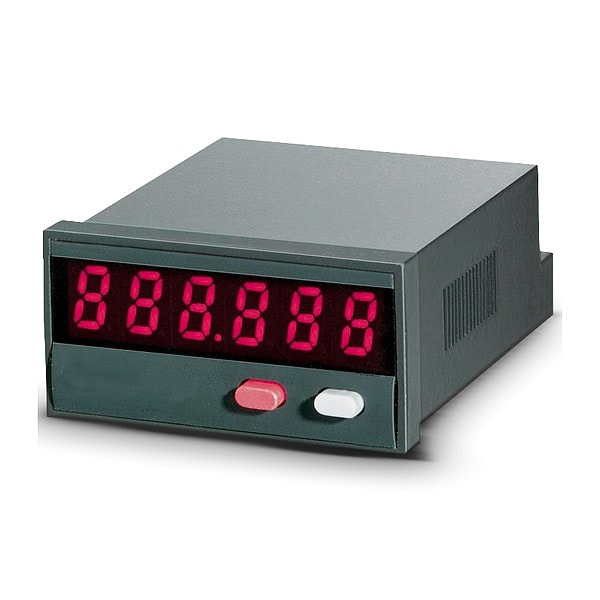

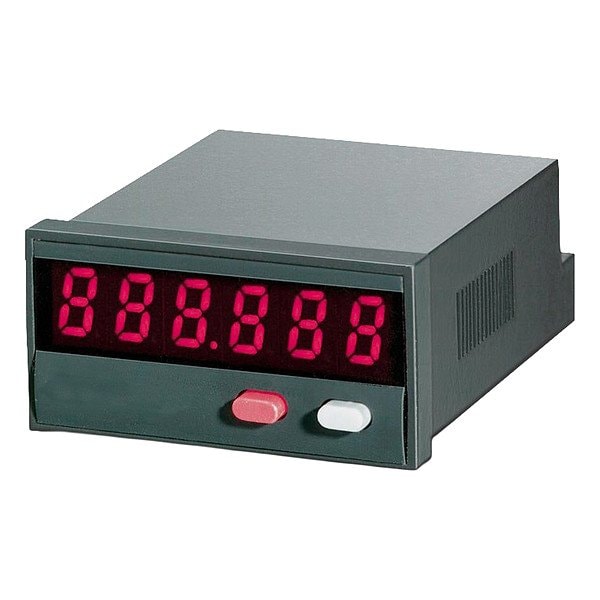

Multifunction C/T/R meter 10-30VDC powe

  • Mfr # 52UK.2

  • Zoro # G710080894

product price:
$
272.99
/ea
Free Shipping & Returns

Key Features

Mounting
Rectangular Panel with Clip or Screw
Reset Type
Push Button
Display
Red LED
Number of Digits
6
Width
1.89 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
52UK.2
Zoro #
G710080894
UPC #
5060144884602
Country of Origin
Germany

Dimensions

Width
1.89 in
Character Height
8 mm
Height
0.945 in
Overall Height
1 in
Digit Height - Maximum
0.31 in
Overall Width
2 in
Cutout DIN Size
1/8

Details

Item
LCD Counter
Mounting
Rectangular Panel with Clip or Screw
Reset Type
Push Button
Display
Red LED
Number of Digits
6
Min. On/Off Pulse
5 msec
Connector Type
Terminal Block
Fits
1/32 DIN
Special Features
The 52U is a Voltage-Powered Dual Function Counter with 4 Functions in One Device: Counter with 2 Totalizing Ranges, Totalizer and Timer, Totalizer and Frequency Meter, and Timer with 2 Time Range
Power Required
10 to 30 VDC
Accuracy
0.1%
Standards
UL
Input Signal
Input Switching Level (HTL): 0 to 0.2 x UB [VDC] (Low), 0.6 x UB to 30VDC (High), Input Switching Level at 4 to 30VDC: 0 to 2VDC (Low), 4 to 30VDC (High)
Max. Counts per Second
60 kHz
IP Rating
IP65
Input Voltage
4 to 30V DC
Mounting Style
Panel
Terminal Connection Type
Terminal Block
Digit Color
Black
Counter Display Type
LED
Counts per Second - Maximum
500
Features
Counter with 2 Totalizing Ranges, Totalizer and Timer, Totalizer and Frequency Meter, and Timer with 2 Time Range, The 52U is a Voltage-Powered Dual Function Counter with 4 Functions in One Device

Description

LCD Counter, Number of Digits 6, Red LED Display, Character Height 8 mm, Max. Counts per Second 60 kHz, Input Signal Input Switching Level (HTL): 0 to 0.2 x UB [VDC] (Low), 0.6 x UB to 30VDC (High), Input Switching Level at 4 to 30VDC: 0 to 2VDC (Low), 4 to 30VDC (High), Output Rating Not Applicable, Mounting Rectangular Panel with Clip or Screw, Diameter Not Applicable, Height 0.945 in, Width 1.89 in, Power Required 10 to 30 VDC, Min. On/Off Pulse 5 msec, Reset Type Push Button

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
