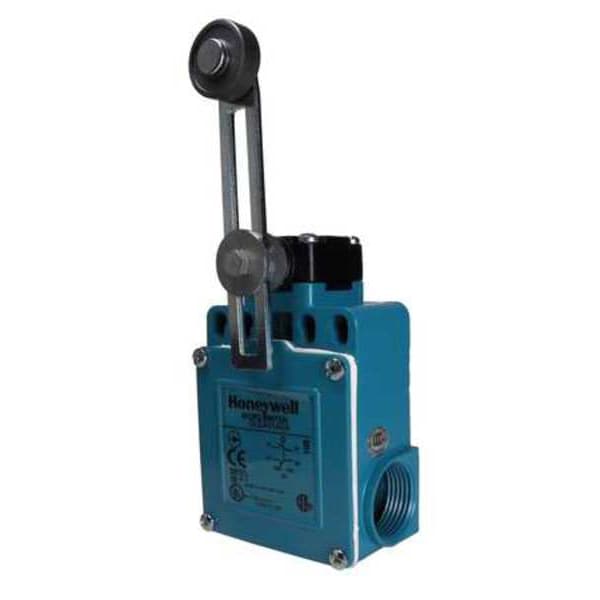

Limit Switch, Roller Lever, Rotary, 2NC/2NO, 10A at 300V AC, Actuator Location: Side

  • Mfr # GLEA24A2A

  • Zoro # G4121765

product price:
$
189.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GLEA24A2A
Zoro #
G4121765
UPC #
-
Country of Origin
Mexico

Dimensions

Height
2.37"
Body Depth - Limit Switch
1.18 in
Depth
1.18"
Width
2.56"
Roller Width
0.25 in
Body Width - Limit Switch
2.56 in
Actuator Length - Limit Switch
1.34 in to 3.11 in
Body Height - Limit Switch
2.37 in
Roller Dia.
0.75 in
Body Width
2.56 in
Mounting Hole Diameter
0.12 in
Roller Diameter
0.75 in
Body Height
2.37 in
Body Depth
1.18 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Voltage Rating
300VAC/250VDC
Body Material
Metal
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole - Limit Switch
(4) 0.12 in dia
Basic Actuator Style (Limit Switch)
Rotary
Series
GLE
Stem Thread - Limit Switch
No Stem
Number of Poles
2
Travel
Differential Travel 8 Degrees , Maximum Pretravel 26 Degrees , Minimum Over Travel 49 Degrees , Operating Position 26 Degrees
Contact Form
2NO/2NC
Wiring Entry
1/2 in NPT
Actuator Style (Limit Switch)
Rotary, Roller Lever
IP Rating
IP66
Movement
CCW, CW
Operating Force
1.5 in-lb
Standards
CCC, CE, CSA, UL Listed
Limit Switch Style
General Purpose Limit Switch
DC Contact Rating
10 A @ 250 V
Contact Form - Limit Switch
2NC/2NO
Actuator Style
Roller Lever Plunger
Roller Material
Nylon
Boot Sealed Actuator - Limit Switch
No
Actuator Location (Limit Switch)
Side
Mounting Hole Pattern - Limit Switch
4 Hole Inline
Amps
10
Operating Temp. Range
-40 Degrees to 185 Degrees F
Body Style (Limit Switch)
Miniature
Electrical Connection
Screw Terminals
Actuator Location
Side
NEMA Rating
1, 12, 13, 4
AC Contact Rating
10 A @ 300 V
Mounting Hole Spacing - Limit Switch
0,87 in, 1.65 in
Arm Material
Metal
Differential Travel
8 Degrees
Boot Sealed Actuator
No Boot Included
Mounting Hole Vertical Center to Center Distance
22 mm
Operating Torque - Maximum
1.5 in-lb
Number of Mounting Holes
4
Operating Temperature - Minimum
-40 Degrees F
Directional Movement
CCW/CW
Mounting Style
Surface
Mounting Hole Horizontal Center to Center Distance
42 mm
NEMA Enclosure Rating
1, 12, 13, 4
Overtravel
49 Degrees
Body Configuration
Non Plug-In
Operating Temperature - Maximum
185 Degrees F
Pretravel
26 Degrees

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 2NC/2NO, Actuator Length - Limit Switch 1.34 in to 3.11 in, Body Height - Limit Switch 2.37 in, Body Width - Limit Switch 2.56 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 4
