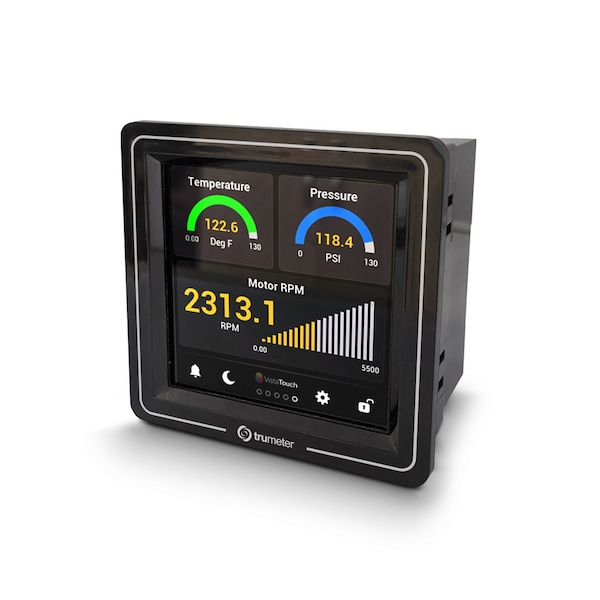

Vista Touch Process Meter, 12-24V AC/DC, 10W, HD Graphical, Touchscreen, Vista Touch Series

  • Mfr # VT-PROC-LV

  • Zoro # G721890000

product price:
$
581.99
/ea
Free Shipping & Returns

Key Features

Accuracy
0.001
Display
LCD Touch Screen
Mounting
Panel
Supply Voltage
12-24V AC/DC, 50-60Hz, 10W
Cutout Size
3.62 in x 3.62 in (92mm x 92mm)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VT-PROC-LV
Zoro #
G721890000
UPC #
-
Country of Origin
Malaysia
Accuracy
0.001
Display
LCD Touch Screen
Mounting
Panel
Supply Voltage
12-24V AC/DC, 50-60Hz, 10W
Storage Temp. Range
-4°F to 158°F (-20°C to 70°C)
Nema Rating
NEMA250 and UL50 and Type12
Port Type
Ethernet, RS485
Supply Variation
0 to +10% of supply voltage
Display Resolution
480 x 480 px
Operating Temp. Range
-4°F to 140°F (-20°C to 60°C)
Communication
Modbus RTU; Modbus TCP; Trumeter Cloud
Functions
+, -, x, ÷, x²
IP Rating
IP65
Series
Vista Touch
Standards
CE, RoHS, UL, cUL

Description

The Trumeter Vista Touch Process Meter (LV) is designed to consolidate multiple signals into a single monitoring hub in process applications. It supports up to eight sensors (four 4-20mA and four 0-10V) and features four programmable math functions as well as advanced non-linear scaling, enabling precise calculations and compensation for complex sensor behaviors. Delivering 0.1% accuracy across the full input range, the LV model runs on 12-24V AC/DC and includes access to Trumeter Cloud for secure remote monitoring, data logging, and instant alerts via email or optional SMS. A vibrant 70mm x 70mm HD touchscreen offers intuitive setup, custom scaling, alarm messages, and clear visualization with pre-configured gauge designs. Connectivity is built-in, with Modbus RTU/TCP, two form C relays, and a USB port for cloning configurations or local datalogging. With industry-standard 1/4 DIN mounting and modular quick-connect terminals, integration into panels and equipment is fast and straightforward.
