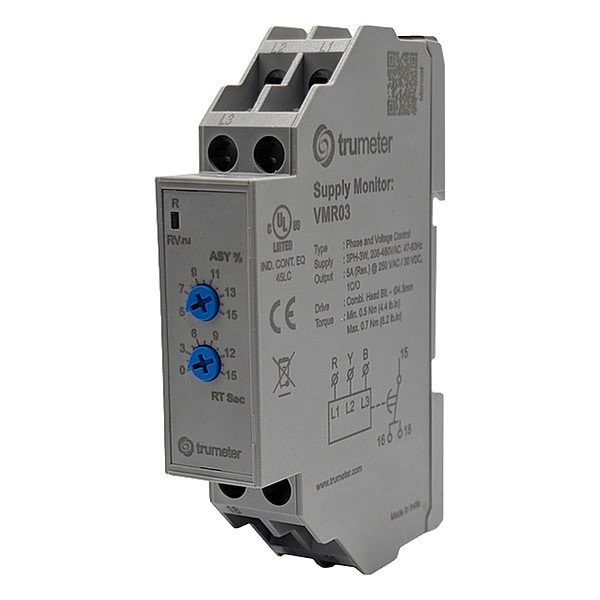

Voltage Monitor Relay
Mfr # VMR03
Zoro # G922838870
product price:Â
$
50.29
/ea
Key Features
Standards
C-UL, CE, UL
Weight
2.47 oz
Electrical Operating Durability
100,000
IP Rating
IP20, IP30
Maximum Operating Temperature
140 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- VMR03
- Zoro #
- G922838870
- UPC #
- 5061089360190
- Country of Origin
- India
- Standards
- C-UL, CE, UL
- Weight
- 2.47 oz
- Electrical Operating Durability
- 100,000
- IP Rating
- IP20, IP30
- Maximum Operating Temperature
- 140 Degrees F
- Series
- VMR
- Pick Up Range
- 183 to 528V AC
- Drop-Out Range
- 5% to 15%
- Contact Form
- SPDT
- Contact Rating (DC)
- 5 A @ 30V DC
- Number of Pins
- 6
- Base Shape
- Square
- Item
- Voltage Sensing Relay
- Adjustment Method
- Dip Switch
- Frequency
- 50/60 Hz
- Input Voltage
- 208 to 480V AC
- Monitored Parameters
- Overvoltage, Undervoltage
- Minimum Operating Temperature
- 5 Degrees F
- Mechanical Operating Durability
- 3,000,000
- Mounting Style
- DIN Rail
- Trip Delay
- 0.5 to 15 sec
- Contact Rating (AC)
- 5 A @ 240V AC (Resistive)
- Power Consumption
- 3 VA
- Current Rating
- 5 A
Description
Voltage Sensing Relay, Base Shape Square, Current Rating 5 A, Input Voltage 208 to 480V AC, Pick Up Range 183 to 528V AC, Drop-Out Range 5 Percent to 15 Percent, Flat Pin Width Not Applicable, Monitored Parameters Overvoltage, Undervoltage, Number of Pins 6, Contact Form SPDT, Contact Rating (AC) 5 A @ 240V AC (Resistive), Contact Rating (DC) 5 A @ 30V DC, IP Rating IP20, IP30, Mounting Style DIN Rail, Adjustment Method Dip Switch, Body Depth 3.54 in, Body Height 2.3 in, Body Width 0.71 in
