Tsubaki

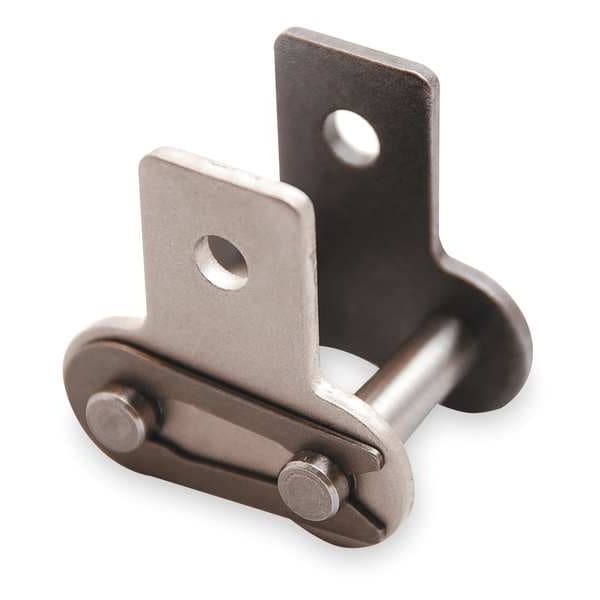

Connecting Link, SK-1 Attachment, PK5

product price: $50.15
/pk 5, $10.03/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type SK-1
  • Industry Chain Size 60
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 3/4 in
  • Number of Strands Single
See all product information

Product Information

Dimensions

Industry Chain Size 60
Chain Link Overall Width 1.087 in
Chain Roller Dia. 0.469 in
Pin Length 1.087 in
Width Between Roller Link Plates (In.) 0.500
Outside Pin Dia. 0.234 in
Roller Link Plate Height (In.) 0.713
Length (In.) 0.750
Roller Dia. (In.) 0.469
ANSI Chain Size 60
Roller Link Plate Height 0.713 in
Pin Length (In.) 1.087
Overall Width (In.) 1.087
Inside Pin Dia. 0.234 in
Outside Pin Dia. (In.) 0.234
Width Between Roller Link Plates 0.5 in
Extended Pin Diameter 0.234 in
Plate Height 0.713 in
Roller Diameter 15/32 in
Chain Overall Width 1.087 in

Details

Roller Chain Link Item Attachment Link
Roller Chain Link Type SK-1
Chain Link Material Carbon Steel
Industry Chain Pitch 3/4 in
Number of Strands Single
Max. Allowable Load 1,410 lb
Item Attachment Link
Max. Allowable Load (Lb.) 1410
Pin Link Plate Thickness 0.094 in
Connecting End to Center Line 0.581 in
Temp. Range 15 Degrees to 300 Degrees F
Type SK-1 Attachment
Connecting End to Center Line (In.) 0.581
Rivet End to Center Line (In.) 0.506
Pin Type Riveted
Rivet End to Center Line 0.506 in
Pin Link Plate Thickness (In.) 0.094
Lubrication SAE 10 to SAE 50
Tensile Strength 9,040 lb/in
Tensile Strength (Lb.) 9040
Material Steel
Agency Compliance American National Standards Institute (ANSI)
Pitch 3/4 in
Finish Plain
Plate Thickness 0.5 in
Minimum Operating Temperature 15 Degrees F
Maximum Operating Temperature 300 Degrees F
Pin Contruction Riveted Pin
Chain Number 60
Centerline to Attachment End 0.581 in
Number of Tab Holes 1
Link Type Attachment Link
Centerline to Hole Center 0.506 in
Standards ANSI
Attachment Type Tab
Attachment Number SK-1

Description

Attachment Link, Attachment Number SK-1, Attachment Type Tab, Material Steel, Chain Overall Width 1.087 in, Chain Number 60, Roller Diameter 15/32 in, Finish Plain, Pitch 3/4 in, Link Type Attachment, Centerline to Attachment End 0.581 in, Centerline to Hole Center 0.506 in, Extended Pin Diameter 0.234 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin, Plate Height 0.713 in
