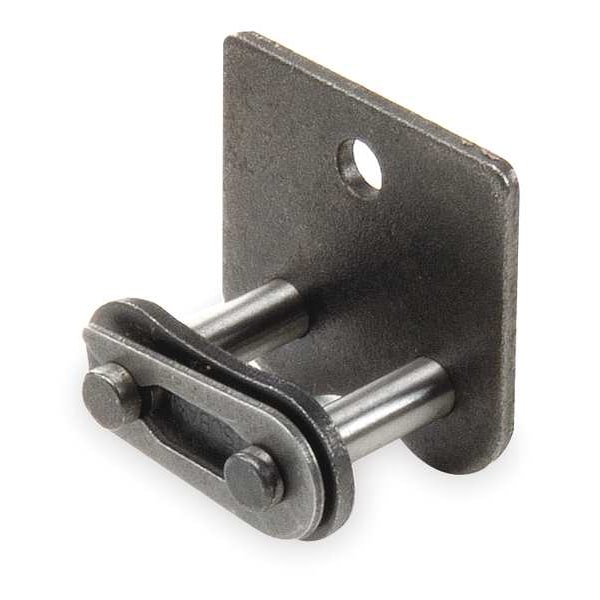

Connecting Link, WSA-1 Attachment, PK5
Mfr # 40WSA1CL
Zoro # G1339913
product price: $27.99
/pk 5, $5.60/eaKey Features
Roller Chain Link Item
Attachment Link
Roller Chain Link Type
WSA-1
Industry Chain Size
40
Chain Link Material
Carbon Steel
Industry Chain Pitch
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
40WSA1CL
Zoro #
G1339913
UPC #
-
Country of Origin
Japan
Dimensions
Industry Chain Size
40
Chain Link Overall Width
0.717 in
Chain Roller Dia.
0.312 in
Roller Dia. (In.)
0.312
Pin Link Plate Thickness (In.)
0.060
Length (In.)
0.500
Inside Pin Dia.
0.156 in
Pin Length (In.)
0.717
Outside Pin Dia. (In.)
0.156
Width Between Roller Link Plates
0.312 in
ANSI Chain Size
40
Overall Width (In.)
0.717
Outside Pin Dia.
0.156 in
Roller Link Plate Height (In.)
0.472
Pin Link Plate Thickness
0.06 in
Width Between Roller Link Plates (In.)
0.312
Pin Length
0.717 in
Roller Link Plate Height
0.472 in
Plate Height
0.472 in
Chain Overall Width
0.717 in
Roller Diameter
19/64 in
Plate Thickness
0.312 in
Extended Pin Diameter
0.156 in
Description
Attachment Link, Attachment Number WSA-1, Attachment Type Wide Contour Tab, Material Steel, Chain Overall Width 0.717 in, Chain Number 40, Roller Diameter 19/64 in, Finish Plain, Pitch 1/2 in, Link Type Attachment, Centerline to Attachment End 0.392 in, Centerline to Hole Center 0.325 in, Extended Pin Diameter 0.156 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Number of Tab Holes 1, Pin Contruction Riveted Pin
