Shop TSUBAKI

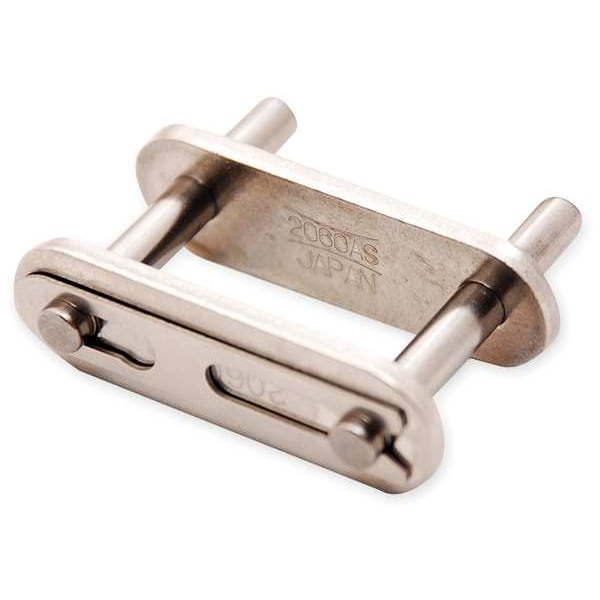

Connecting Roller Link, D-3 Attachment

  • Mfr # C2050ASD3CL

  • Zoro # G3301672

product price:  $21.99
/ea

Key Features

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-3 Conveyor
Industry Chain Size
C2050
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C2050ASD3CL
Zoro #
G3301672
UPC #
-
Country of Origin
Japan

Dimensions

Industry Chain Size
C2050
Chain Link Overall Width
0.878 in
Chain Roller Dia.
0.4 in
Pin Link Plate Thickness (In.)
0.080
Width Between Roller Link Plates
0.375 in
Width Between Roller Link Plates (In.)
0.375
Roller Dia. (In.)
0.400
Pin Length (In.)
0.875
Pin Link Plate Thickness
0.08 in
Outside Pin Dia.
0.2 in
Outside Pin Dia. (In.)
0.200
Roller Link Plate Height (In.)
0.591
Overall Width (In.)
0.878
Roller Link Plate Height
0.591 in
ANSI Chain Size
C2050AS
Length (In.)
1.250
Pin Length
0.875 in
Inside Pin Dia.
0.2 in
Plate Thickness
0.08 in
Chain Overall Width
0.878 in
Extended Pin Diameter
0.2 in
Inside Width
3/8 in
Plate Height
0.591 in
Roller Diameter
25/64 in

Details

Roller Chain Link Item
Attachment Link
Roller Chain Link Type
D-3 Conveyor
Chain Link Material
600 Stainless Steel
Industry Chain Pitch
1 1/4 in
Number of Strands
Single
Rivet End to Center Line (In.)
0.406
Lubrication
SAE 10 to SAE 50
Temp. Range
-40 Degrees to 750 Degrees F
Max. Allowable Load (Lb.)
231
Agency Compliance
American National Standards Institute (ANSI)
Rivet End to Center Line
0.406 in
Item
Attachment Link
Pitch
1 1/4 in
Connecting End to Center Line
0.469 in
Connecting End to Center Line (In.)
0.469
Type
D-3 Attachment
Material
Stainless Steel
Pin Type
Riveted
Max. Allowable Load
231 lb
Finish
Plain
Chain Construction
Riveted Pin
Pin Projection
0.469 in
Standards
ANSI
Maximum Operating Temperature
750 Degrees F
Pitch Type
Double Pitch
Chain Number
C2050
Centerline to Attachment End
0.833 in
Minimum Operating Temperature
-40 Degrees F
Working Load Limit
970 lb
Heavy Series
No
Material Grade
600
Number of Pins Per Plate
2
Pin Contruction
Riveted Pin
Link Type
Attachment
Attachment Type
Pin
Attachment Number
D-3

Description

Attachment Link, Attachment Number D-3, Attachment Type Pin, Material Stainless Steel, Chain Overall Width 0.878 in, Chain Number C2050, Roller Diameter 25/64 in, Finish Plain, Pitch 1 1/4 in, Link Type Attachment, Centerline to Attachment End 0.833 in, Centerline to Hole Center Not Applicable, Chain Construction Riveted Pin, Extended Pin Diameter 0.2 in, Heavy Series No, Inside Width 3/8 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F
